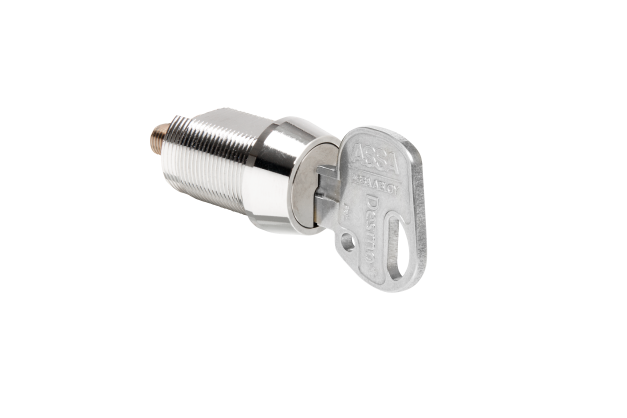

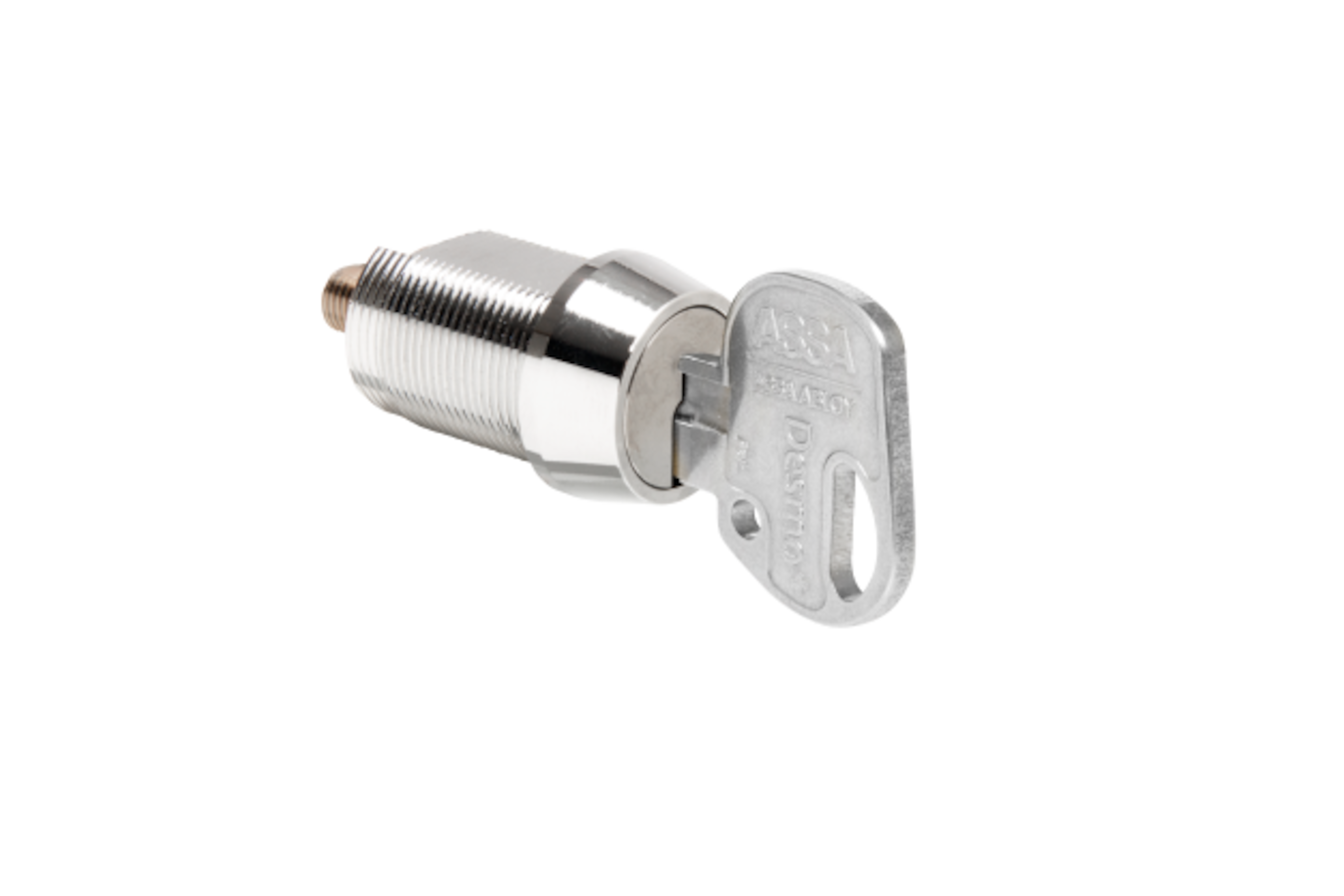

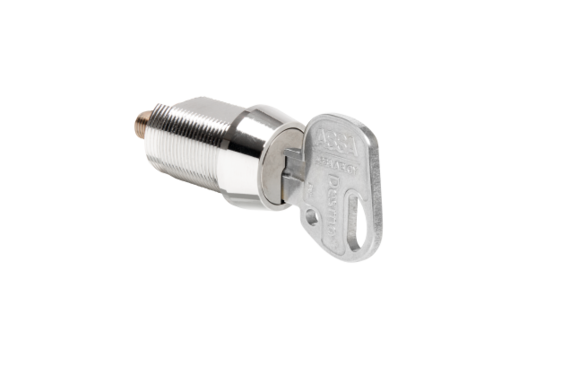

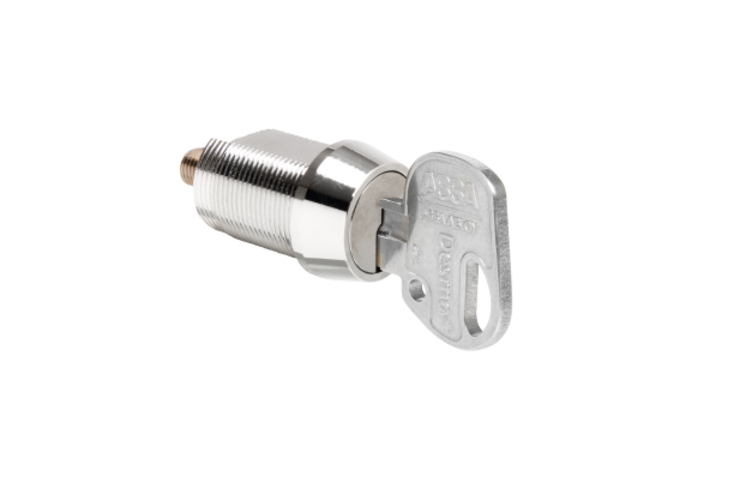

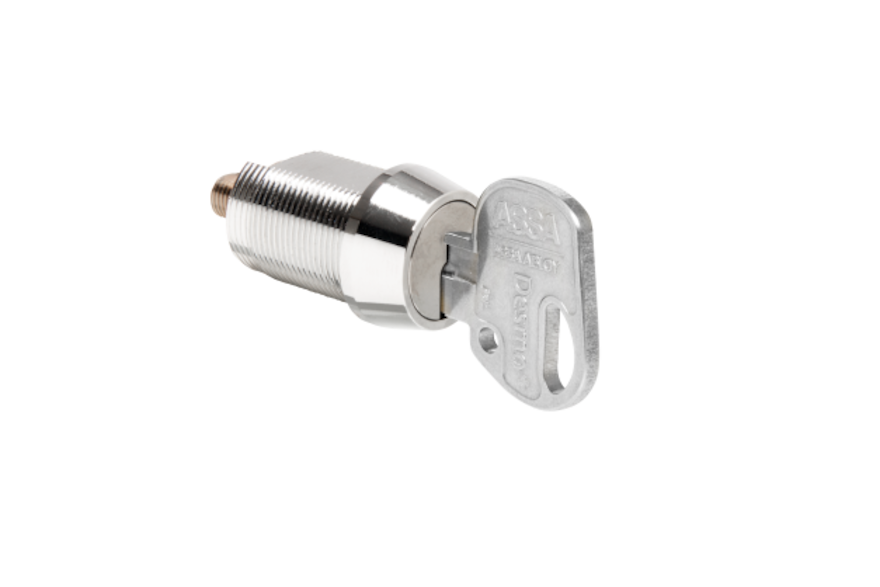

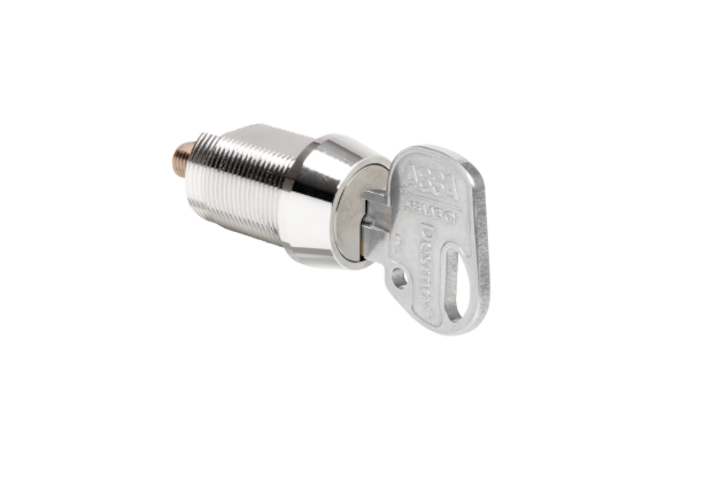

Camlock AD393

Application

Desmo+ Camlock 7/8" to be used on doors with thickness up to 13mm with 16/19 hole preparation.

Features

• The design is based on direct driven pins without springs, which creates a virtually friction free movement and high durability.
• To be used on doors with doorthickness up to 13mm.

Function

• The key is rotated 90° and can only be removed when the catch is in locked position. Double key entry available on request.
• Right handed as standard and left handed on request.
• NOTE! The tail is M7/5.5mm and standard Assa catches cannot be used with the AD series.

Material

Cylinder made of chrome plated brass and keys made of nickel silver.
