KDM

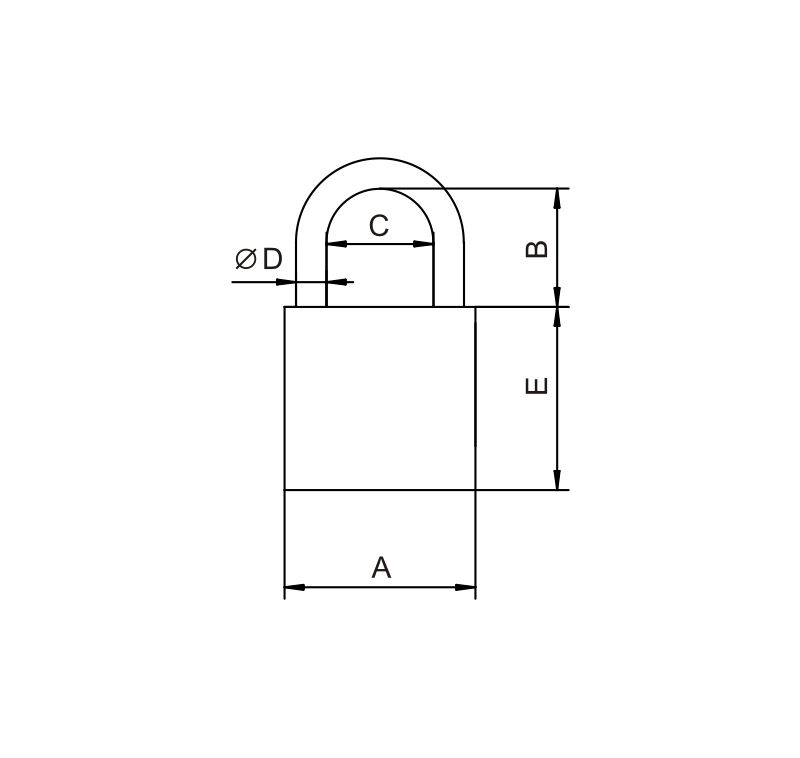

| Product code | Dimensions (mm) | ||||
| A | B | C | D | E | |
| KD40M | 40 | 22,5 | 21 | 7 | 33,5 |
| KD50M | 50 | 34 | 28 | 8 | 33,5 |
| KD60M | 60 | 35 | 37 | 9 | 35 |
| KD41M | 40 | 48 | 21 | 7 | 33,5 |
| KD51M | 50 | 63 | 28 | 8 | 33,5 |
| Main features | |
| Material | brass |
| Padlock type | self-latching |
| Certification | No |
| Security code card | No |
| Available colors | brass |
| Number of keys | 3 |
| Improved resistance to atmospheric conditions | No |
| Compatible with single-key systems | Yes |
| Compatible with Master Key systems | No |
