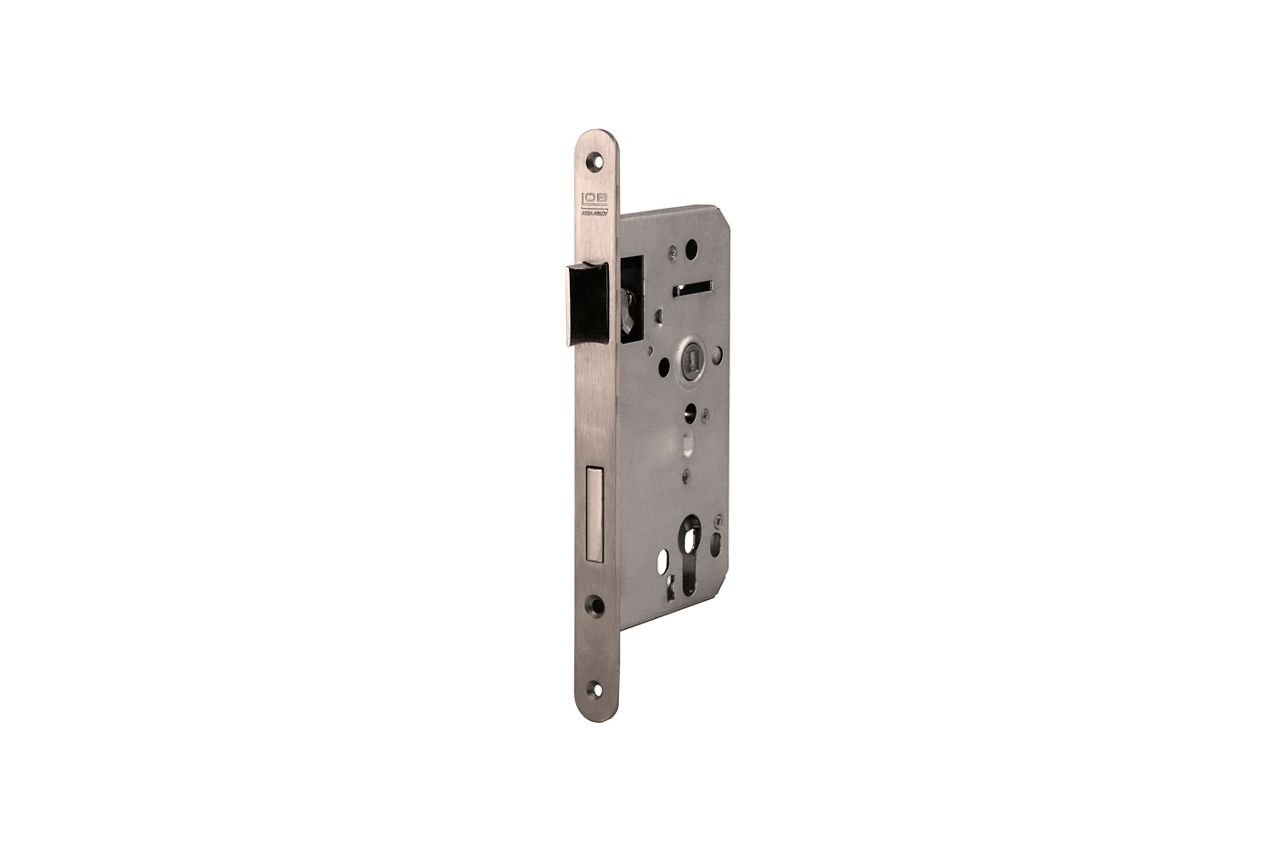

LOB Z755

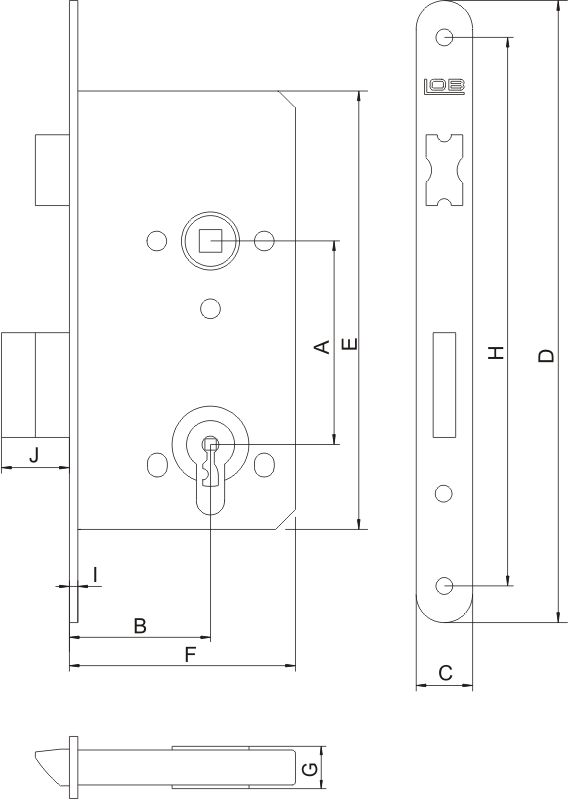

| Product code | Dimensions (mm) | |||||||||
| A | B | C | D | E | F | G | H | I | J | |
| Z755B | 72 | 55 | 20 | 235 | 165 | 85 | 15 | 209 | 3 | 2x10 |
| Z755Z | 72 | 55 | 20 | 235 | 165 | 85 | 15 | 209 | 3 | 2x10 |
| Z755C | 72 | 55 | 20 | 235 | 165 | 85 | 15 | 209 | 3 | 10 |
| Main features | |
| Available colors | yellow zinc, other colors available on request |
| Available types | cylinder (B), strike (Z), WC (C) |
| Mounting side | adaptable |
