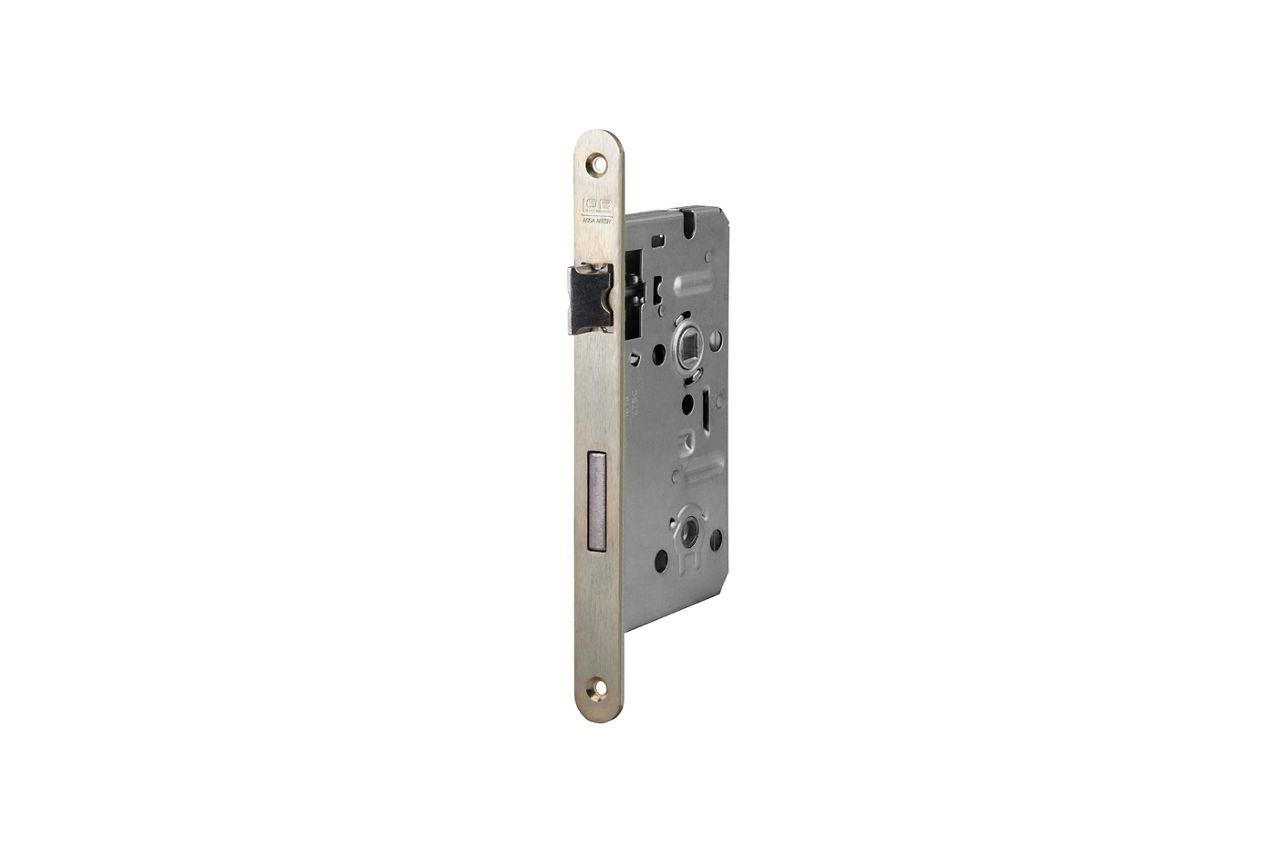

LOB Z75

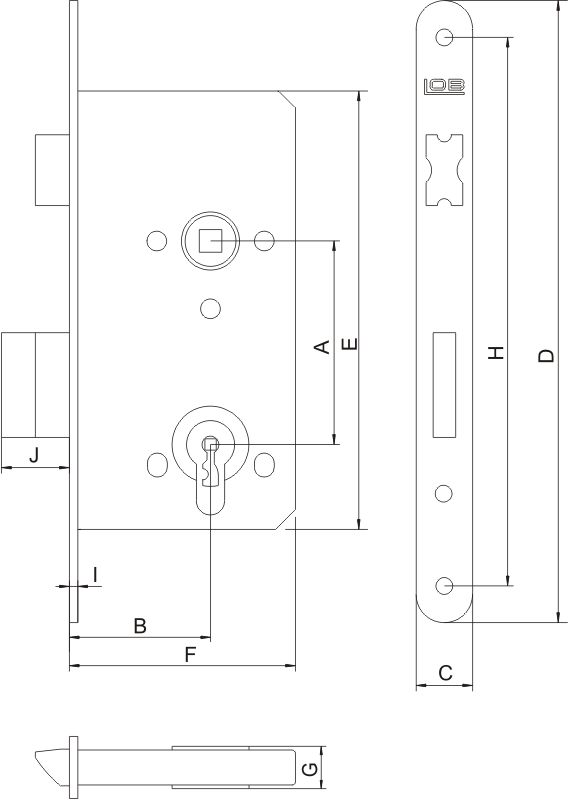

| Product code | Dimensions (mm) | |||||||||
| A | B | C | D | E | F | G | H | I | J | |
| Z75B | 72 | 50 | 20 | 220 | 155 | 80 | 15 | 194 | 3 | 2x12 |
| Z75Z | 72 | 50 | 20 | 220 | 155 | 80 | 15 | 194 | 3 | 2x12 |
| Z75C | 72 | 50 | 20 | 220 | 155 | 80 | 15 | 194 | 3 | 12 |
| Main features | |
| Available colors | yellow zinc, other colors available on request |
| Available types | cylinder (B), strike (Z), WC (C) |
| Mounting side | adaptable |
