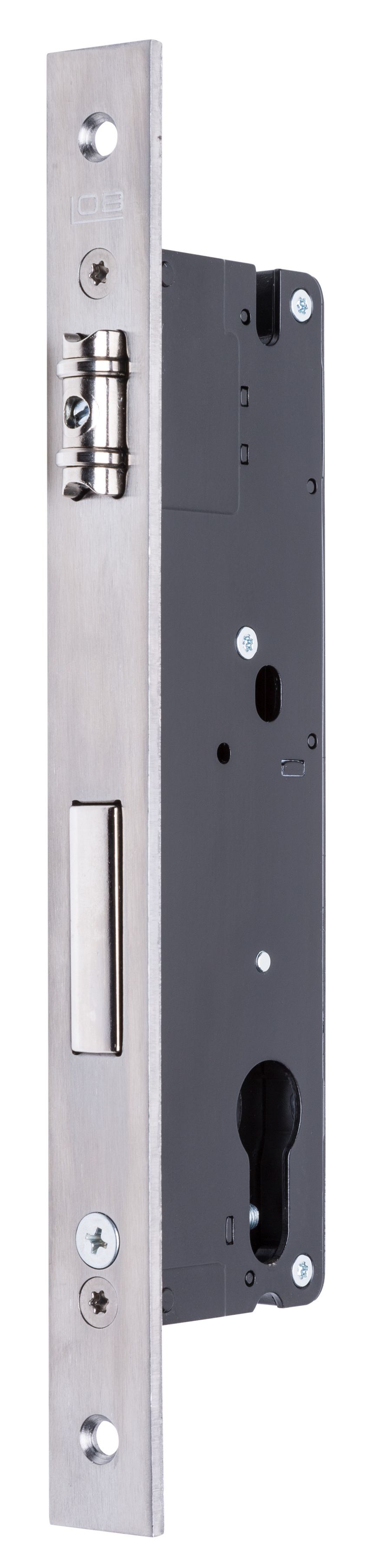

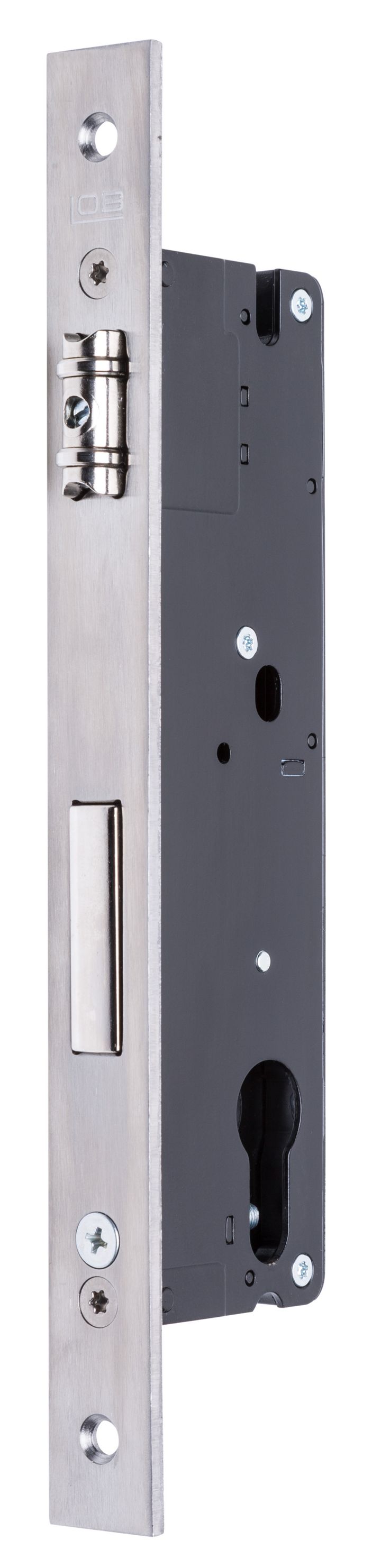

Roller narrow lock

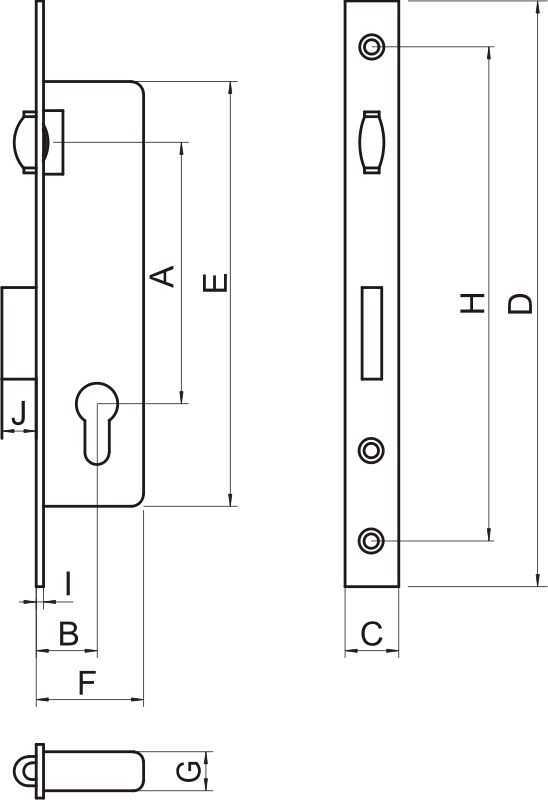

| Type of strike plate | Product code | Dimensions (mm) | ||||||||||
| A | B | C | D | E | F | G | H | I | J | K | ||
| flat | Z025R-2-K1 | 114 | 25 | 22 | 240 | 174 | 42 | 16 | 210 | 3 | 16 | - |
| Z030R-2-K1 | 30 | 47 | ||||||||||
| Z035R-2-K1 | 35 | 52 | ||||||||||

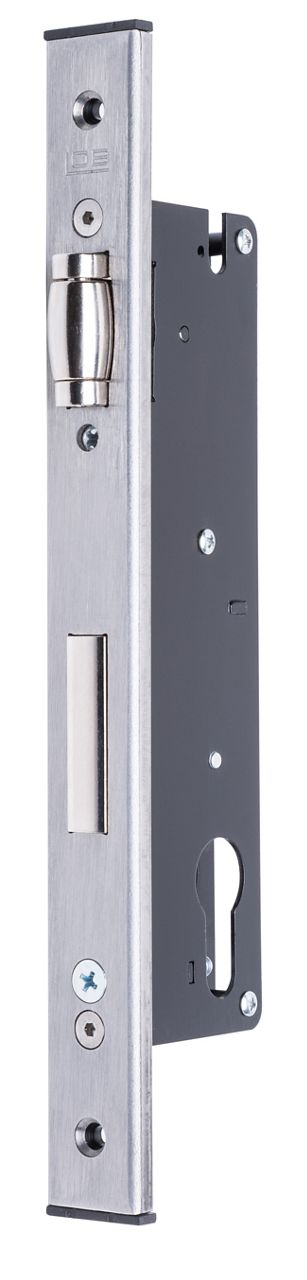

| u-shaped | Z030R-2UK1 | 30 | 24 | 47 | 6.5 | 2 | ||||||
| Z035R-2UK1 | 35 | 52 | ||||||||||
