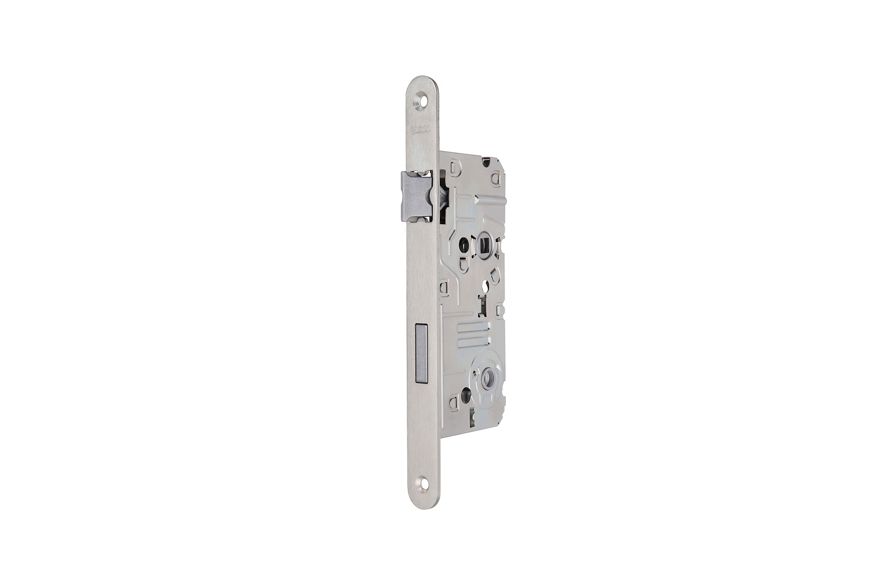

YETI Z7BY

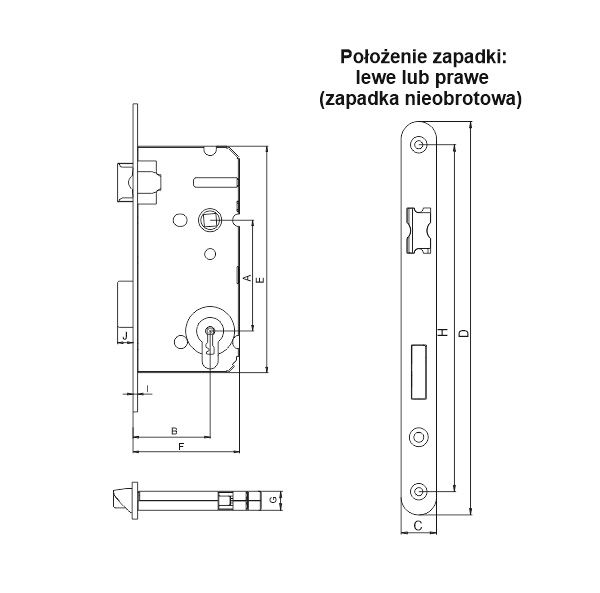

| Product code | Dimensions(mm) | |||||||||
| A | B | C | D | E | F | G | H | I | J | |
| Z7BBY | 72 | 50 | 20 | 220 | 147 | 70 | 14 | 194 | 3 | 10 |
| Z7BZY | 72 | 50 | 20 | 220 | 147 | 70 | 14 | 194 | 3 | 10 |
| Z7BCY | 72 | 50 | 20 | 220 | 147 | 70 | 14 | 194 | 3 | 10 |
| Main features | |
| Available colors | white zinc |
| Available types | cylinder (B), strike (Z), WC (C) |
| Mounting side | left or right |
