    DRAGON XT

    • LOB
    • six-pin lock insert
    • available in lengths from 30/30
    • maximum grade of attack resistance (manipulation, drilling and cylinder extraction)
    • maximum grade of resistance to corrosion and temperature
    • can be used in fire-proof doors
    • key profile registered with the Polish Patent Office
    • stronger insert featuring additional drill-proof safety elements
    • min. endurance 100 000 cycles
    • made in Poland

    1 of 5

    Main features

    Certification

    Grade 6

    Security code card

    Yes

    Available colors

    nickel, brass

    number of keys

    4



    Product is compliant with the provisions of standard PN-EN 1303:2015-07:

    Category of use
    (1)

    Durability
    (4-6)

    Door mass
    (0)

    Fire resistance
    (0-B)

    Safety
    (0)

    Resistance to corrosion and temperature (0-C)

    Key related security
    (0-6)

    Attack resistance
    (0-D)

    1

    6

    0

    B

    0

    C

    6

    D

    Resistance to burglary: grade C acc. to ITB Warsaw technical criteria.

    Short indexType of insert

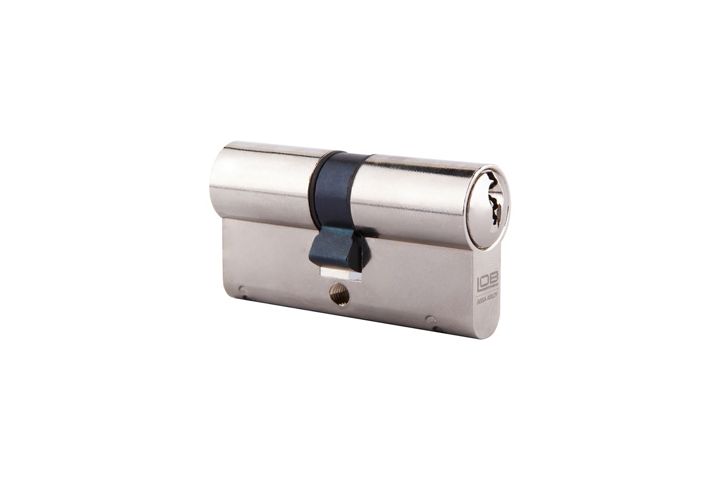

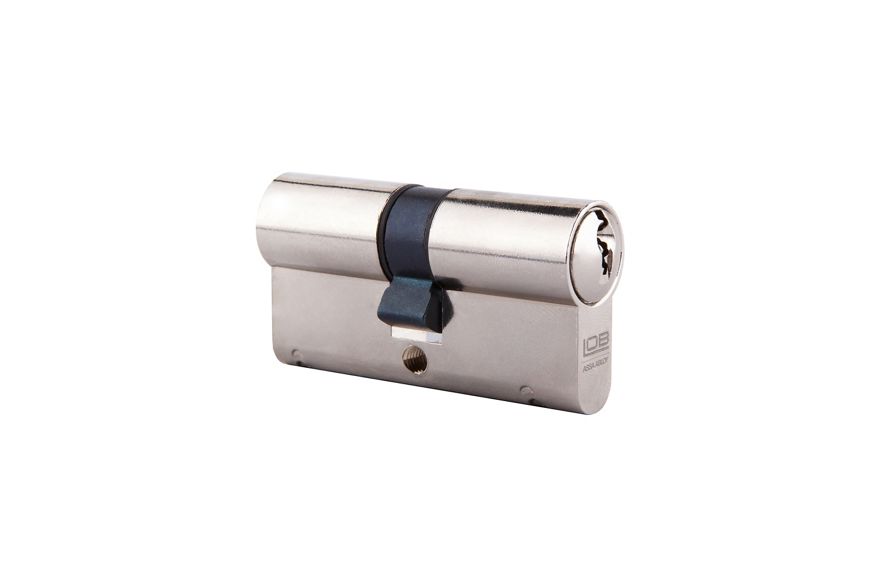

    WP600DRAGON XT double-sided cylinder

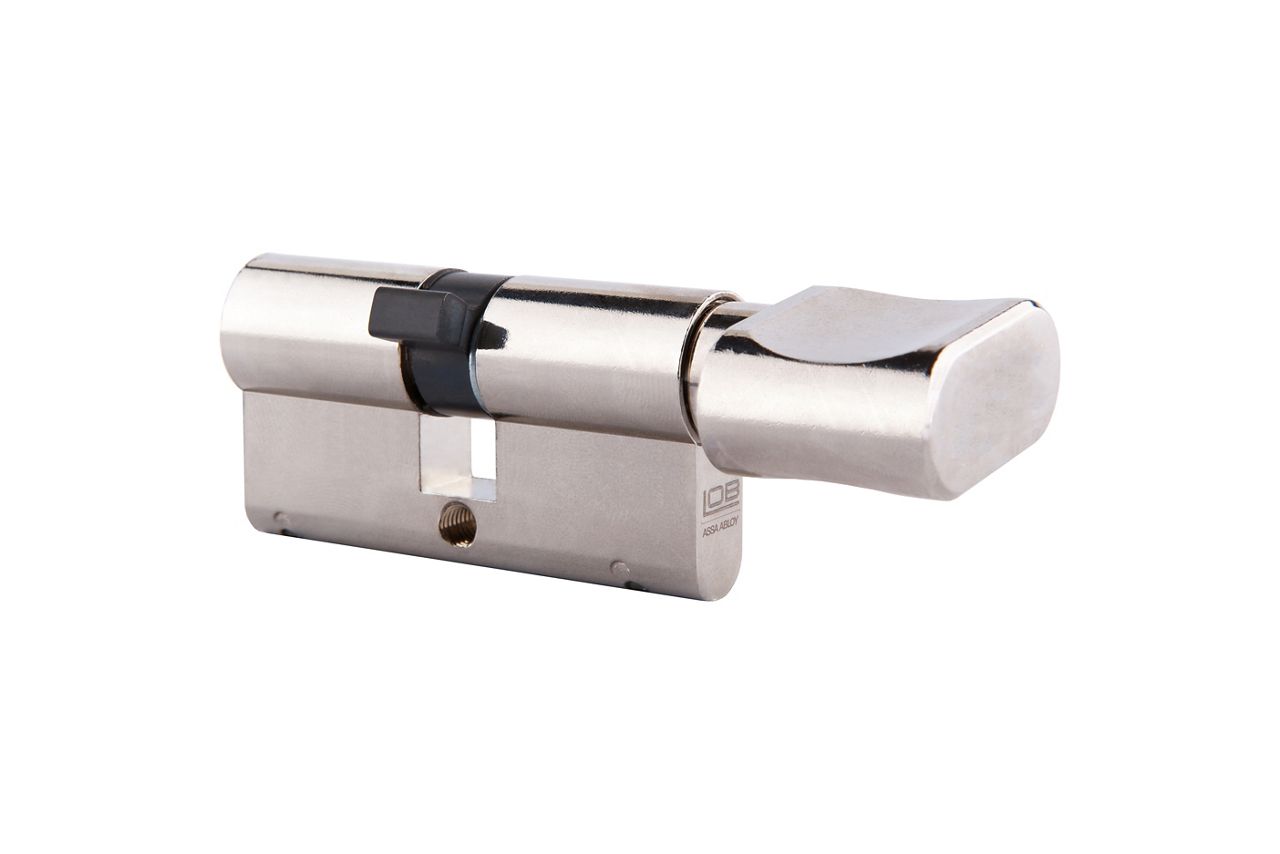

    WP601DRAGON XT cylinder with knob

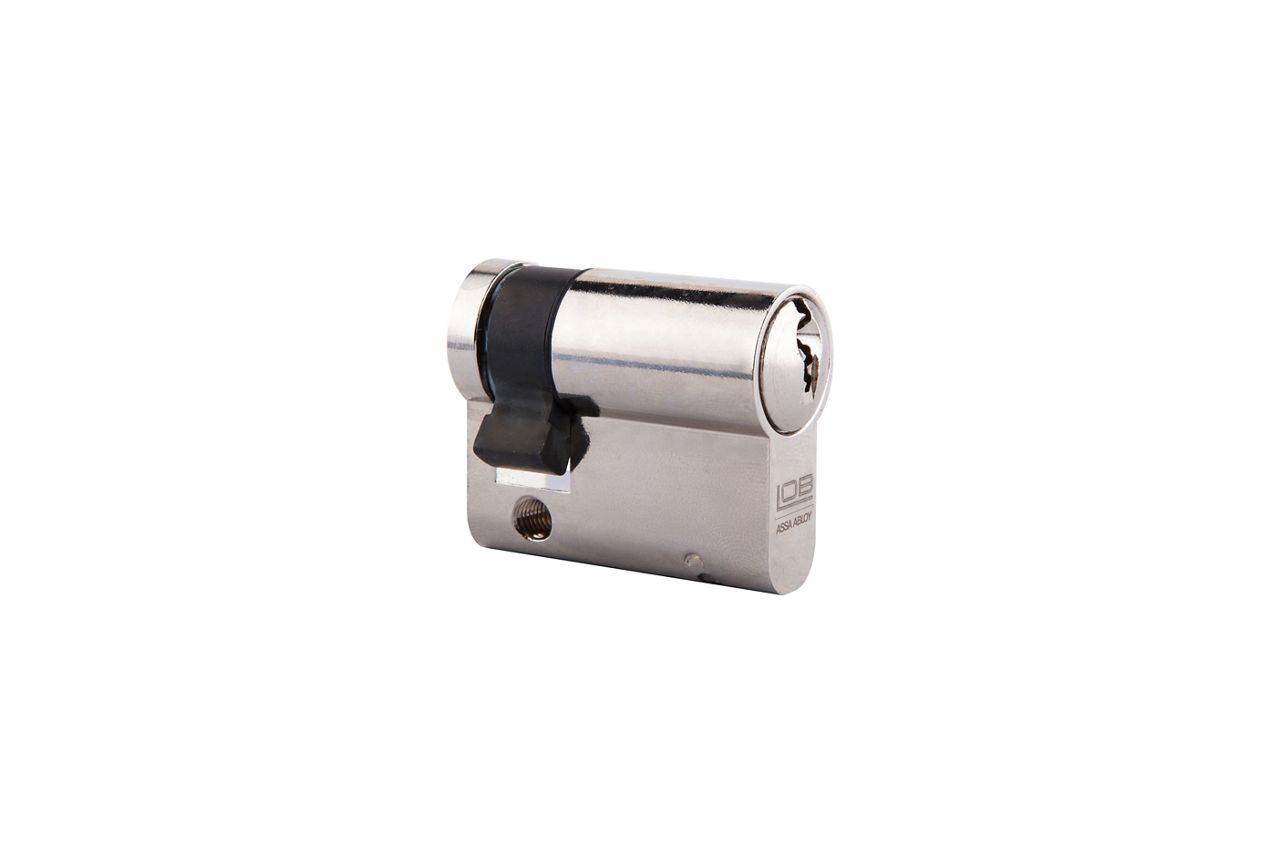

    WP602DRAGON XT unilateral cylinder

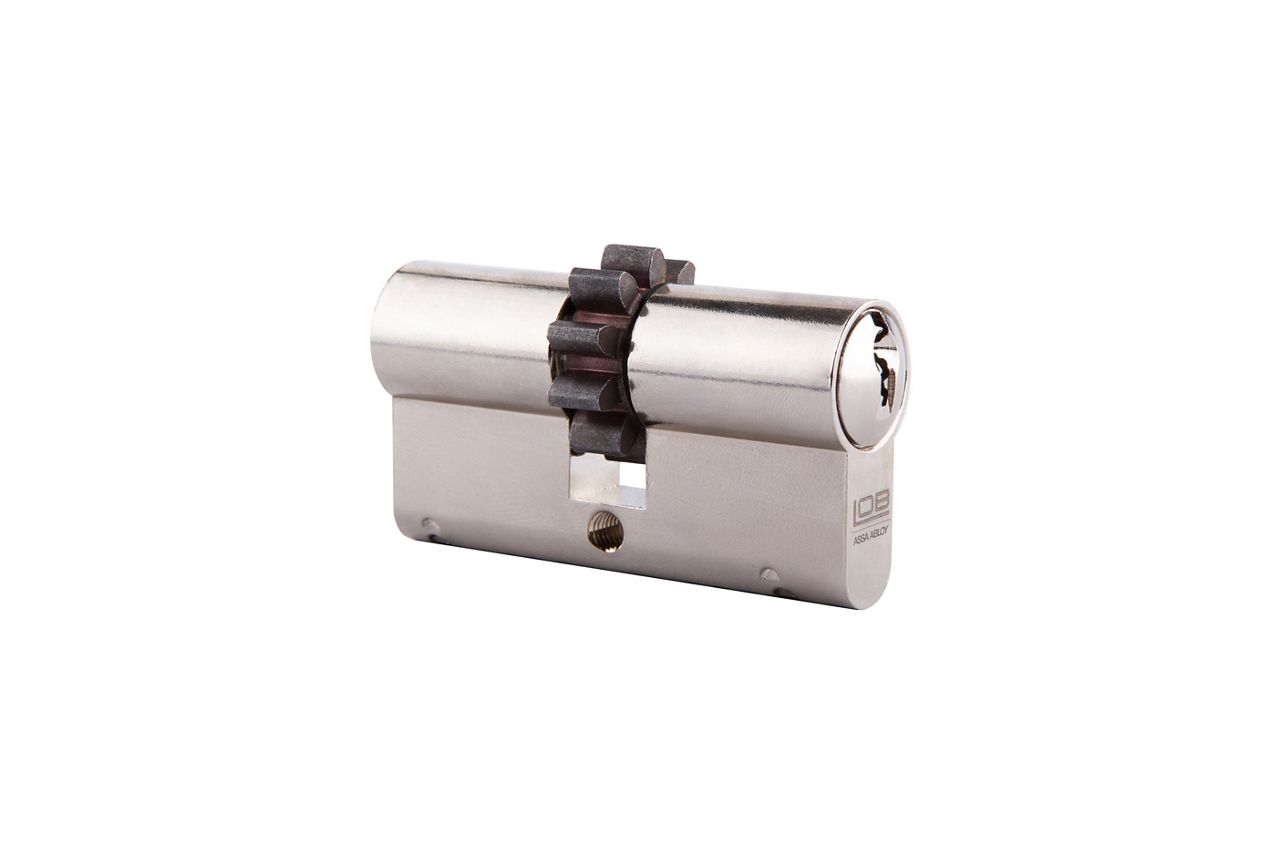

    WP610DRAGON XT cylinder with gear wheel
