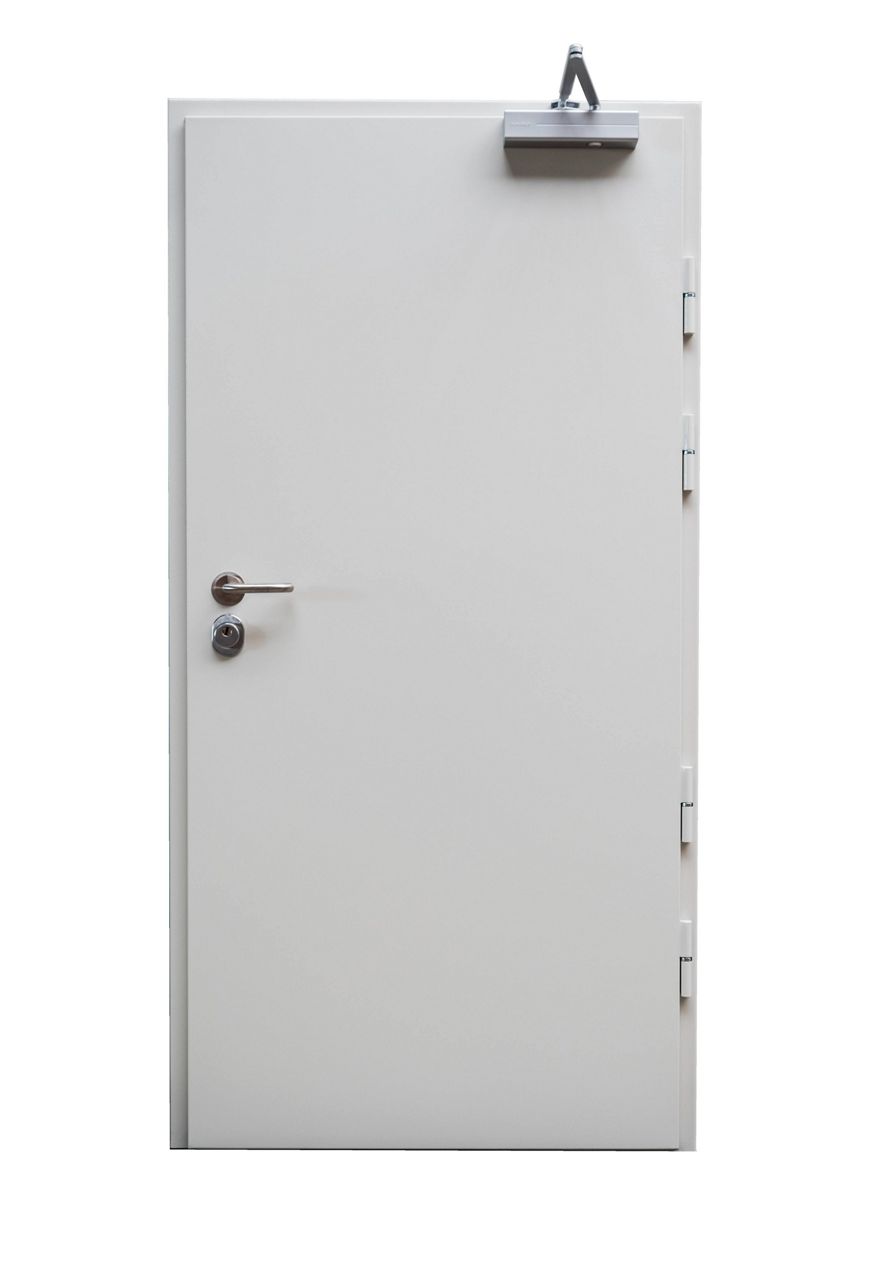

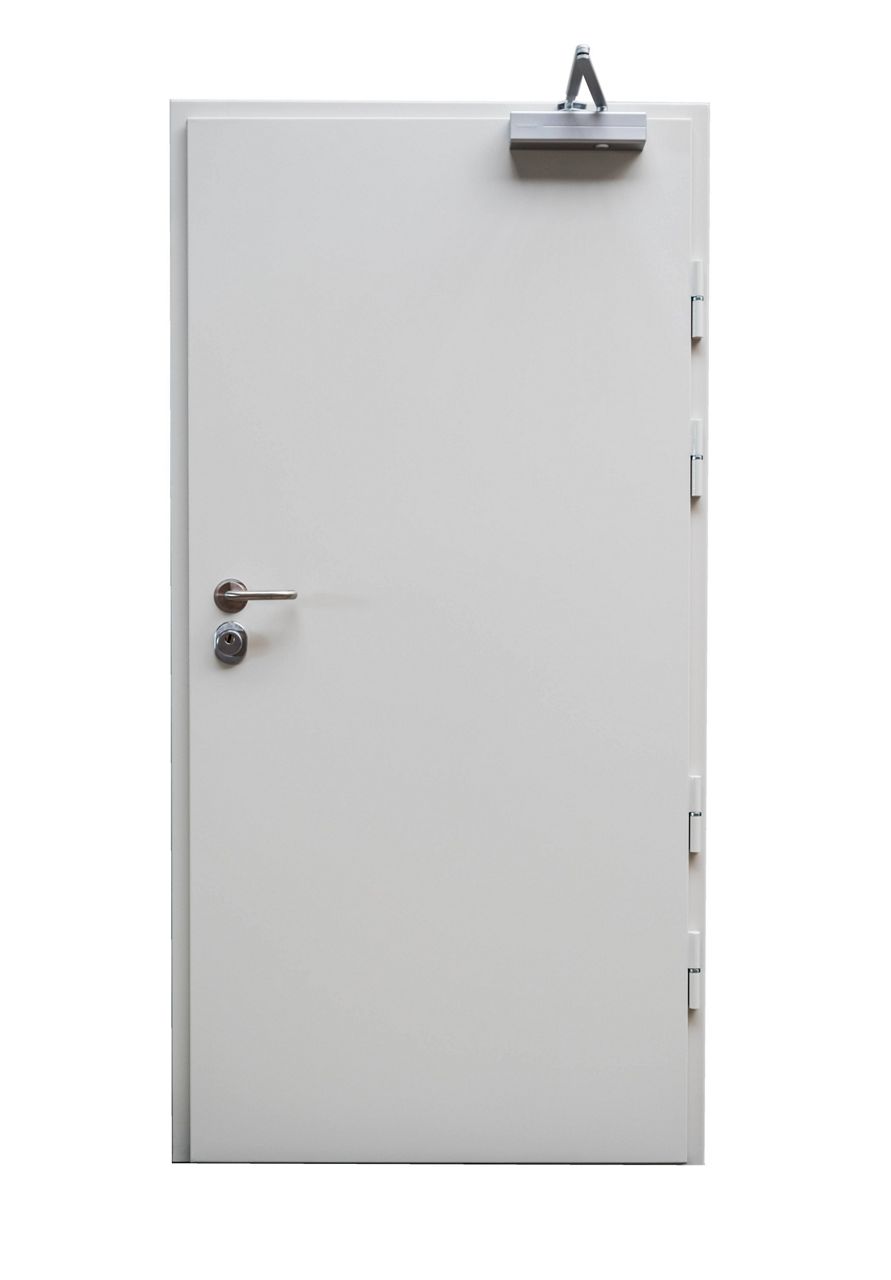

Anti-burglary single-leaf fire door smoke-tight type DC3.1 PP60
The DC3.1 PP60 doors are manufactured in various sizes. They are steel doors with profiled rebates on four edges. The door leaf with a thickness of 65 mm is composed of two zinc plated steel sheets 1,5 mm thick. Reinforcements (C-profiles) are used along the edges of the leaf and a steel construction is placed inside the leaf. The door leaf is filled with mineral wool and gypsum boards ensuring fireproof parameters. „C” or „L” profile frame is made of zinc plated steel sheet 3 mm thick. On the perimeter of the door leaf, there are intumescent gaskets and EPDM rebate gaskets. EPDM gaskets are also installed along the perimeter of the frame, except for the threshold. The door can be equipped with a threshold of 20 mm high or a drop down seal. The door leaf is equipped with four hinges ø22 with ball bearings, main lock multipoint class 7, door closer, stainless steel handle and three anti-burglary bolts.
The glazed fire doors with increased burglary resistance class RC4 can be equipped with glass type Stratobel P6B EI60 with a minimum thickness 43 mm and the maximum dimensions 750 x 1000 mm. The door DC3.1 PP60 can be installed in walls with a minimum thickness of 115 mm: built with clay bricks, clay blocks, silicate bricks, cellular concrete as well as in concrete and reinforced concrete walls and steel structures.
FINISHES:
- RAL color spray painting
- varnished MDF panels 6 or 10 mm thick
- natural oak panels 6 or 10 mm thick
