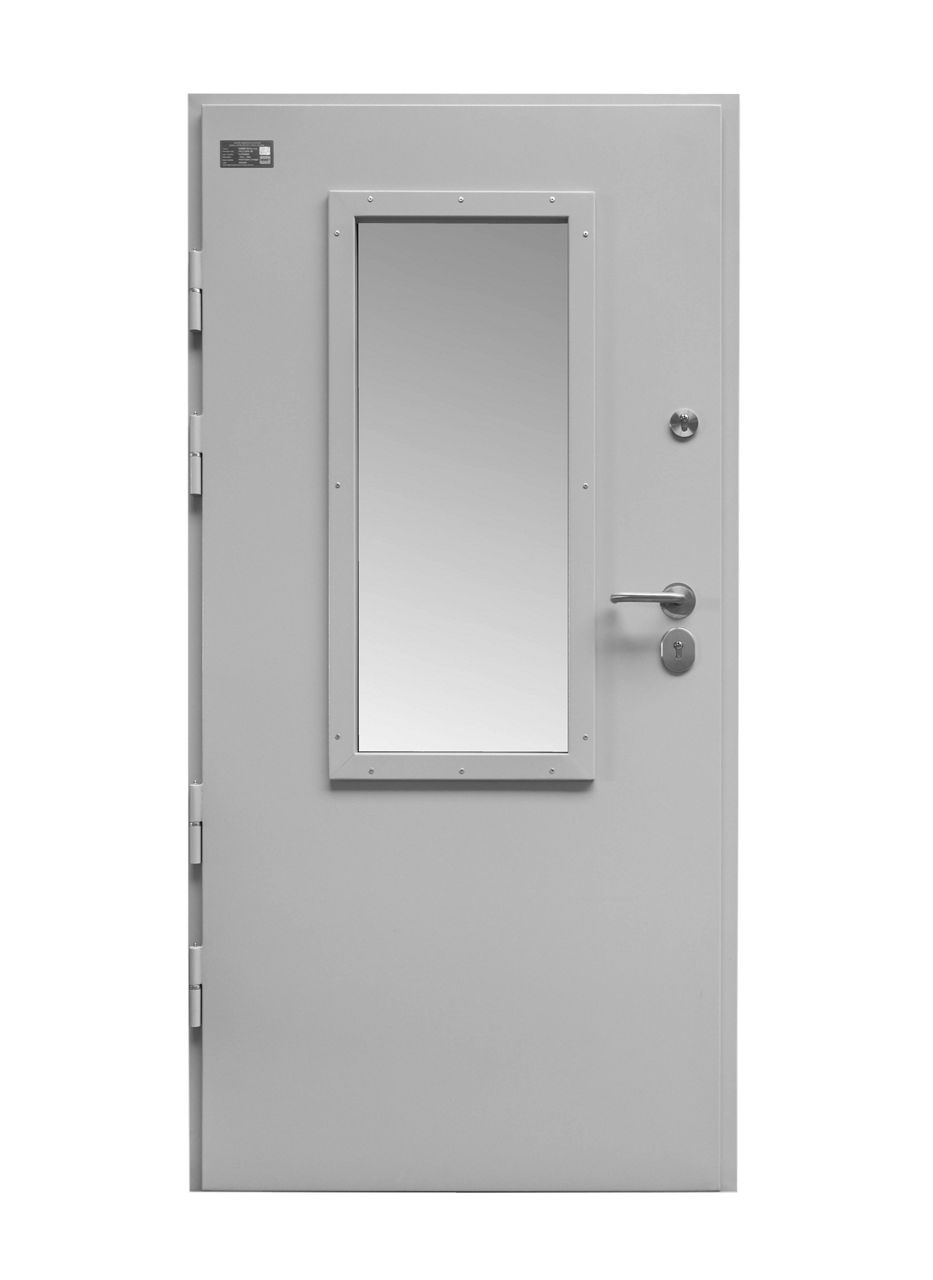

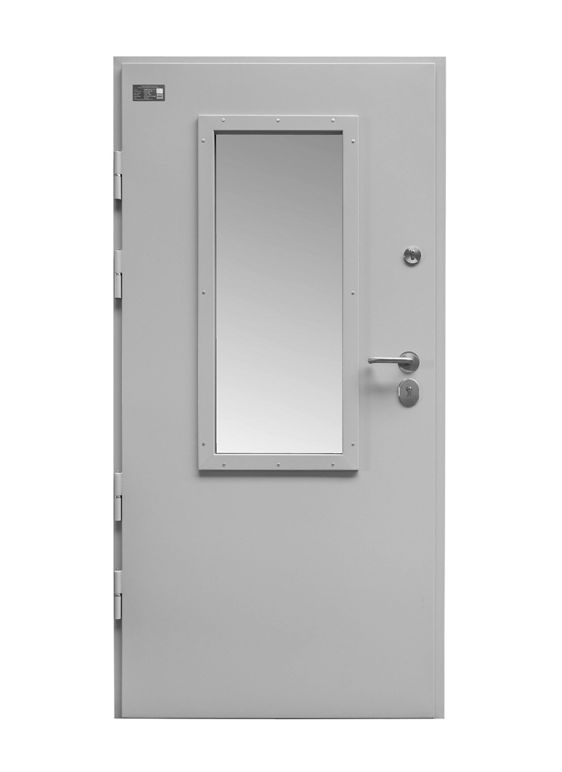

Security single-leaf door type DC3.1/DS3B
The DC3.1/DS3B doors are manufactured in various sizes. They are steel doors with profiled rebates on four edges. The door leaf with a thickness of 65 mm is composed of two zinc plated steel sheets 2 mm thick. The construction is reinforced internally by „C” and „L” profiles. The space between profiles is filled with mineral wool. In the interior construction, there is an insert protecting against overshooting which absorbs the energy of the bullet. The door leaf is equipped with four hinges ø22 with ball bearings. „C” or „L” profile frame is made of steel sheet 3 mm thick reinforced with a bulletproof insert. On the perimeter of the door leaf, there are EPDM rebate gaskets. EPDM gaskets are also installed along the perimeter of the frame, except for the threshold.
At standard, the door frame is equipped with a threshold of 20 mm high. The hinge side is secured by three anti-burglary bolts.
The DC3.1/DS3B door can be used as external and internal door, opened outwards or inwards.
FINISHES:
- RAL color spray painting
- varnished MDF panels 6 or 10 mm thick
- natural oak panels 6 or 10 mm thick
The DC3.1/DS3B door can be glazed with bulletproof glass class BR6 in various shapes and arrangements and can be made as a double-leaf door.
