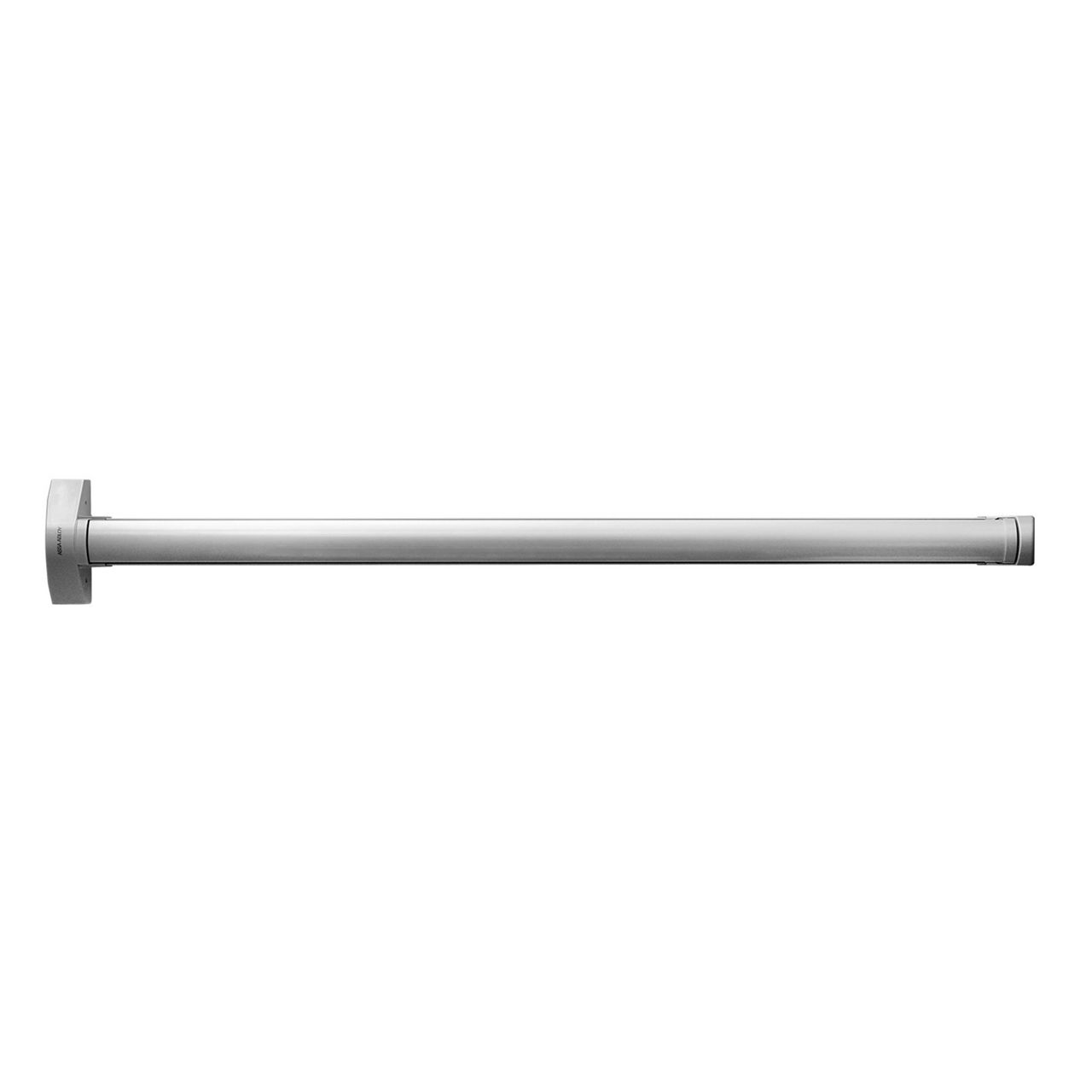

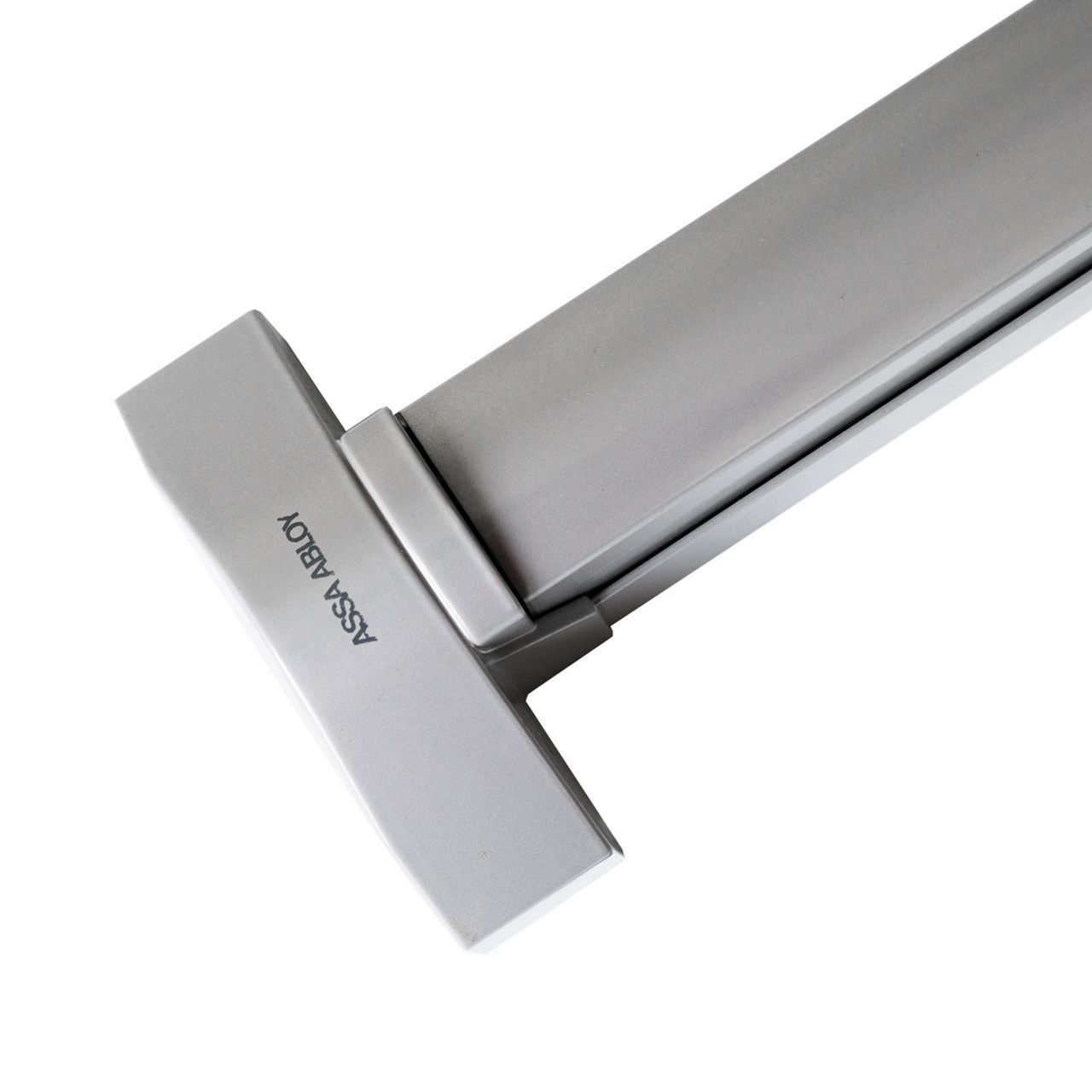

APOGEO 700 Series

The APOGEO 700 Series panic exit device is a mortice device with Touch bar (or Type B mortice device) with an integrated contact-type opening bar. It is designed for single-leaf or double-leaf doors and can be installed on fire-rated and smoke-control doors.

It is certified in accordance with EN 1125 for mechanical panic devices for emergency exits located along escape routes. It is designed to ensure reliable opening even for exits subject to high traffic. The version with a micro-switch indicates the door’s status.

APOGEO 700 Series is certified for use with CF60 (mechanical and electrical), 2240BA and 2230PA locks.

Available in various finishes, some with a special antimicrobial coating on both the cover and the opening bar.

Versions:

  • Standard
  • With micro-switch

Cover finishes: Grey RAL 9006, Black RAL 9005
Opening bar finishes: Red RAL 3000, Grey RAL 9006, Green RAL 6002

Cover finishes

  • Grey RAL9006

  • Black RAL9005

Learn more on APOGEO panic exit devices

1 of 3

Complete the Apogeo 700 device with its accessories

  • Mortise lock

    EN 1125-certified locks for use with panic exit devices.

    Compatible locks

    Narrow stile locks:

    • For single-leaf doors: 2240BA, 2230PA

    Locks for solid doors:

    • For single-leaf doors: CF60 mechanical, CF60 electrical
    • For double-leaf doors (active leaf): CF32

  • Europrofile cylinder

    For controlling the lock and handle using a key.
    Compatible ranges: CY110, CYS10, Yale 500, Yale 1000, Yale 1500.
    Compatible cylinder types: Double cylinder, Half cylinder

    See the products

  • External handle

    For opening the door from the outside.
    Handle spindle: 8 or 9 mm (depending on the type of lock fitted)
    Certification: EN 179

    See the products

  • Rods with terminals and rod reattachments for passive leaf

    Upper and lower connecting rods with conical terminals and upper and lower guide slots.
    For double-leaf doors – Installation on the passive leaf.

Discover the other products in the APOGEO range

  • ASSA ABLOY

    APOGEO 300 Series

    Type B (Touch) rim panic exit device, suitable for single-leaf or double-leaf fire doors.
  • ASSA ABLOY

    APOGEO 200 Series

    Type A (Push) rim panic exit device, suitable for single-leaf or double-leaf fire doors.
  • ASSA ABLOY

    APOGEO 500 Series

    Type A (Push) mortice panic exit device, suitable for single-leaf or double-leaf fire doors.
