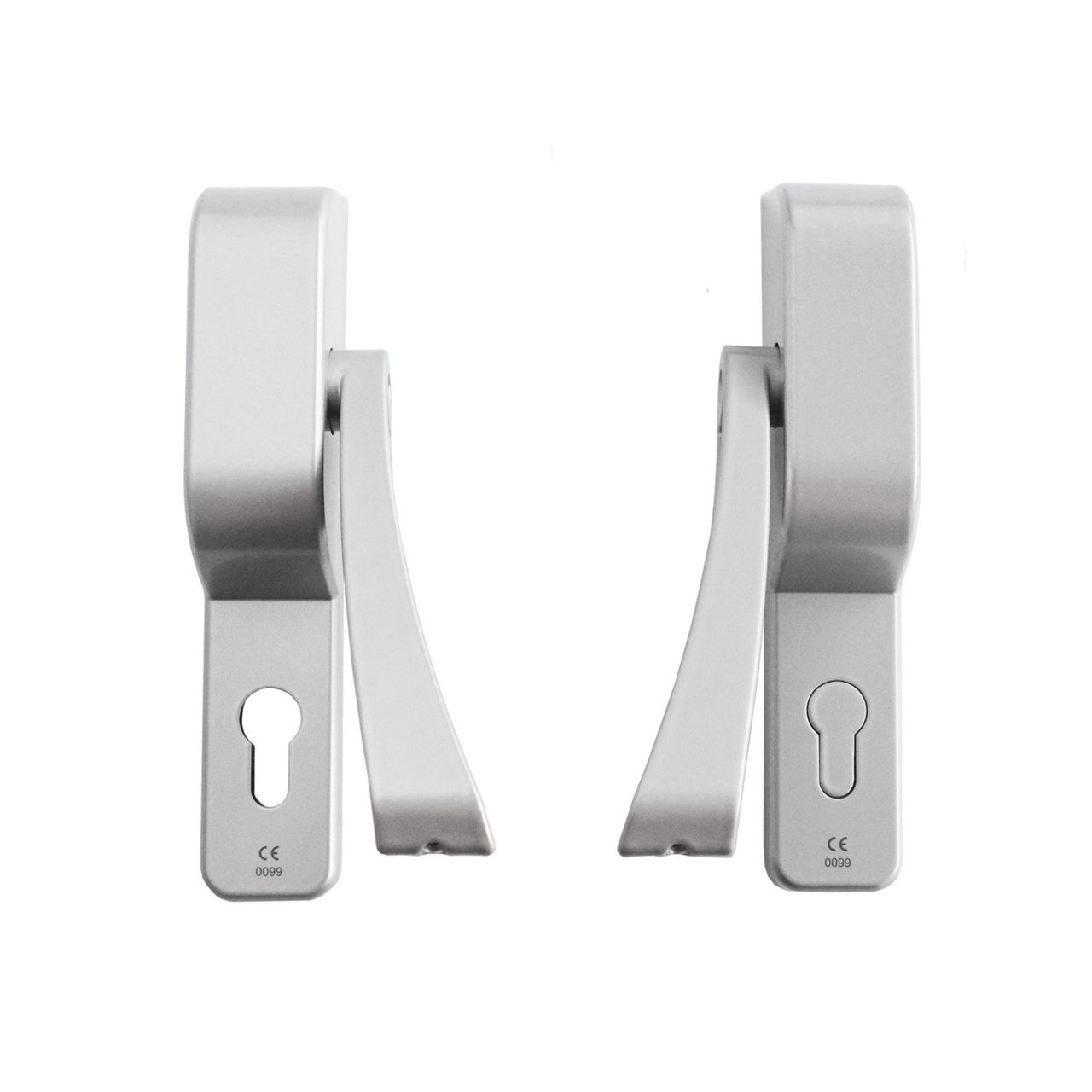

APOGEO 500 Series

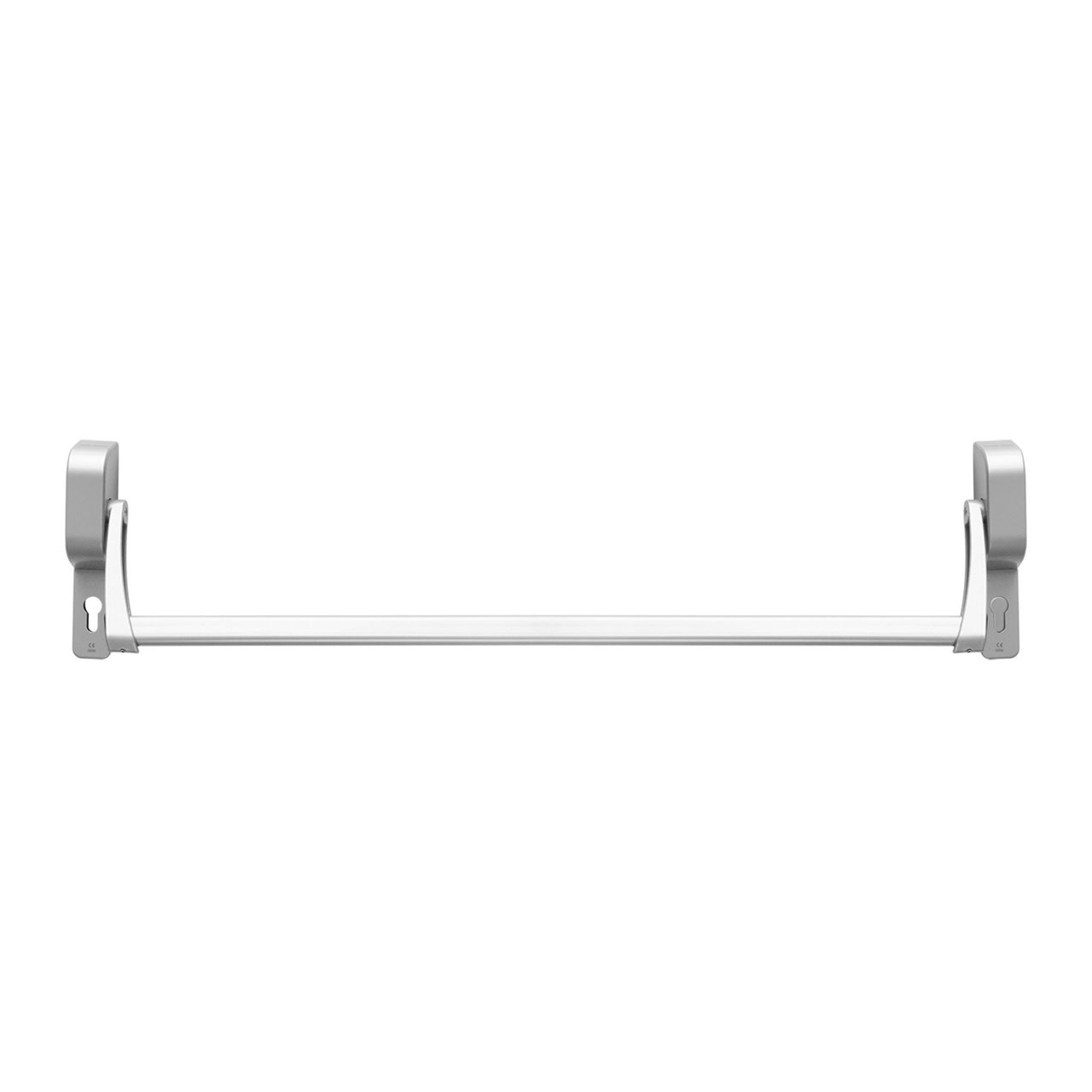

The APOGEO 500 Series panic exit device combines uncompromising safety with a contemporary design. It is a mortice device with Push bar (or Type A mortice device) designed for single or double-leaf doors and can be installed on fire-rated and smoke-resistant doors.

It is certified in accordance EN 1125 for mechanical panic devices for emergency exits located along escape routes. It is designed to ensure reliable opening even for exits subject to high traffic.

APOGEO 500 Series is certified for use with ASSA ABLOY CF60 (mechanical and electrical), CF32, 2240BA and 2230PA locks, with effeff N1212 Solution locks and with ABLOY high-security locks. The two different distance options allow installation on various models.

The version with a micro-switch indicates the door’s status.

Available in various finishes, some with a special antimicrobial coating on the cover, transmission levers and oval opening bar (sold separately).

Variants:

  • PE2A1 – EN 1125 certified with ASSA ABLOY locks
  • PE2A2 – EN 1125 certified with ABLOY and effeff locks

Versions:

  • Standard
  • With micro-switch

Finishes (cover and transmission levers): Grey RAL 9006, Black RAL 9005, White RAL 9010

Finishes

  • Grey RAL9006

  • Black RAL9005

  • White (RAL 9010)

Learn more on APOGEO panic exit devices

1 of 4

Easy installation

The APOGEO 500 Series is easy to install and adapts effortlessly to a variety of installation requirements.

Complete the Apogeo 500 device with its accessories

  • Horizontal oval bar

    For fitting into the transmission levers of the panic exit device. Antimicrobial coating available for certain finishes.
    Material: Steel
    Length: 775 mm | 1075 mm | 1400 mm
    Finishes: Grey (RAL9006), Black (RAL9005), Red (RAL3000), Green (RAL6002), White (RAL9010)
    Antimicrobical coating: Grey (RAL9006), White (RAL9010)

  • Mortise lock

    EN 1125-certified locks for use with panic exit devices.

    Main compatible locks:

    Narrow stile locks:

    • For single-leaf doors: 2240BA, 2230PA, EL060, EL066, EL460, EL466, EL420, MP420
    • For double-leaf doors (active leaf): PE060
    • For double-leaf doors (passive leaf): PE920, PE923

    Locks for solid doors:

    • For single-leaf doors: CF60 mechanical, CF60 electrical, EL160, EL166, EL560, EL566, EL520, MP520
    • For double-leaf doors (active leaf): PE160, PE520, PE560
    • For double-leaf doors (passive leaf): CF32, PE925, PE928

  • Europrofile cylinder

    For controlling the lock and handle using a key.
    Compatible ranges: CY110, CYS10, Yale 500, Yale 1000, Yale 1500.
    Compatible cylinder types: Double cylinder, Half cylinder

    See the products

  • External handle

    For opening the door from the outside.
    Handle spindle: 8 or 9 mm (depending on the type of lock fitted)
    Certification: EN 179

    See the products

  • Rods with terminals and rod reattachments for passive leaf

    Upper and lower connecting rods with conical terminals and upper and lower guide slots.
    For double-leaf doors – Installation on the passive leaf.
