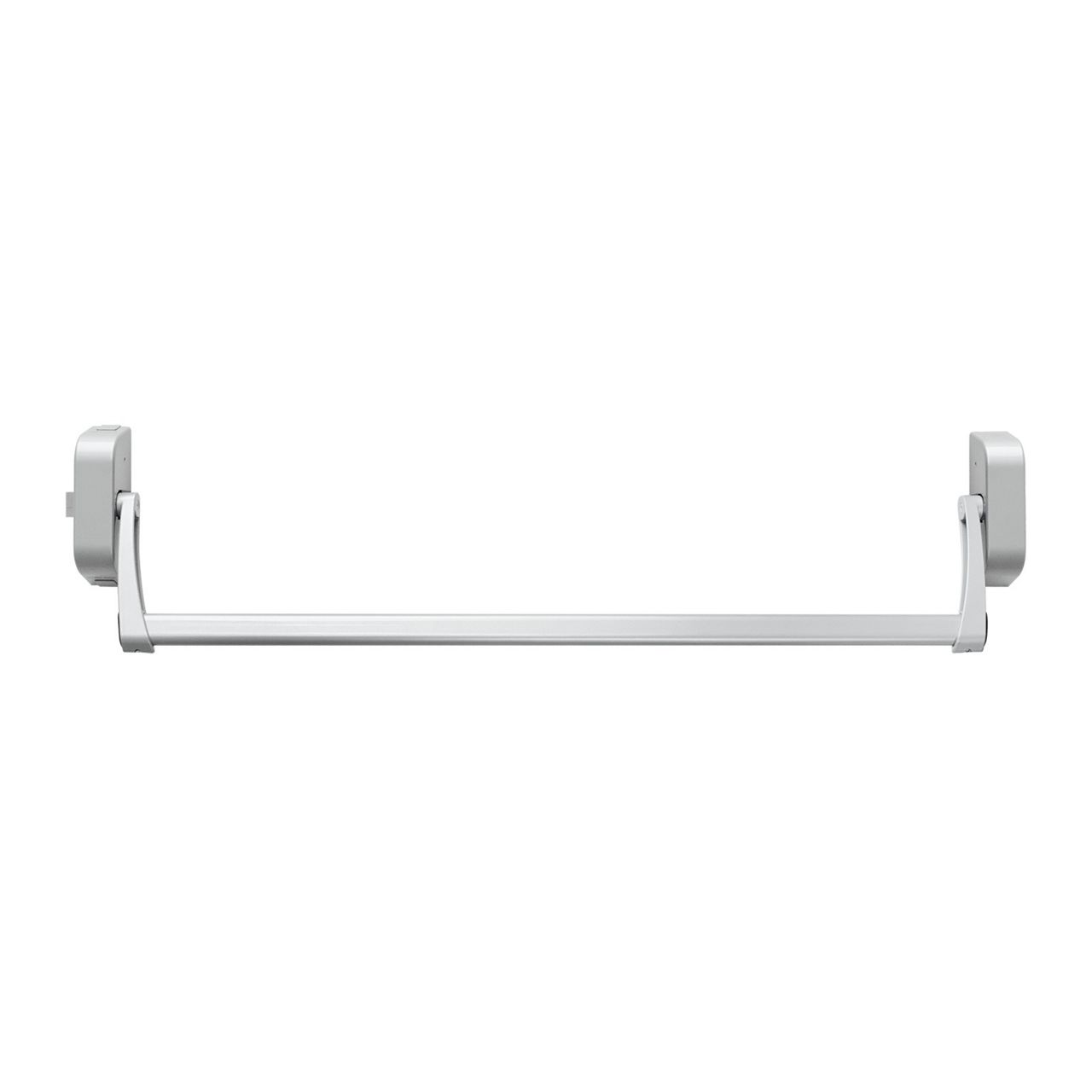

APOGEO 200 Series
The APOGEO 200 Series panic exit device is a flexible and reliable solution. It is a rim device with Push bar (or Type A rim device) designed for single- or double-leaf doors and can be installed on fire-rated and smoke-resistant doors.
It is certified in accordance with EN 1125 for mechanical panic devices for emergency exits located along escape routes. It is designed to ensure effortless opening and rapid evacuation.

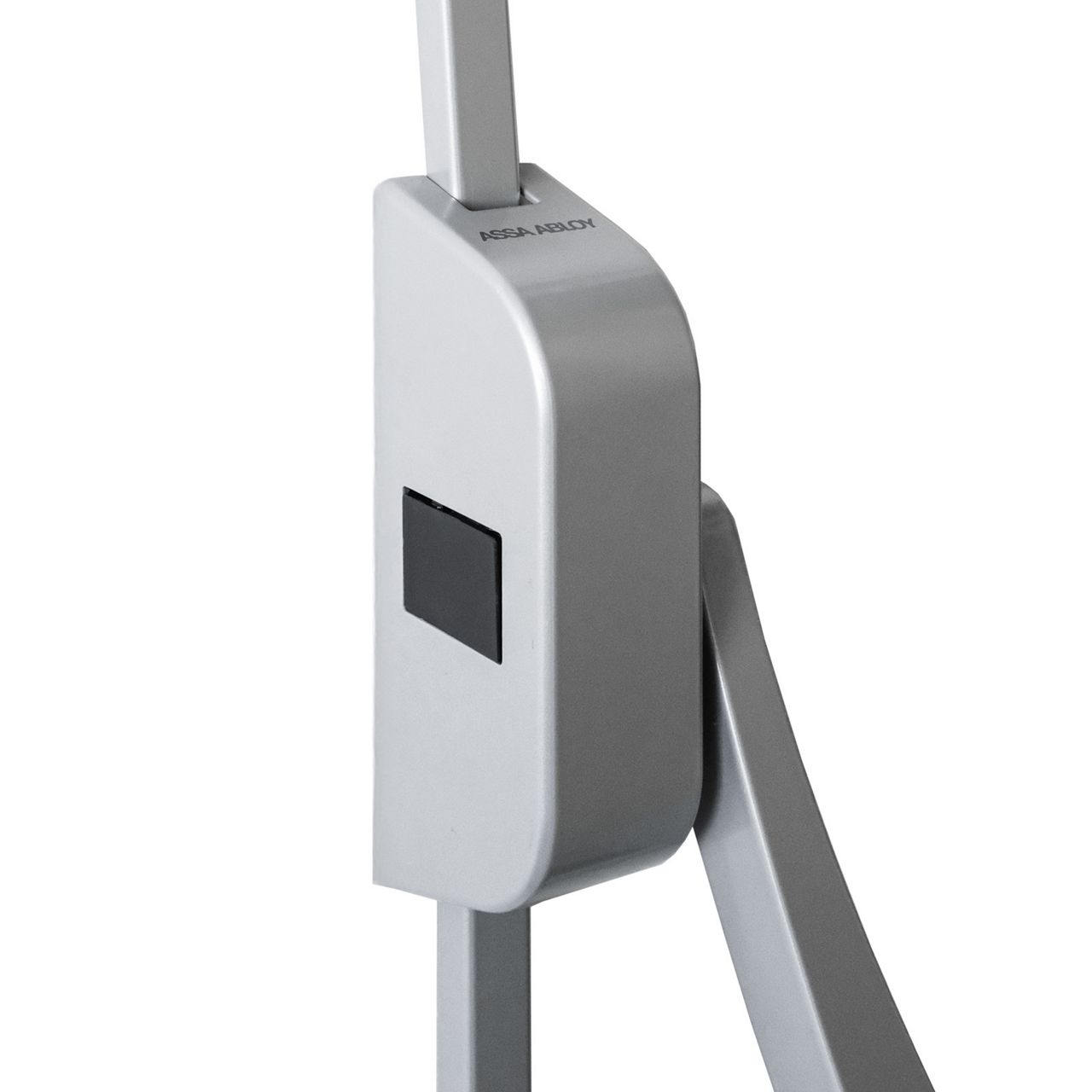

The modular design of the cover facilitates the insertion of vertical locking rods for a 2- or 3-point locking configuration. The version with a micro-switch indicates the door’s status.

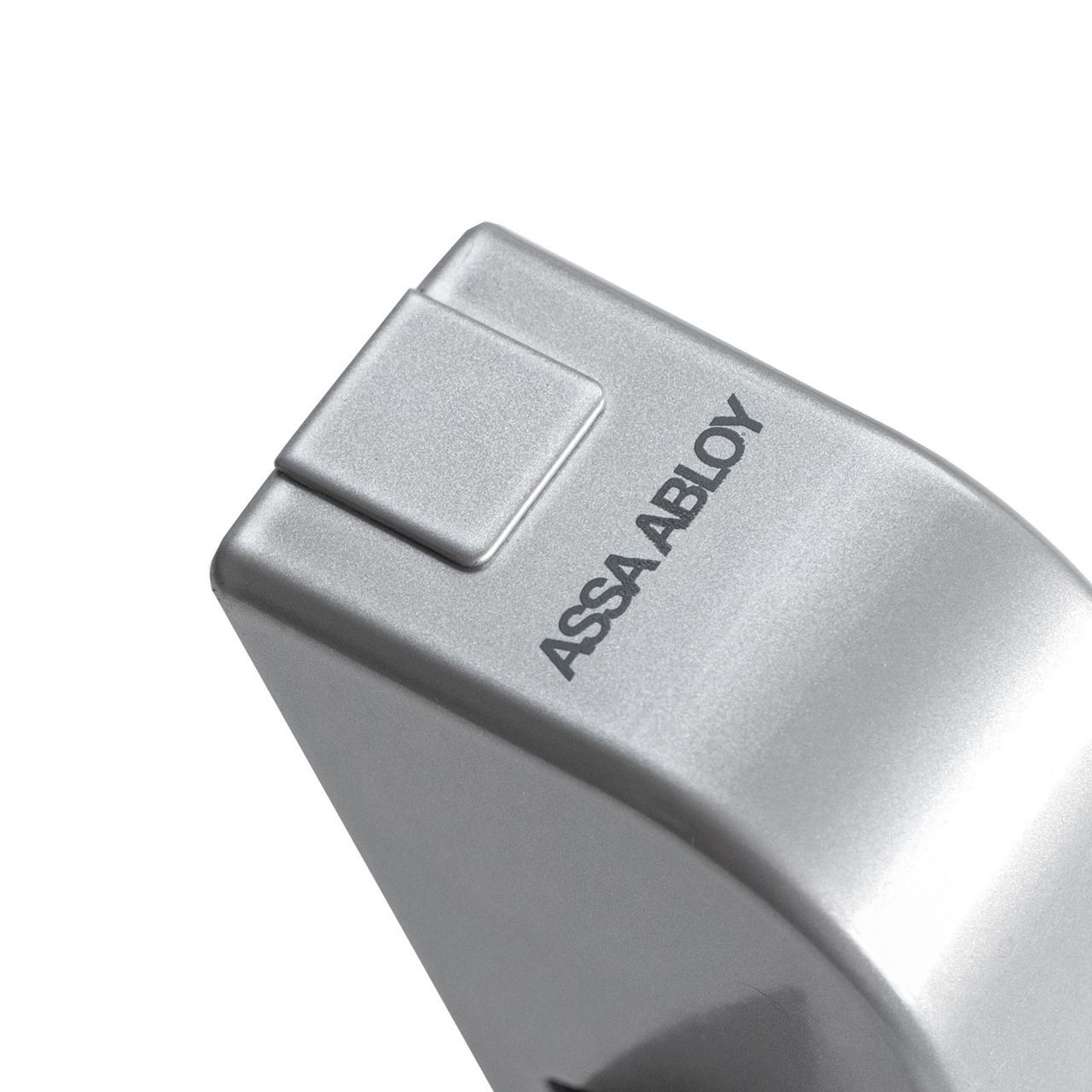

Available in various finishes, some with a special antimicrobial coating on the cover, transmission levers and oval opening bar (sold separately).
Versions:
- With hold-open device
- With micro-switch
Finishes: Grey RAL 9006, Black RAL 9005, White RAL 9010
Finishes
-
Grey RAL9006
-
Black RAL9005
-
White (RAL 9010)
1 of 6
Easy installation
The APOGEO 200 Series is easy to install and adapts effortlessly to a variety of installation requirements.
Complete the Apogeo 200 device with its accessories
Horizontal oval bar
For fitting into the transmission levers of the panic exit device. Antimicrobial coating available for certain finishes.
Material: Steel
Length: 775 mm | 1075 mm | 1400 mm

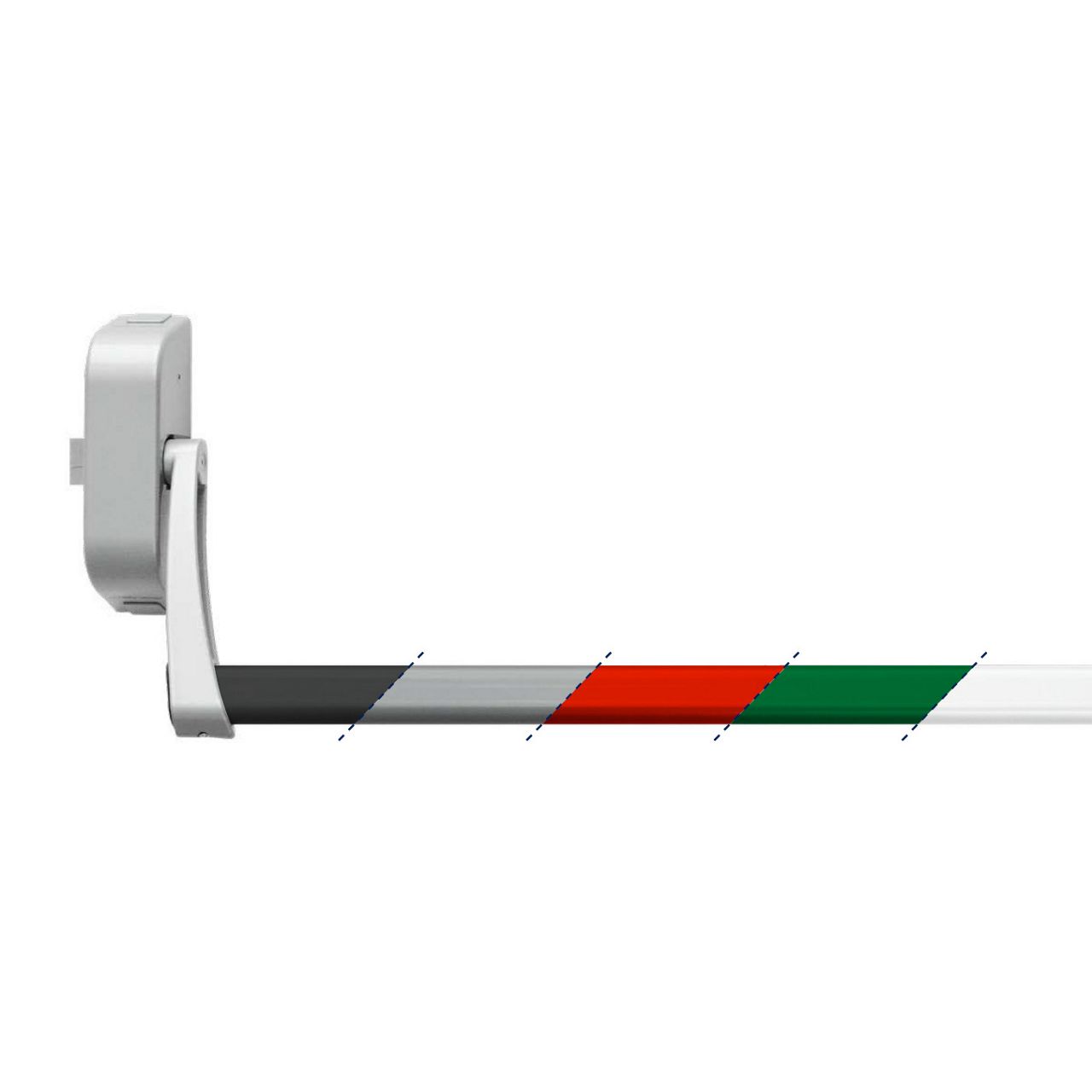

Finishes: Grey (RAL9006), Black (RAL9005), Red (RAL3000), Green (RAL6002), White (RAL9010)
Antimicrobical coating: Grey (RAL9006), White (RAL9010)Vertical rods
For 2- or 3-point locking configurations. To be used with vertical or side latches.
Dimensions: 2 x 1100 mm (vertical bars for doors up to 3500 mm in height available on request)
Available finishes: Grey (RAL 9006), Black (RAL 9005), White (RAL 9010)Upper/lower vertical latches with strikes
To be used in conjunction with the rods for a 2- or 3-point locking system.

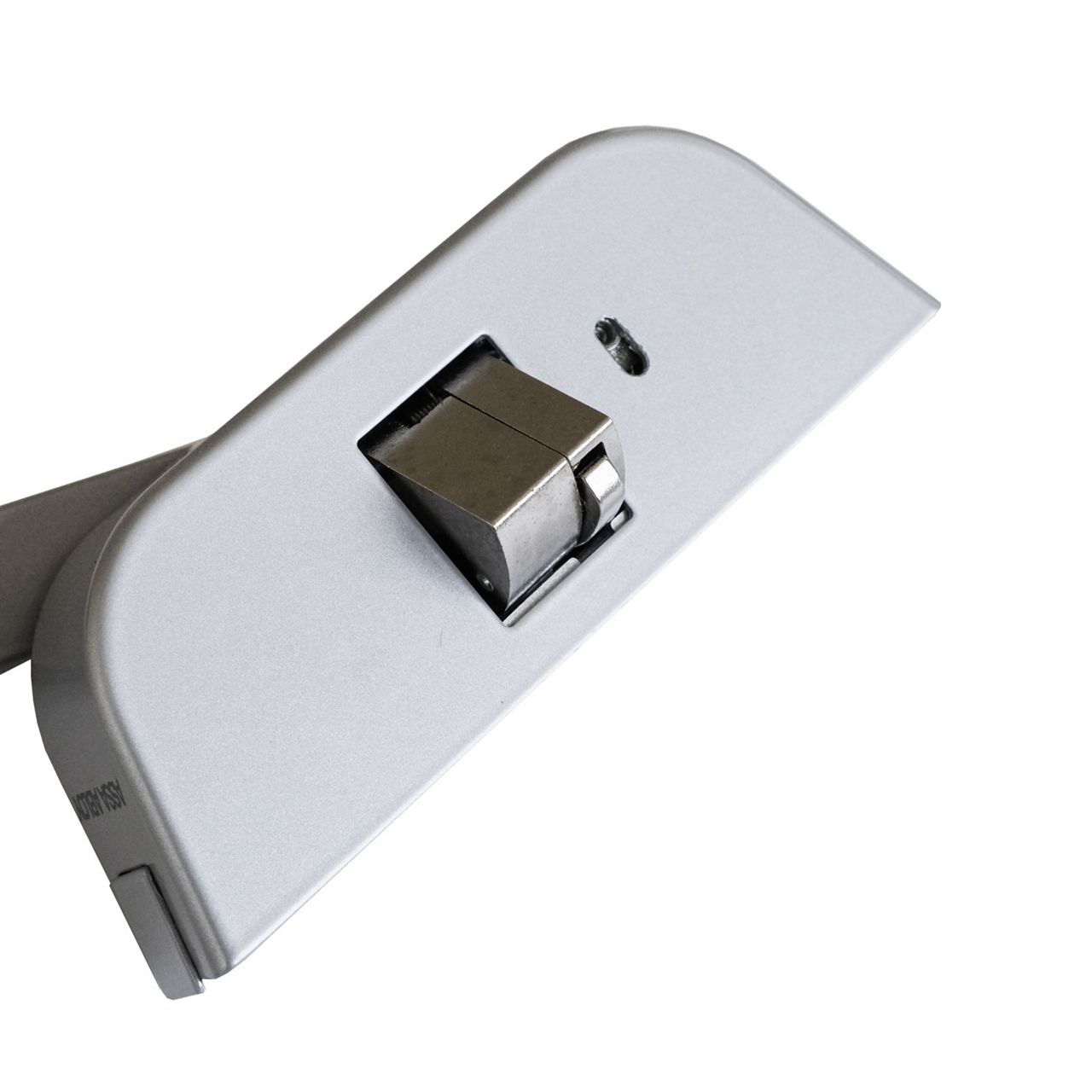

Available finishes: Grey (RAL 9006), Black (RAL 9005), White (RAL 9010)Upper/lower latches with strikes
To be used in conjunction with the rods for a 2- or 3-point locking system.
Available finishes: Grey (RAL 9006), Black (RAL 9005), White (RAL 9010)Jolly external handle
Universal external handle for rim panic exit devices.
Standard finishes: Black, Grey
