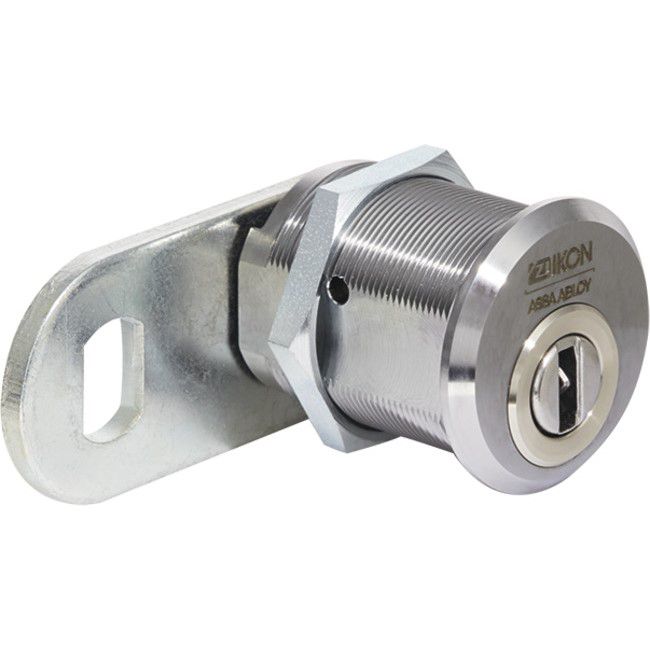

Locking lever cylinder eCLIQ N923

25 mm diameter, laterally flattened to 22 mm - without key

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, matt chrome-plated (OF=MC)

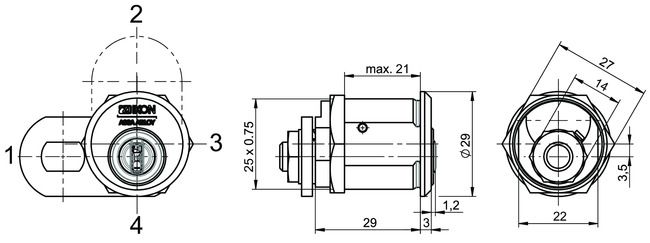

  • Dimension in mm A, L, B: 38, 29, 21
  • Fixing with M25 x 0.75 housing nut
  • Standard locking lever (SLHB=1645009)
  • Locking path and locking lever path 90ยบ left or right
  • Key withdrawal when locking lever is closed
  • Maintenance-free for up to 200,000 cycles
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 locking lever cylinder
  • 1 housing nut M25 x 0.75 x 4
  • 1 core nut, M8 x 0,75 x 3

Ordering Information

  • Please include the desired locking path (SST=) in your order.
