Aperio products & technology

Easy integration with the Integra access system

Aperio technology at a glance

Aperio technology is globally available and easily integrated in most access control systems. It allows additional doors to be integrated into new or existing access control systems without the need for wiring.

The advantages at a glance

For C100 digital cylinder and E100 electronic fitting
Wireless access control
Add doors without wiring
Easy maintenance and installation
Version for interior and covered exterior door IP54
Up to 100mm door thickness
Micro USB interface for programming
Emergency power supply via USB
EN179, EN1906, DIN18273
CE certified

Aperio products

Electronic knob cylinder
With RFID read function, battery operated, enables wireless communication

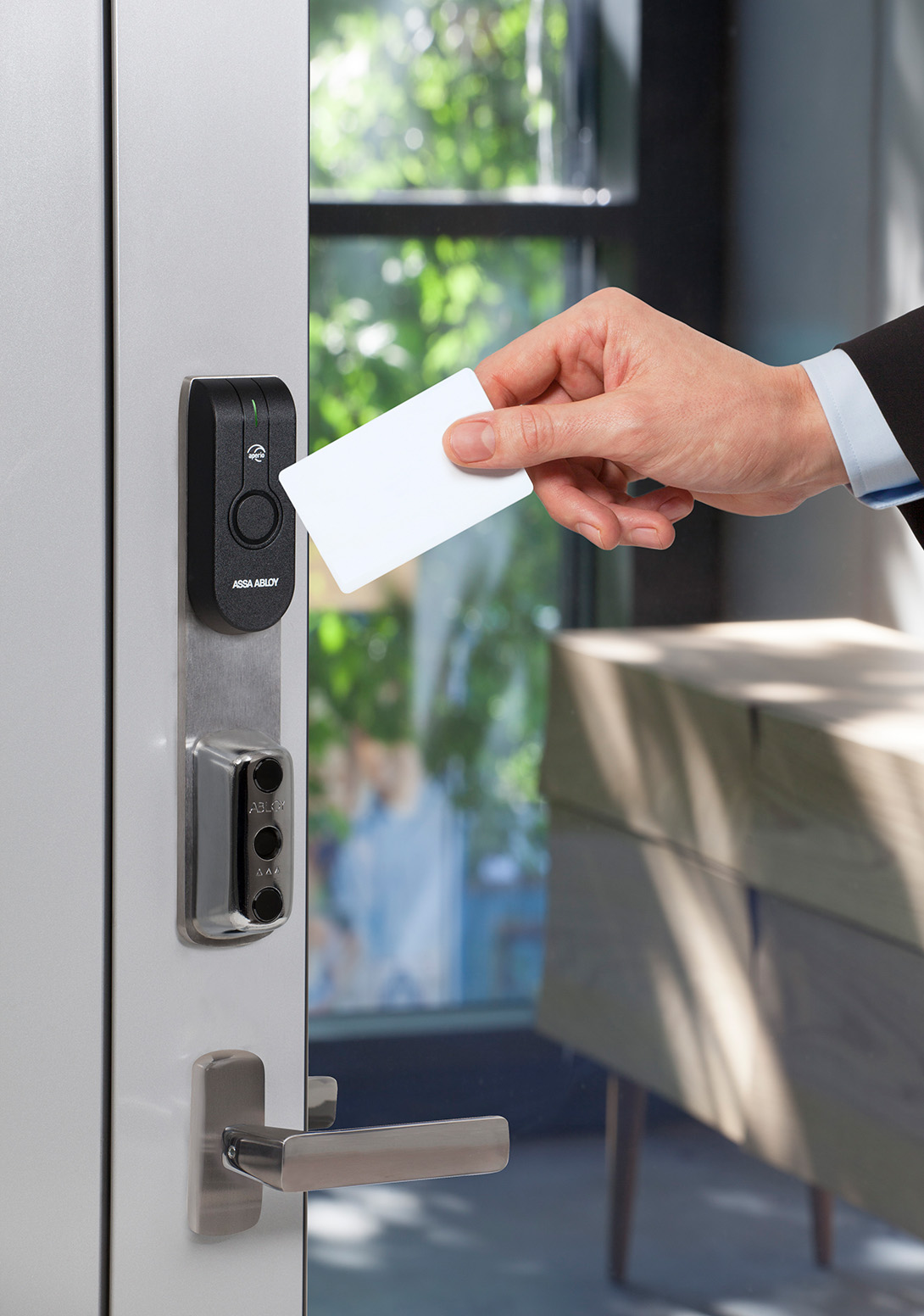

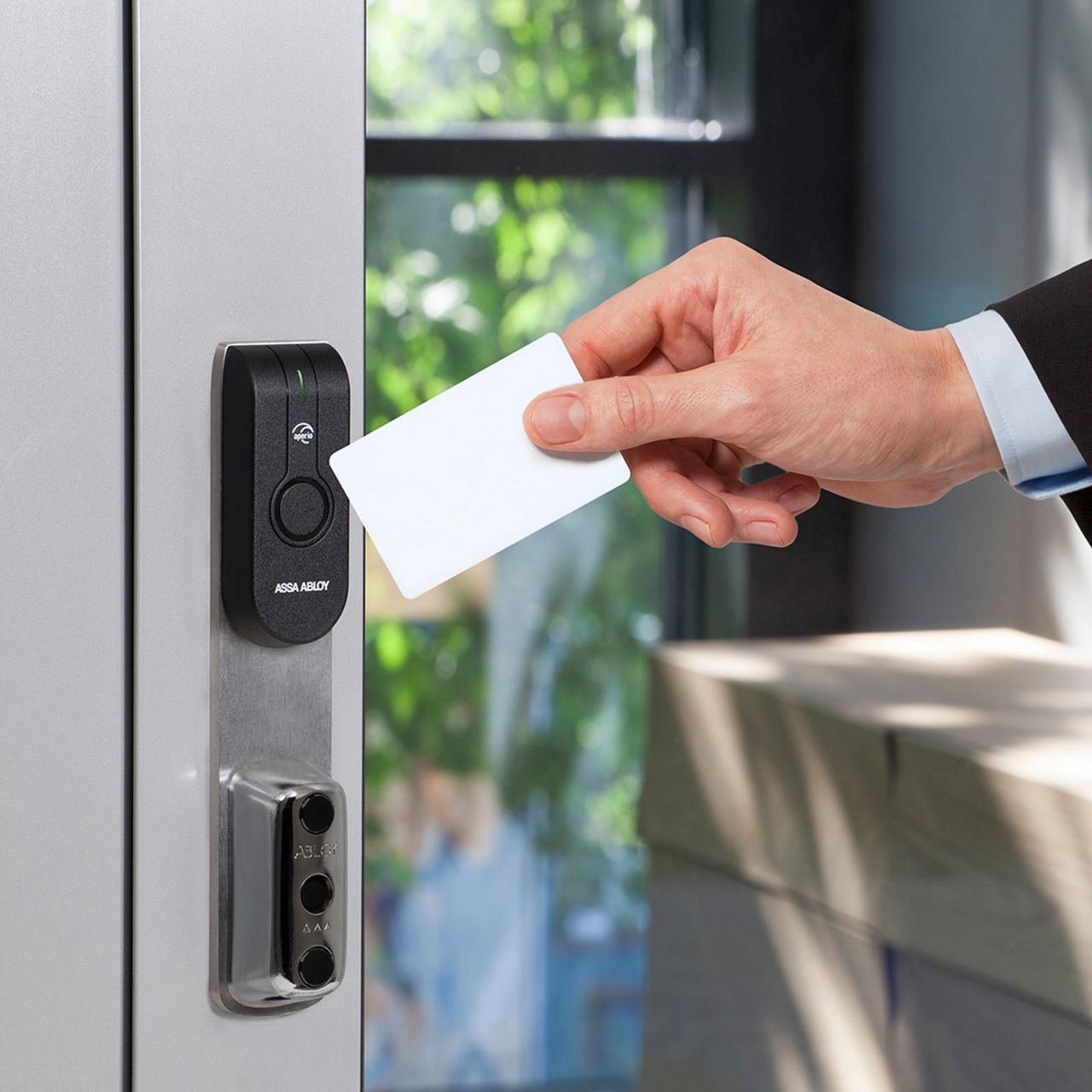

Electronic fitting
With RFID read function, battery operated, enables wireless communication
Electronic lock
With RFID read function, battery operated, enables wireless communication
Communication hub
Connection to access control system via Wiegand interface or RS485
PAP-Tool
Software for installation and programming of Aperio products

Technical highlights

AES 128 bit encryption - wireless and internal
Open communication protocol via RS485 interface or connection option via Wiegand interface
Fitting: security-relevant electronics inside
Cylinder: security-relevant electronics in the cylinder core
Status display with LEDs (red/green/orange)
Battery life >40,000 cycles (for max. 3 years)
Clutch mechanism in the cylinder core
Aperio Online: Access decision is made in the access control system
Aperio Offline: Access is controlled by the Aperio device based on the information stored on the user medium
