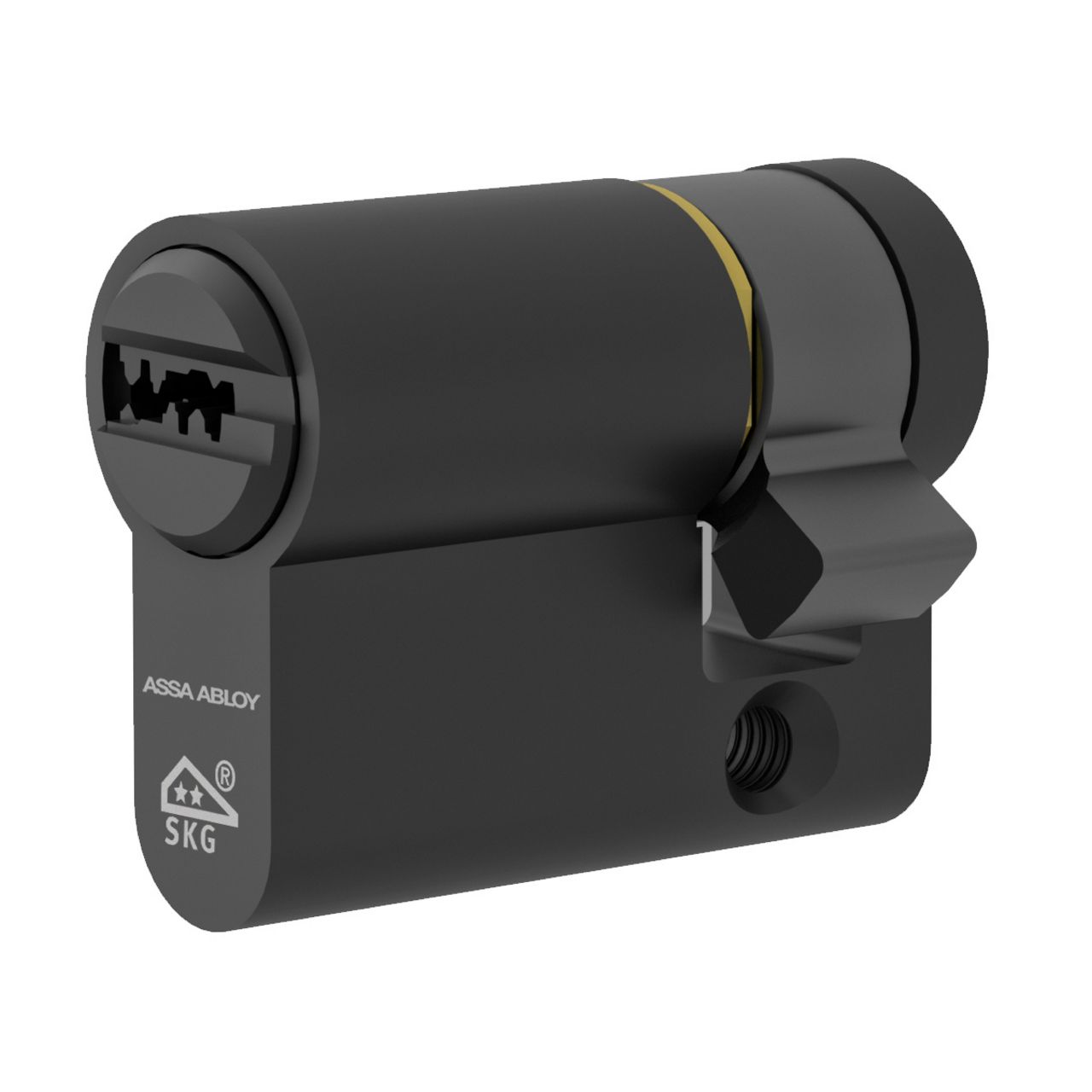

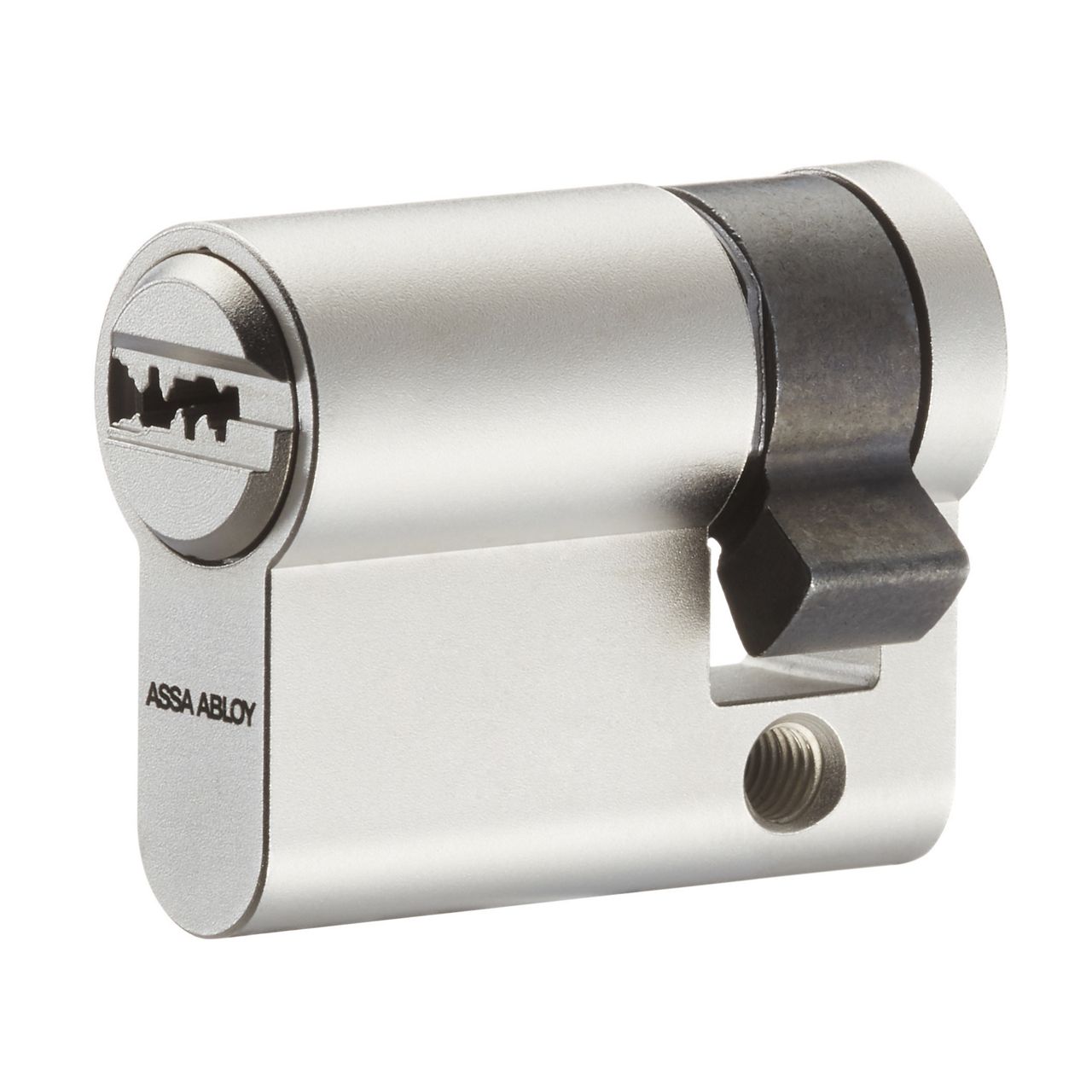

CY110 Euro Single Cylinder

Secure your interior doors with the CY110 single Euro cylinder – a highly durable solution featuring an 8-position cam (45° increments) for flexible installation.

Application:

For internal doors, such as; elevators
Available as master key system (MKS), Keyed alike (KA) and keyed to differ (KD)

Finishes Available:

Antique Brass
Black Chrome
Nickel-Silver
Polish Brass
Polish chrome

Specification:

Lengths starting at 30|10 available in 5mm increments up to 80|10
Thumbturn variant available
Multi-position cam as standard


Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

Name	Value
Security	EN 1303:2015 certified, 1 6 0 B 0 C 5 0/D* (grade D optional), SKG** certified, DIN 18252 compliant
Attack resistance	Anti-pick, Anti-bump (only for KA and KD), Anti-drill: 5 min. drilling resistance (optional), Anti-pull: 15 kN pulling resistance* (optional), *when used with security escutcheon
Keying	Dimple security design, Master key system (MKS) \| Keyed alike (KA) \| Keyed to differ (KD)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	92,232
Max number of MKS profiles	20
Number of pins	6 (optional side/top pins)
Raw material	Brass
Finish	Satin nickel, Optional: Polished brass, Black chrome

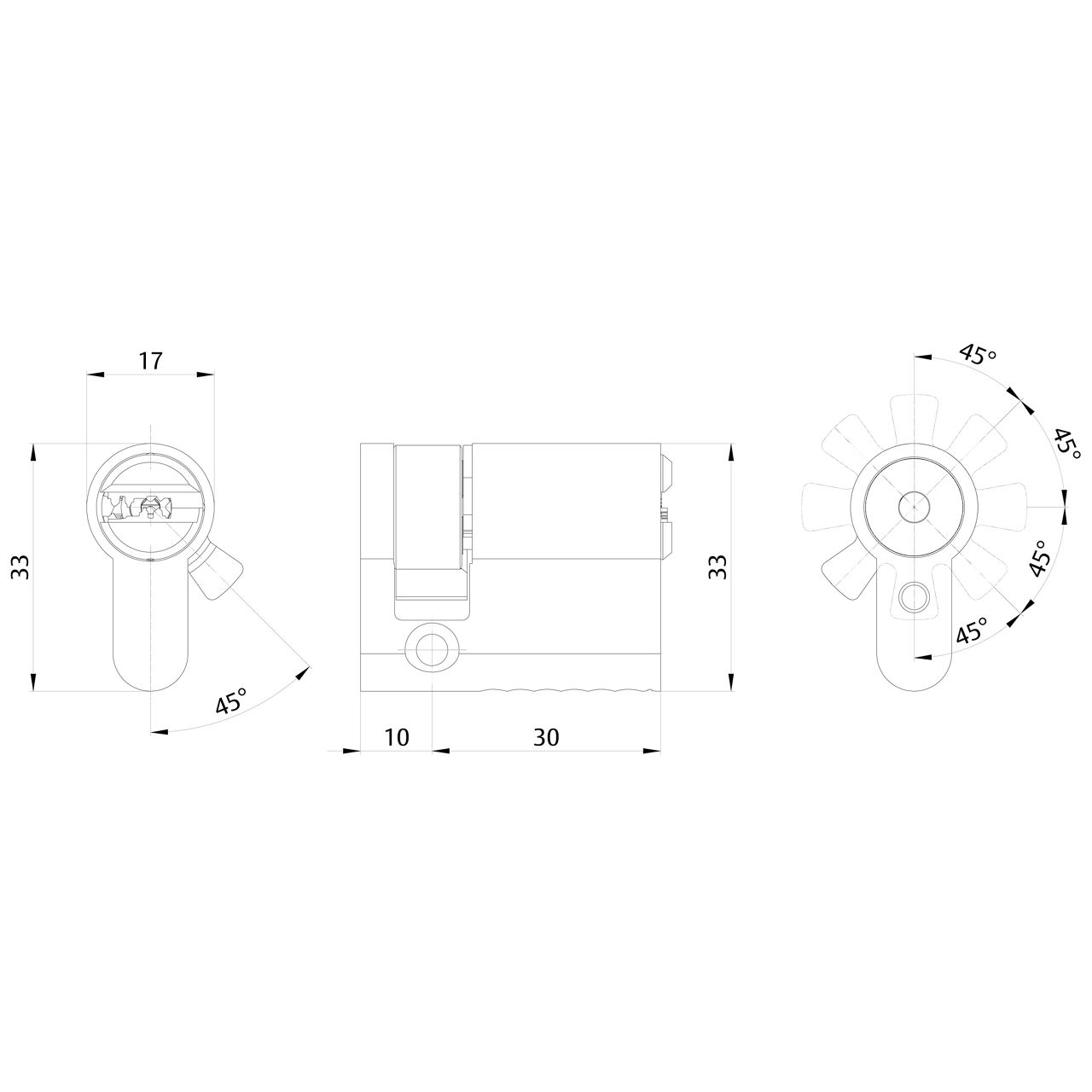

Cylinder length	Minimum: 30\|30 mm; 28\|30 mm, Maximum: 80\|80 mm; 28\|65 mm, Increments: 5 mm (starting from 30\|30 mm), Additional: 32.5\|32.5
Weight	168 g (length 30\|10 mm)
Optional functionality	Elevator version with 2 x M4 housing, Thumbturn variant
