M62
1200lbs holding force; Weather resistant
Documents, Certifications & Listings

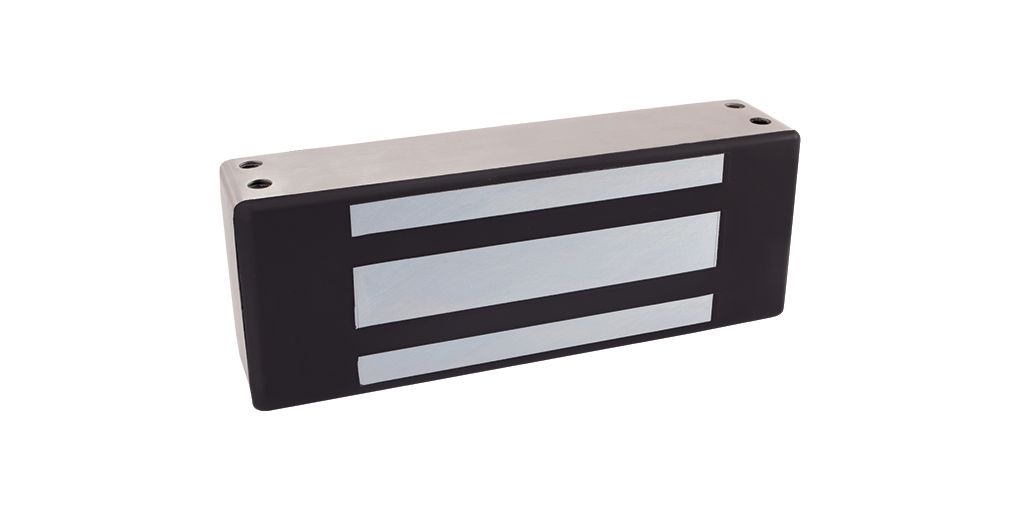

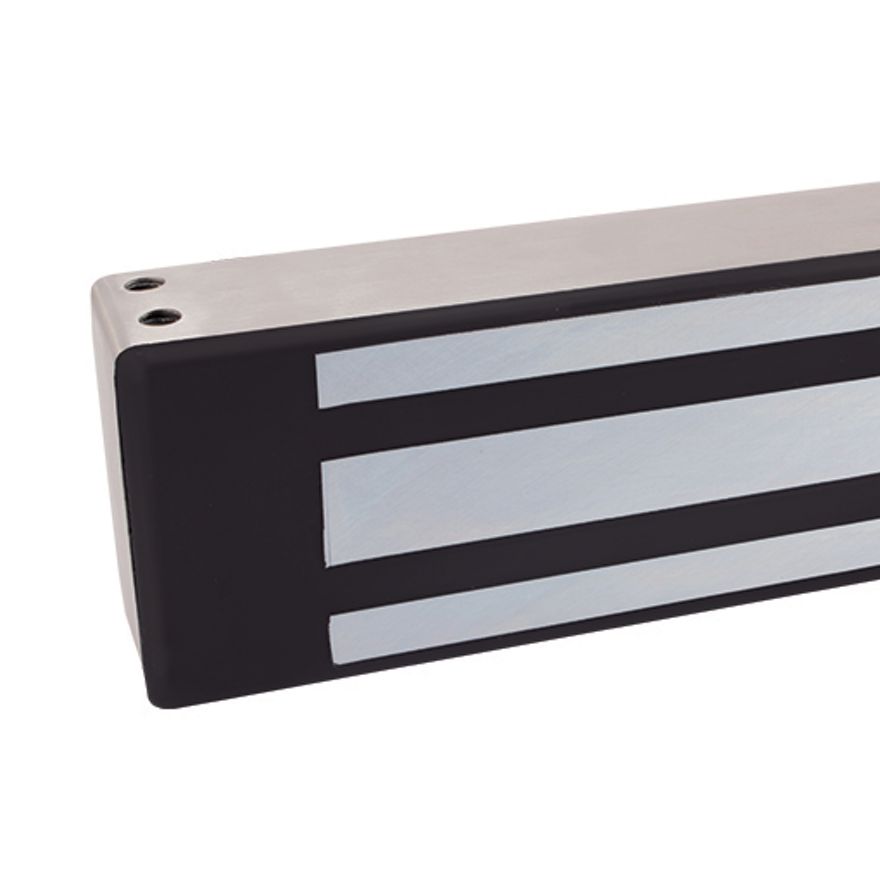

1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
Product Features
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Surface mounts easily with minimal tools
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor, integrated door position switch, conduit fitting, double and face mount models
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- Split Strike Plates and Offset Strike Plates available
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 11 lbs.
Models
| Part # | Description |
| M62 | M62 Magnalock- 12/24VDC |
| M62B | M62 Magnalock- 12/24VDC, MBS |
| M62BD | M62 Magnalock- 12/24VDC, MBS, DPS |
| M62D | M62 Magnalock- 12/24VDC, DPS |
| M62F | M62 Magnalock- 12/24VDC, Face Drilled |
| M62FB | M62 Magnalock- 12/24VDC, Face Drilled, MBS |
| M62FBD | M62 Magnalock- 12/24VDC, Face Drilled, MBS, DPS |
| M62FD | M62 Magnalock- 12/24VDC, Face Drilled, DPS |
| M62FG | M62 Magnalock- 12/24VDC, Face Drilled, Gate Conduit |
| M62FGB | M62 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS |
| M62FGBD | M62 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS, DPS |
| M62FGD | M62 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, DPS |
| M62G | M62 - Gate Conduit |
| M62GB | M62 - Gate Conduit, MBS |
| M62GBD | M62 - Gate Conduit, MBS, DPS |
| M62GD | M62 - Gate Conduit, DPS |
NOTE: An Offset Strike may be required for proper installation of the M62 in aluminum frame door applications.
