DM62
1200lbs holding force; Weather resistant
Documents, Certifications & Listings

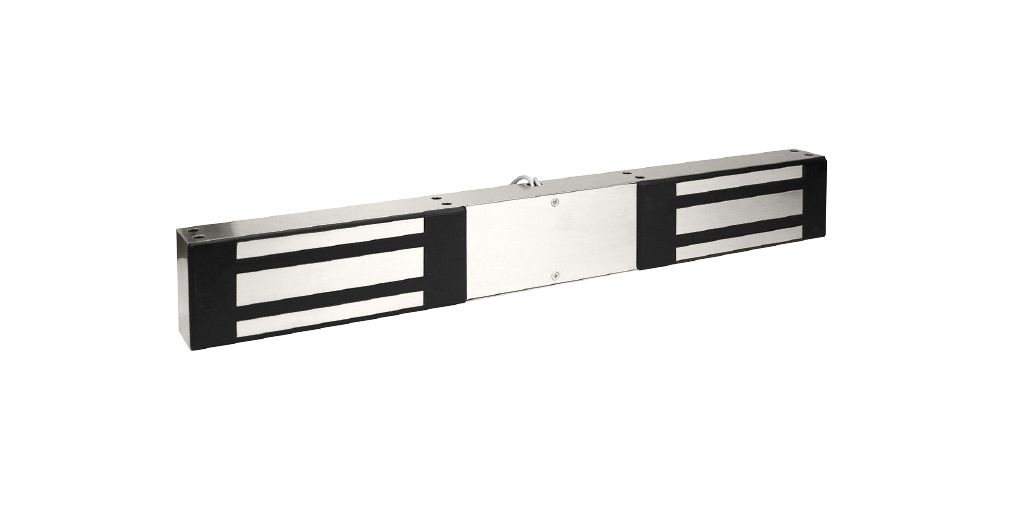

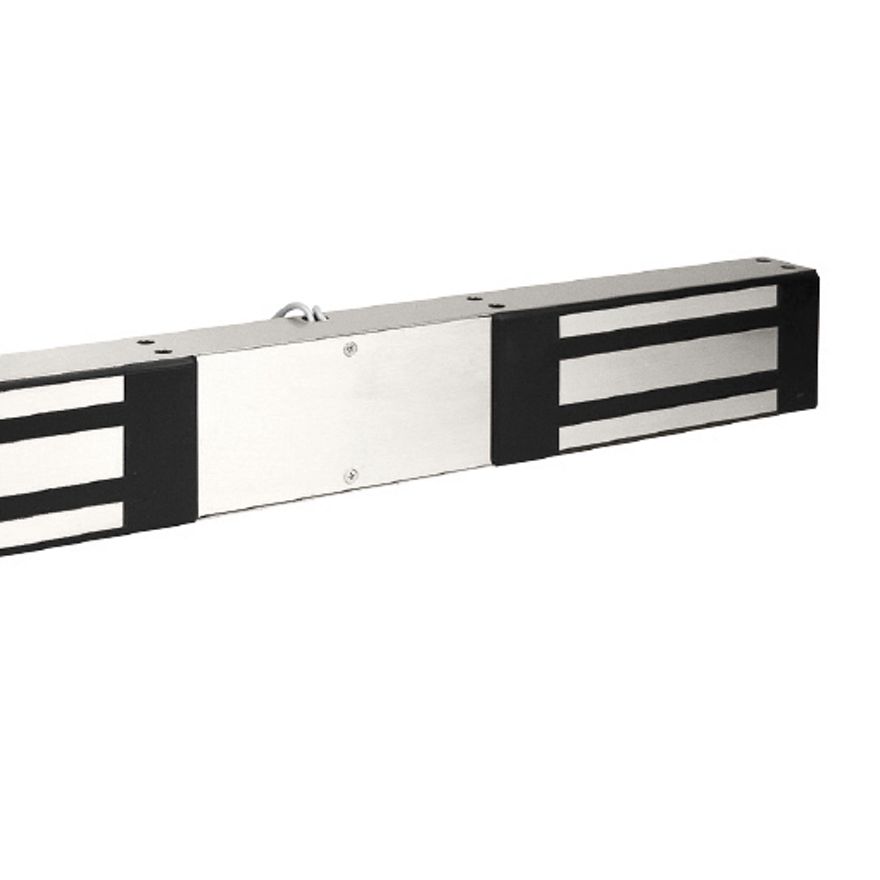

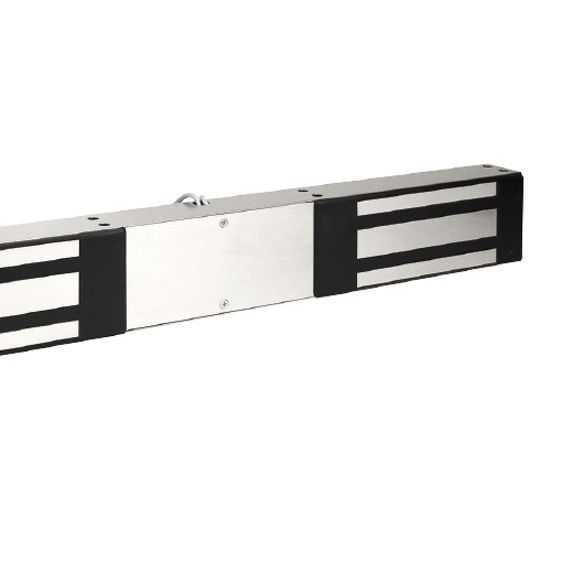

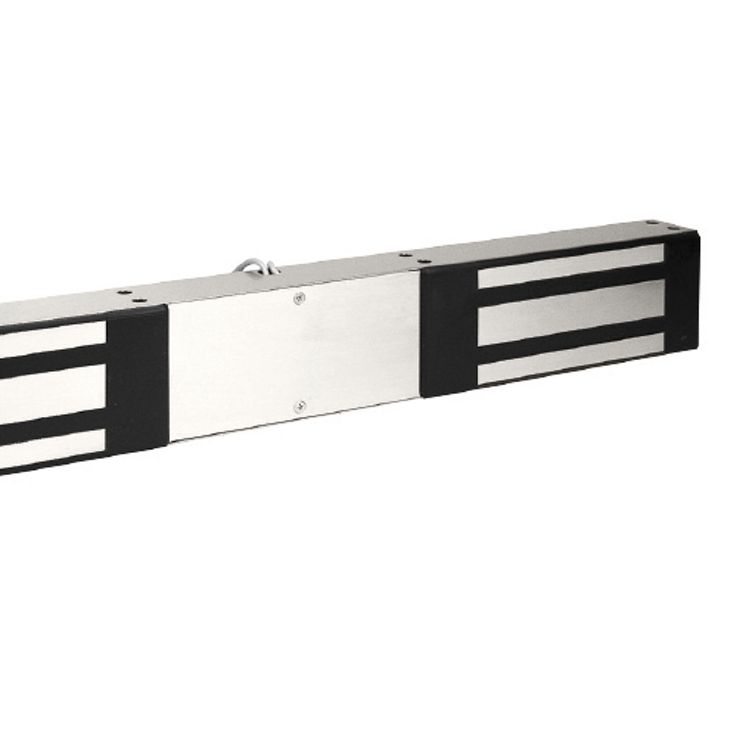

For double doors without a center mullion, the DM62 supplies two model 62 Magnalocks in a single, brushed stainless steel housing.
Product Features
- Patented instant release circuit - no residual magnetism
- Both locks can be controlled as one or individually
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- 36" of jacketed, stranded conductor cable for each lock
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg] per lock
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC per lock
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
Models
| Part # | Description |
| DM62 | M62 [Double] - 12/24VDC |
| DM62B | M62 [Double] - 12/24VDC, MBS |
| DM62BD | M62 [Double] - 12/24VDC, MBS, DPS |
| DM62B-OS | M62 [Double] - 12/24VDC, MBS w/ Offset Strike |
| DM62D | M62 [Double] - 12/24VDC, DPS |
| DM62-OS | M62 [Double] - 12/24VDC w/ Offset Strike |
| ASCWB-DM62CL | Alum 1-1/2" Spacer - Concrete/Wood Bracket, DM62, Clear |
NOTE: A pair of Offset Strikes may be required for proper installation of the DM62 in aluminum frame door applications.
