ASSA ABLOY RT1000 Spiral High-Speed Door

Optimised for demanding, high‑speed environments, the ASSA ABLOY RT1000 Spiral High‑Speed Door combines rapid operation, thermal insulation, and serviceability with advanced safety and security. Designed for exterior industrial applications, the RT1000 utilises high‑performance spiral door technology to meet the operational demands of modern logistics, manufacturing, and distribution facilities.

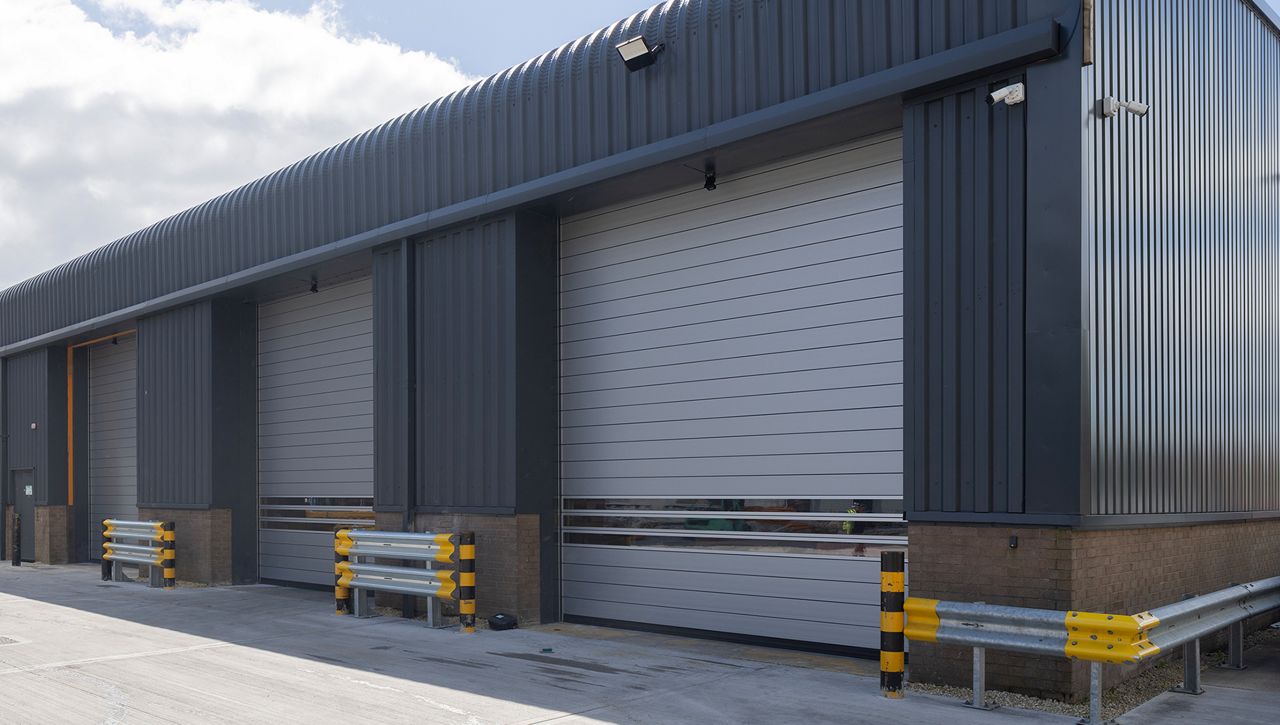

Exterior view of an industrial high-speed spiral door with horizontal vision panels, installed in a modern concrete building.

1 of 6

Rapid, smooth operation
Designed for high-speed access, the RT1000 moves effortlessly with a high-velocity glide assembly, optimized spiral curve and smooth inlet curve.
Energy-efficient
With 50 mm high-density foam insulation, side frame and lintel sealings and double-glazed, windows framed with anodized aluminum, the RT1000 helps maintain climate control while enhancing security.
Built for the future
This is the future of spiral doors where high performance meets long-life components and a service-friendly design.
Sleek, functional design
A single-track spiral system and clean flush curtain design provide a modern, streamlined look with no hinges.

Reinventing the Spiral Door Concept

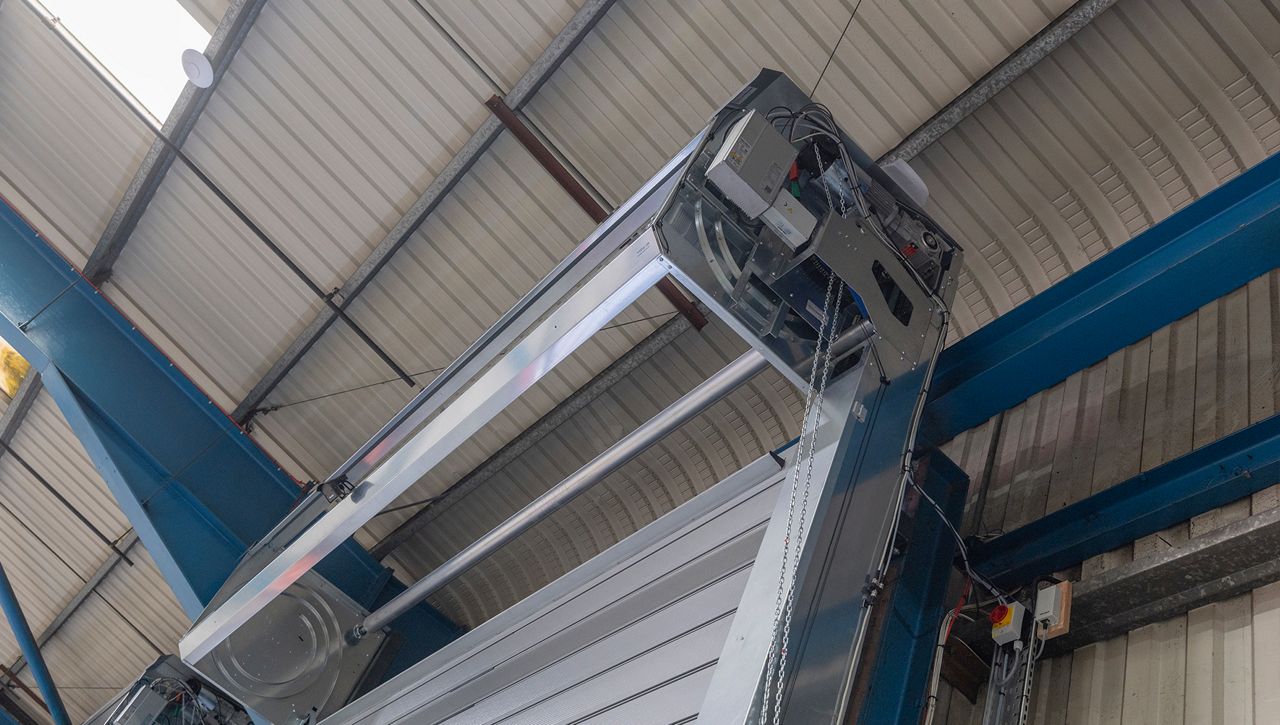

At the core of the ASSA ABLOY RT1000 spiral door is an innovative operating system featuring a single‑track spiral design with high‑velocity gliders. This streamlined and robust mechanism enables smooth, rapid door movement while minimising wear and downtime. By reducing mechanical complexity, the RT1000 ensures reliable performance in high‑traffic environments where speed and continuity are critical.

Designed for Energy Efficiency and Sustainability
Engineered with an integrated drive unit, the RT1000 spiral high‑speed door is compact and space‑saving, allowing for easy integration into new and existing buildings. For industrial facilities exposed to wind, weather, and temperature fluctuations, the insulated and reinforced door panels help minimise energy loss, improve climate control, and enhance wind resistance. This balanced design supports both operational efficiency and sustainability goals.

Key Features of the ASSA ABLOY RT1000 Spiral Door

Designed to combine the best attributes of an exterior industrial door, the RT1000 includes:

High‑velocity gliders for fast, smooth operation
Integrated drive unit for space efficiency
Quick brake release for enhanced safety and maintenance access
No visible hinges for improved durability and aesthetics
Long‑life components engineered for intensive use
Easy‑access door structure for fast and efficient servicing

0:00

0:00 / 0:55

Opening speed max 1,75 m/s
Door dimensions max. 5000 x 5000 mm
Wind Resistance (EN12424)

class 3 DW 4000 mm

class 3 without window lamella, 4000 < DW 5000 mm

class 2 with window lamella

Heat transition coeffficient EN12438

Door blade 1,4 W/(m²K)

Complete door (5 x 5 m, without windows) 2,1 W/(m²K)

Noice reduction 25 dB
Foamed sandwich panel with coated steel cover (50 x 200 mm), RAL 9006 – standard, Painting in RAL colours
Window slats double glazed, framed with anodized aluminium
