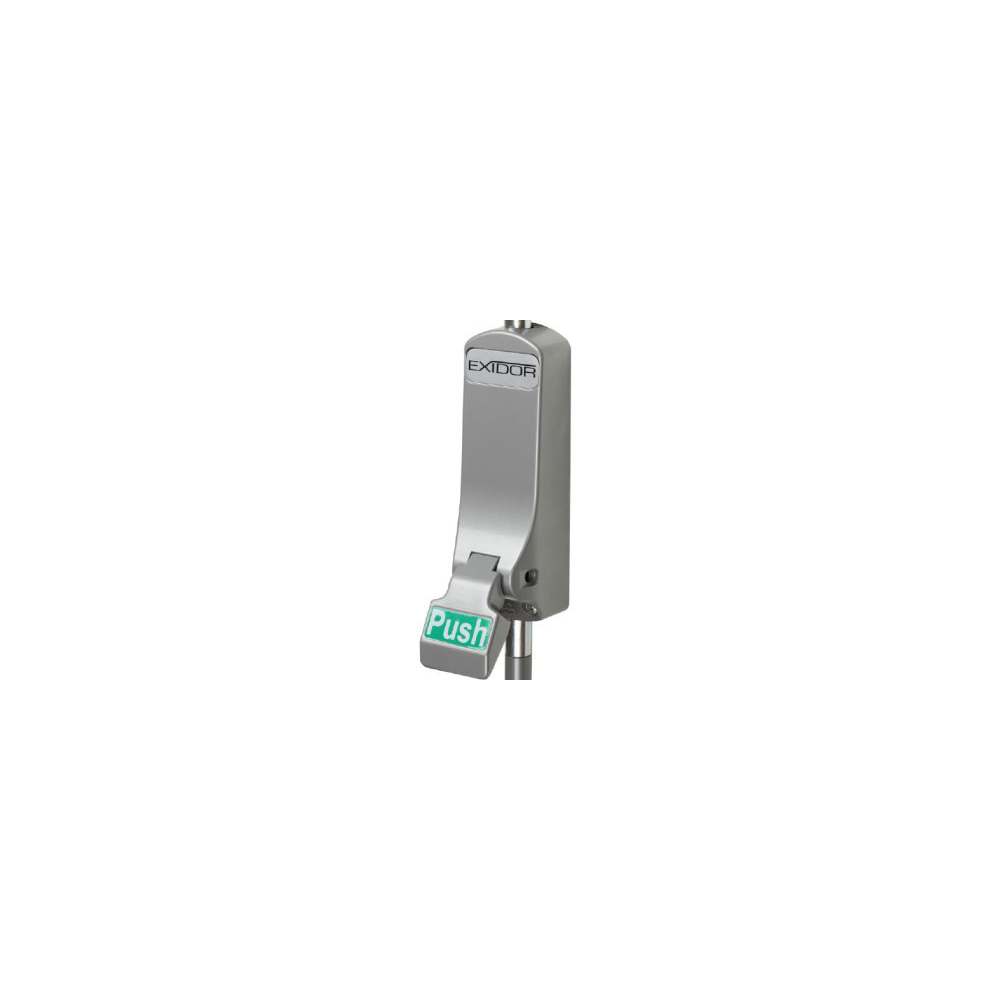

Exidor 293 push pad bolt
Essential panic and exit hardware
Unit type: Emergency unit
Activation: Push pad
Door type: Single doorset, Rebated double doorset, inactive leaf, Plain meeting stile double doorset, either leaf
Door opening: Outward
Projection: 80mm from door face
Mounting method: Surface-mounted pad
No. of locking points: 2 locking points
Bolt style: Shoot bolts
Durability: 200,000 cycles
Max door width: 1220mm
Max door mass: Up to 200kg
Operation: Pushing the pad down into the door face retracts the bolts. The bolts remain retracted until automatically released on closing of the door.
Finish: SIL or SSE (other finishes on request)
Accessories: See panic hardware accessory section for items such as alarm, hold back dogging device and range of alternative keeps
Suitable for fire doors: Timber FD120, metal FD240
