ASSA ABLOY
  • Magnetic Locks
  • Magnetic Locks 540 kg

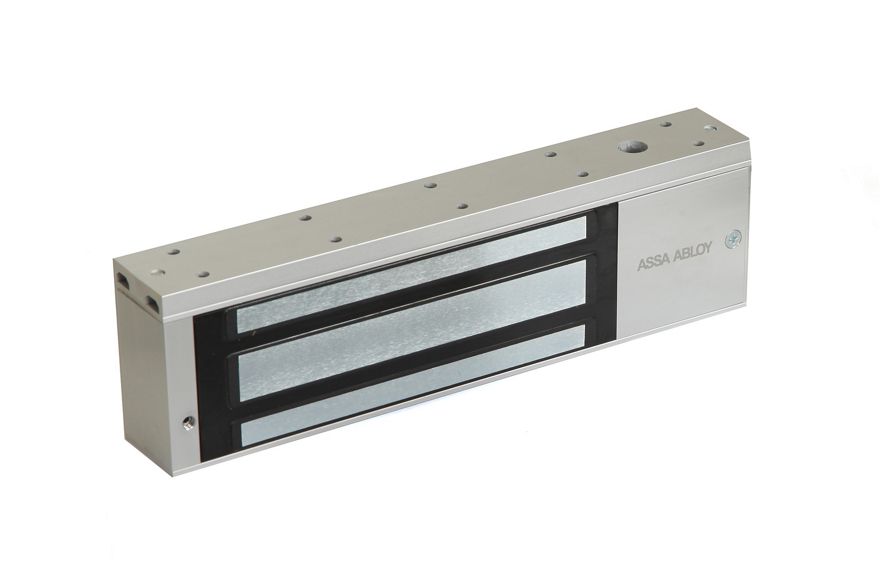

MG-500MS

Characteristics:

  • Suitable for use on aluminium,timber and steel doors
  • Compact case size and clean aesthetics
  • Fail safe
  • Magnetic holding force 540 kg
  • User selectable dual voltage
  • 12 V DC
  • CE marked to EMC Directive
  • Monitoring available
  • Built in voltage spike suppressor

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Holding Force:

540kg

Supply Voltage:

12 vDC

Nominal Current:

480 mA @ 12 VDC

Monitoring:

Relay dry contact with LED.

Door Gap:

Maximum 3mm (1⁄8").

Magnet Housing:

Satin aluminium.



  • 98c9e-mg-500msdatasheet-en(PDF, 232 KB)
  • 5b2ab-mg-500msdatasheet-tr(PDF, 233 KB)
