    ASSA ABLOY HS9120GAT Cleanroom Door

    • Manufacturing
    • ASSA ABLOY

    The right door for the right cleanroom

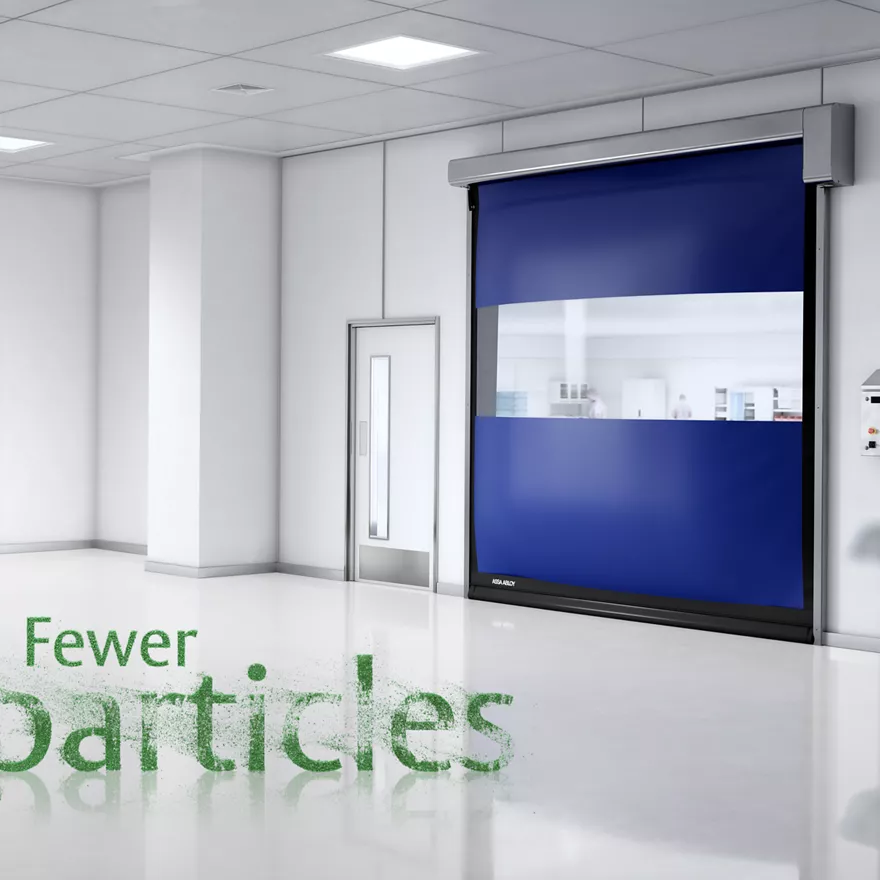

    When you need an airtight, high-speed door for cleanrooms that only need to meet lower ISO certification, look no further than the ASSA ABLOY HS9120GAT. It's the only one on the market that's specifically made for GMP Class D and ISO 8 certified cleaner rooms.

    It delivers on the performance, efficiency and reliability you expect from ASSA ABLOY, but without the ultra-high specifications that can cause cleanroom costs to rise. With so many challenges to maintaining a cleaner room environment, your entrance solution should never be one of them. With us, it never is.

    Downloads

    1 of 6

    Cookie consent

    This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

    *Your choice will be saved in a cookie until you have closed your browser.

    • Door dimensions: DW min/max: 500/4000 mm and DH min/max: 500/4000 mm
    • Inside usage
    • Water penetration, EN12425– Class 2
    • Thermal transmittance, EN 12428 6,02 W/(m²K)
    • Opening/Closing speed up to 2.3/0.5 m/s
    • Wind load resistance, EN12424 – class 1 (300N/m²) maximum wind load while closing 50 N/m²
    • Air permeability, EN-12426 – Class 3 overpressure, class 1, underpressure
    • Stainless steel 304/hex screws for easy clean
    • Advanced foam curtain (insulated door curtain - optional)
    • Break-away and automatic reset system
    • Soft-bottom profile
    • SPOT ON opening system (optional)
    • Control unit enclosure
    • Fully supported by ASSA ABLOY service
    • Available in a range of colors
