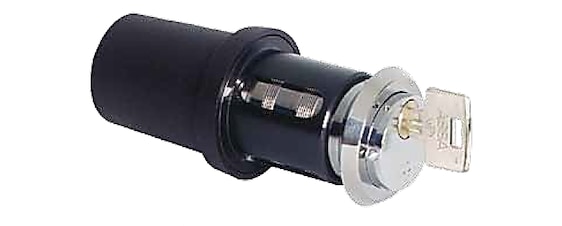

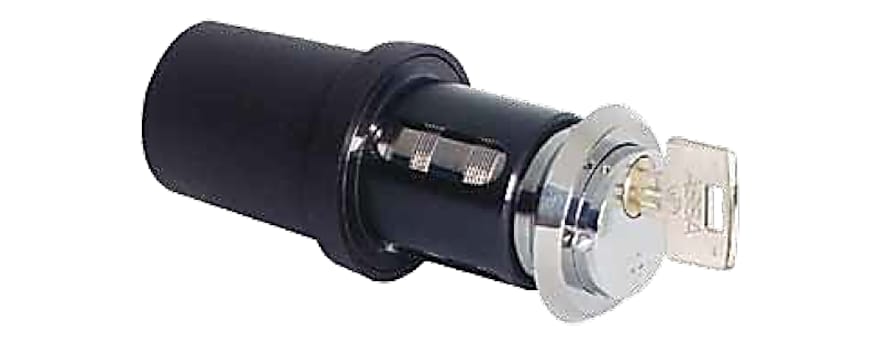

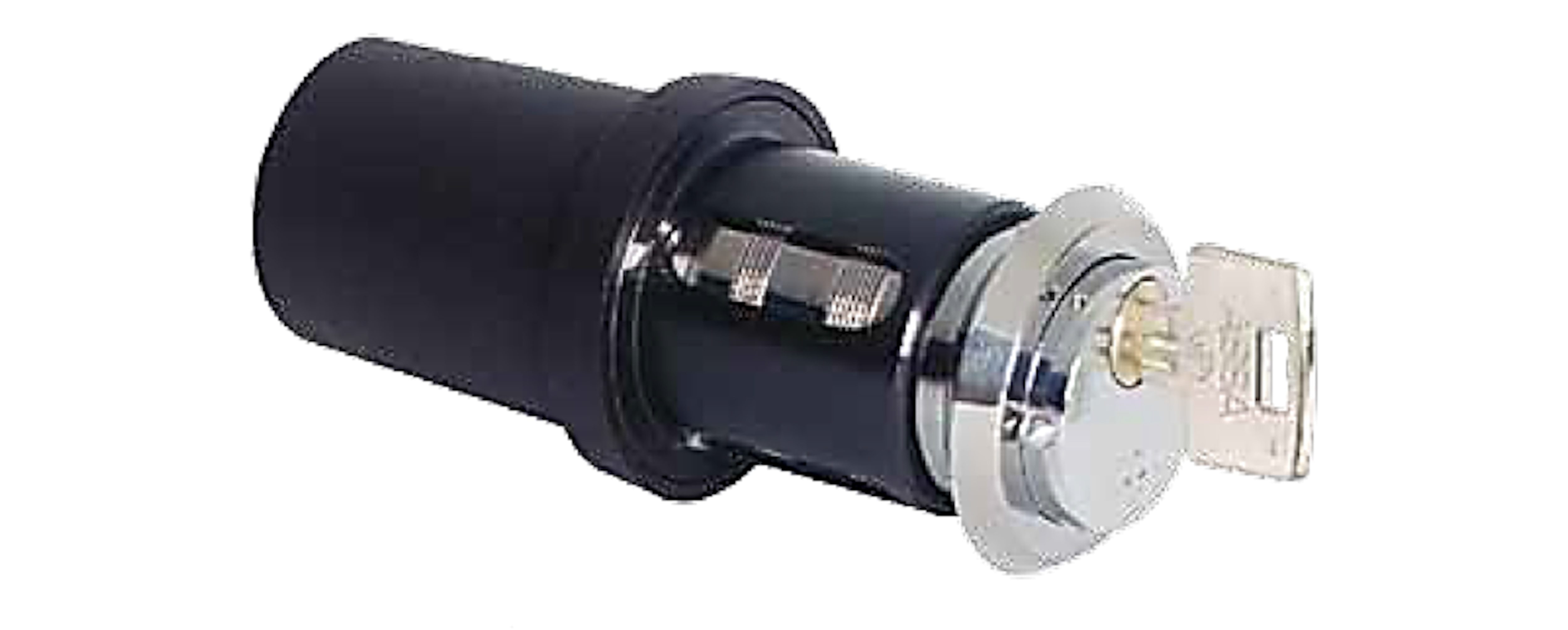

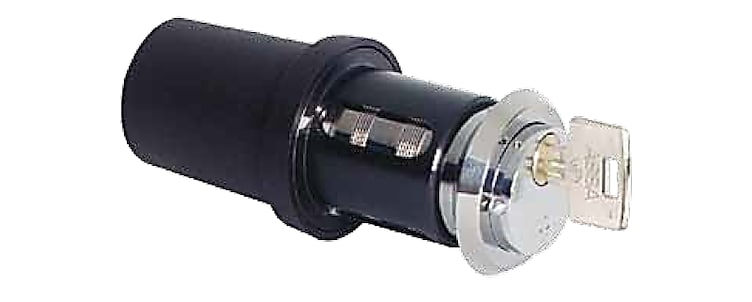

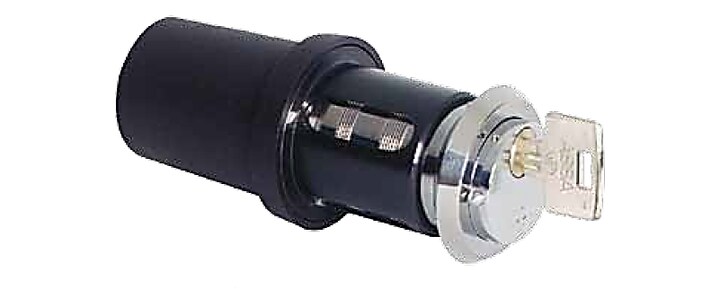

4488 - Door key deposit
Order information
Article number: 819970*
*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.
Only a full article number is valid ex. XXXXXX-YYY-ZZZ.
Application
Recommended as a lock complement in hall and exterior doors of apartment buildings, special housing for the elderly and disabled, townhouses, etc. Primarily used for temporary storage of apartment keys, for example when the resident is not at home at the time of scheduled apartment maintenance.
You mount the cover on the inside of the door key deposit, which is designed so it can be adjusted to the right door thickness during installation.
Features
- ASSA door key deposits are avaliable for door thickness of 37mm to 97 mm. The deposit should be mounted in the door blade at the top corner on the hinge side.
- Protects against picking and physical attack
Function
When maintenance has been agreed on and notified:
1) The resident places the apartment key in the door key deposit.
2) The maintenance person
- Opens the door key deposit from the outside with the maintenance key.
- Takes out the apartment key from the deposit box and opens the door.
- Locks the door and returns the key in the door key deposit.
3) The resident
- Removes the key from the inside of the door after completed maintenance.
Range
4488 Cylinder without keys
Door key deposit, excluding cylinder 89.
Door key deposit, for door thickness 37–97 mm.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
4425 - Cylinder set for panic exit device (EN 179)
Article number: 819969*
*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.
Only a full article number is valid ex. XXXXXX-YYY-ZZZ.Application
For use with ASSA Panic exit devices. Cylinder kit for complete assembly.
Specification
The cylinder is fixed to the lockcase with hardened steel screws, supplied with the accessory set.
ASSA accessories must be used.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
4418 - Wall key deposit
Article number: 819968*
*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.
Only a full article number is valid ex. XXXXXX-YYY-ZZZ.Application
The ASSA Wall key deposit is designed for temporary storage of individual entrance keys to buildings or, integrated in designated building areas. Authorized maintenance or emergency personnel may gain access to the building using a unique maintenance key to open the deposit and take out the entrance key.
Function
Maintenance providers and emergency services are authorized to open the wall key deposit with the unique maintenance key of the building. They use the entrance key to gain access to the building and perform the intended maintenance or carry out emergency operations. Afterwards, the building is locked and the maintenance key is returned to the wall key deposit.
Features
To prevent vandalism, the wall key deposit should be installed in a concrete wall of quality K250 or higher. Install at least 1,500 mm above ground level.
The wall key deposit must incorporate an approved ASSA high-security cylinder where the keys have a minimum key control level of SELECTED to ensure protection against unauthorised copying.
For optimized security, the cylinder and the key of the wall key deposit should not be included in the building’s master key system. The wall key deposit can be equipped with a built-in microswitch for alarm indication.
Protected against vandalism
- To be used in combination with a specially designed, approved high-security cylinder such as ASSA dp
- Protected against picking and manipulation. • Designed primarily for mounting in a concrete wall.
- Steel tube Ø 45 mm, protected against corrosion.
- Suitable accessories for mounting include an expander bolt or a washer with a threaded bolt.
Range
4418 ASSA dp Cylinder
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
4480 - Utility Lock
Application
ASSA Utility locks are used for any applications where locking is desired but regular locks or padlock s are not possible. ASSA utility locks can be used for windows, patio doors and also for office furniture.
Function
ASSA utility locks are fitted with a push-button cylinder that is locked together when pushed into the strike plate. The technique is excellent for usage with movable items like drawers and light doors that did not come with built-in locks. The key can be retracted both in locked and unlocked position. ASSA Utility locks can be combined in a Master key system and are available with a variety of cylinder ranges.
Features
The lock must be installed in the correct position depending on whether the door/window opens inward or outward. Check the thickness of the window frame to ensure that it can hold screws of this length.
Fitting
ASSA window locks have concealed fittings. The fitting screws cannot be accessed when the window is locked.
Versions
The window lock can be combined with ASSA Twin or ASSA Max cylinders. It is suitable for master keyed, keyed different and keyed alike cylinders.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
