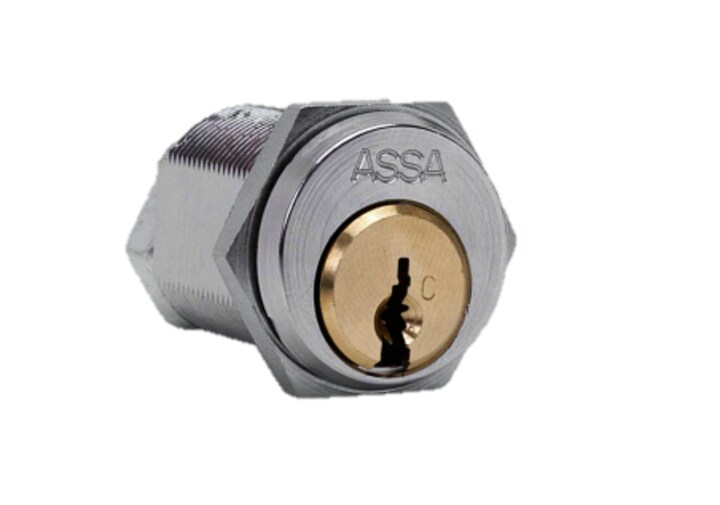

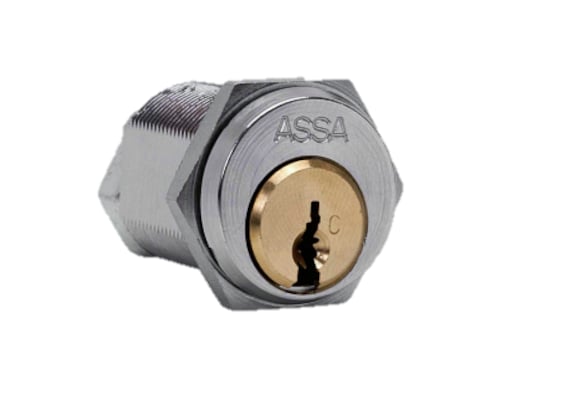

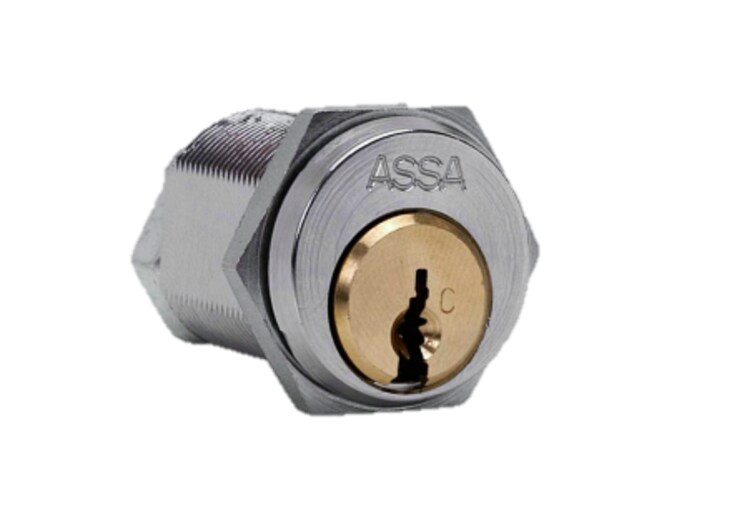

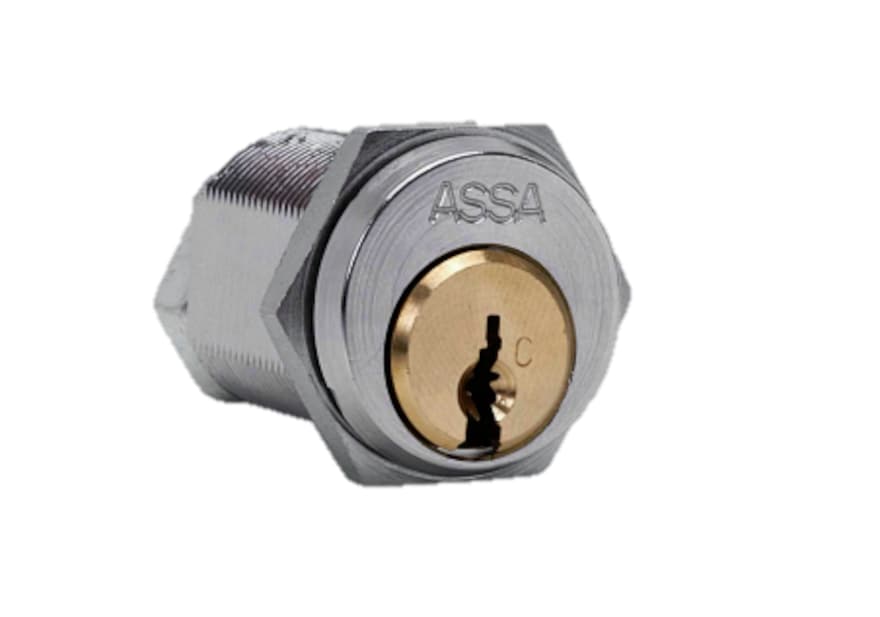

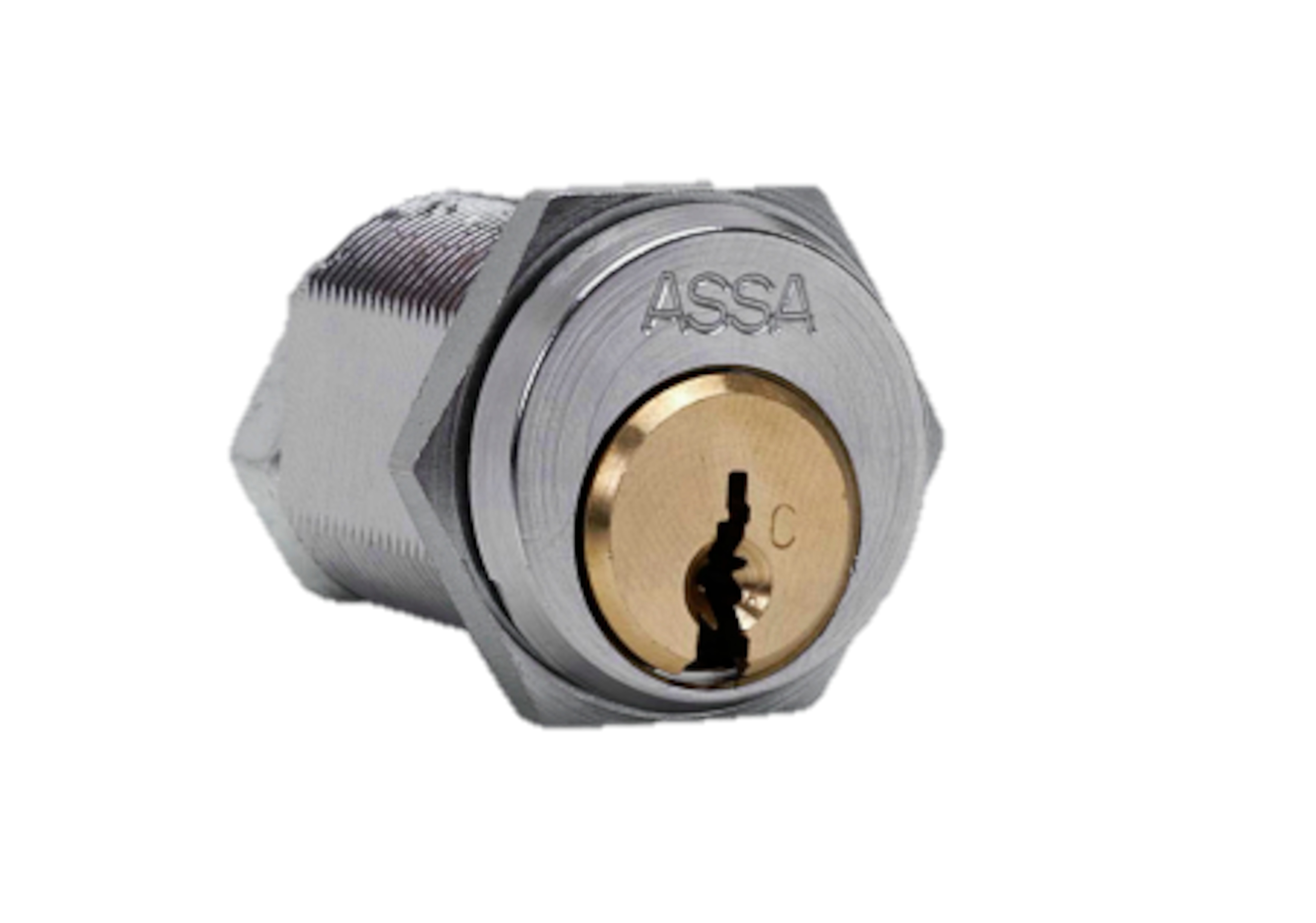

2471 - ASSA camlocks Ø22 mm
Order information
Article number: 820010*
*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.
Only a full article number is valid ex. XXXXXX-YYY-ZZZ.
Application
ASSA cam locks are cylinder locks for installation in cabinet doors, which can be implemented in a master key system together with other cylinder shapes.
This solution adds convenience to many installations by allowing users to open entrance doors, office doors and for instance a postal locker with a single key. Other areas where cam locks are perfect to install are electrical cabinets, recreation areas, schools and storage facilities in shops.
Function
ASSA cam locks are fitted into cabinet doors and will be locked by a catch that is operated by the key. ASSA camlocks are easy to adjust to door thicknesses of up to 23 mm. ASSA cam locks are available in different security levels depending on the users’ needs.
Features
Catches must be ordered separately. For alternative designs of catches, contact your local ASSA distributor. Cylindering helps to build up a distance in a thin door and support the installation.
A nail plate helps to support installation so that the cylinder will not turn when installed in the door.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
2480 - Utility Lock
Application
ASSA Utility locks are used for any applications where locking is desired but regular locks or padlock s are not possible. ASSA utility locks can be used for windows, patio doors and also for office furniture.
Function
ASSA utility locks are fitted with a push-button cylinder that is locked together when pushed into the strike plate. The technique is excellent for usage with movable items like drawers and light doors that did not come with built-in locks. The key can be retracted both in locked and unlocked position. ASSA Utility locks can be combined in a Master key system and are available with a variety of cylinder ranges.
Features
The lock must be installed in the correct position depending on whether the door/window opens inward or outward. Check the thickness of the window frame to ensure that it can hold screws of this length.
Fitting
ASSA window locks have concealed fittings. The fitting screws cannot be accessed when the window is locked.
Versions
The window lock can be combined with ASSA Twin or ASSA Max cylinders. It is suitable for master keyed, keyed different and keyed alike cylinders.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
2459 - Removable core
Article number: 820029*
*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.
Only a full article number is valid ex. XXXXXX-YYY-ZZZ.Application
ASSA Cam Locks are also available with a removable core feature. This feature allows cores to be changed out in seconds, to provide an entirely new keying combination. For applications that may require instantaneous re-keying due to lost or stolen keys, or where periodic re-keying is done as a matter of good business practice, ASSA's Removable Core Cam Locks save valuable time and money.
Removable Core Cam Lock Benefits:
- The core (inner lock cylinder) can be removed and replaced in seconds using only a special control key.
- User keys will operate the lock but will not remove the core.
- Removable core cam lock cylinders are available with hardened inserts for drill protection.
- Products can be keyed alike and master keyed with similar ASSA products.
- Clockwise or counter clockwise operation, key retaining only.
- The removable core feature is also available in similar products including Padlocks, Cabinet Locks and Switch Locks.
- Standard 3/4 inch Cam Lock hole prep.
Surface treatment
- Satin Chrome (213)
- Polish Chrome (211)
- Polish Brass (220)
- Satin Brass (221)
- Brown oxid (044)
Warranty
ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
