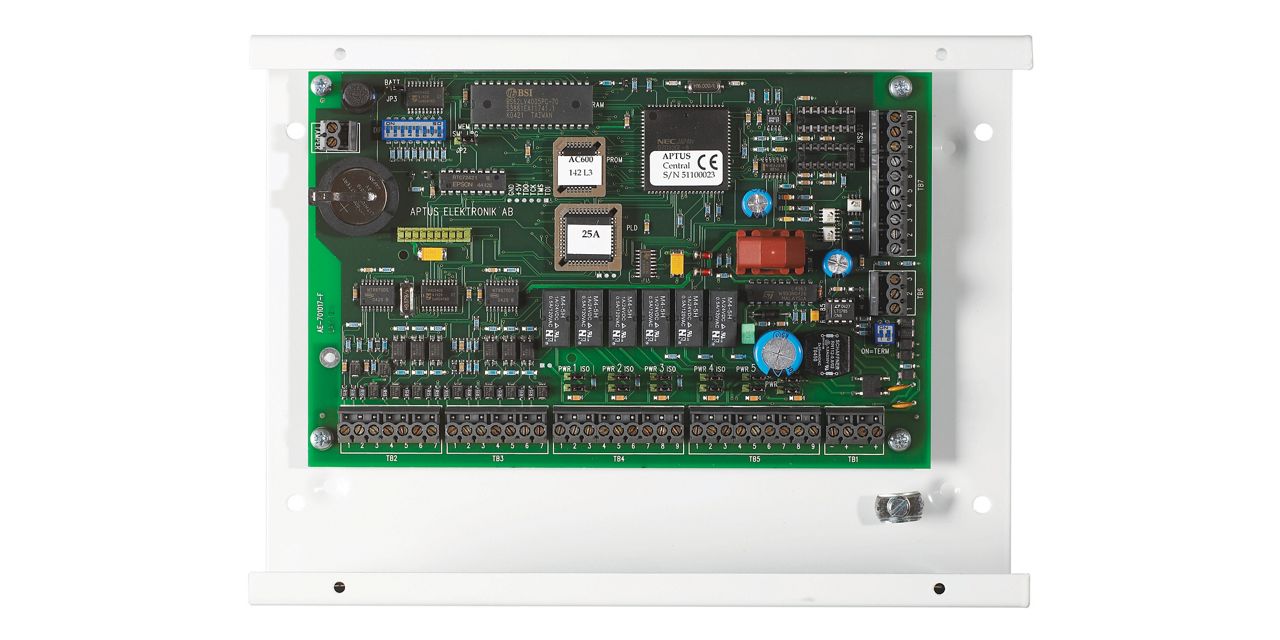

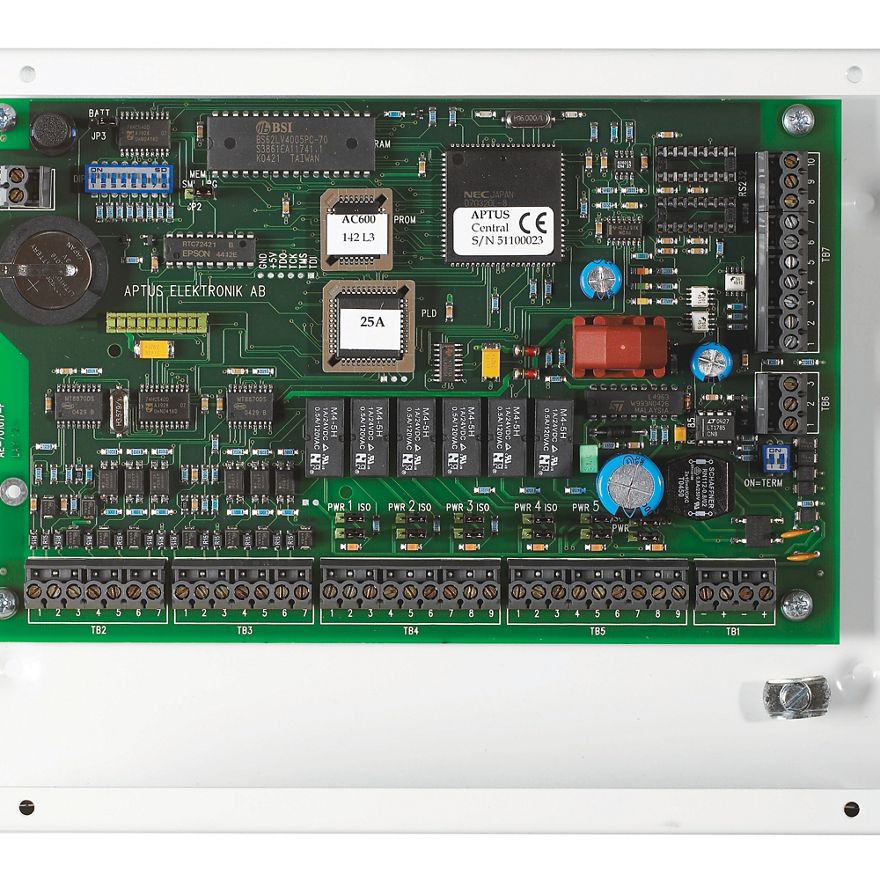

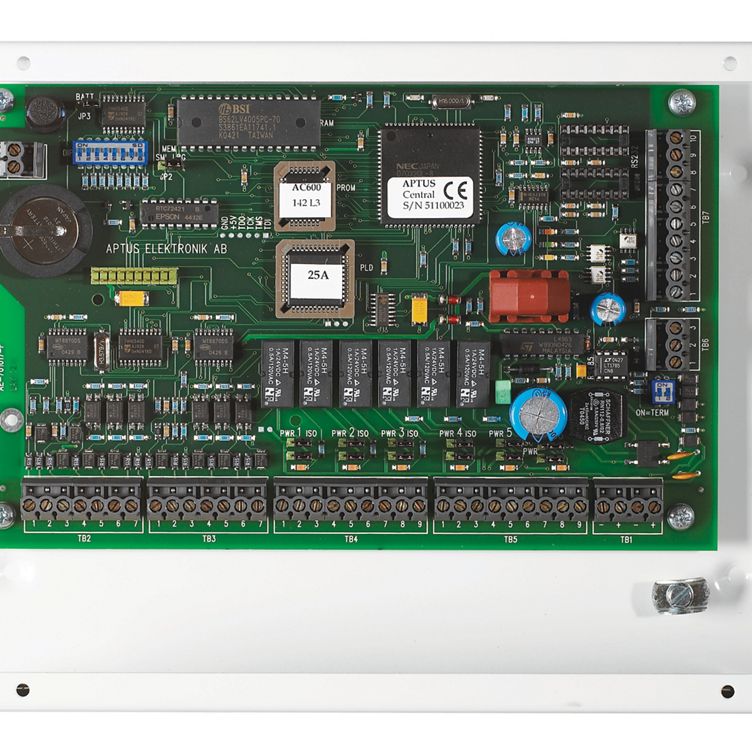

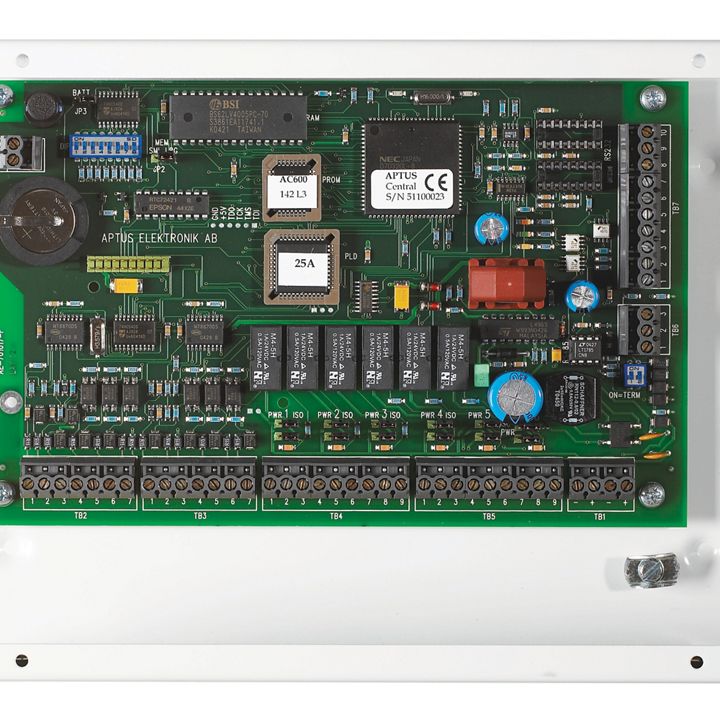

AC 700M
Master control unit for four doors with encrypted communications.
Master control unit for four doors with encrypted communications.
Features and advantages
- Communication between the computer and control unit is encrypted using a 128-bit key.
- Communication between the control unit and reader is encrypted using a 32-bit key.
- Control unit with dynamic memory.
- Up to 30,000 users.*
- Registration of up to 6,500 events.*
- Up to 255 time zones.*
- Integrated real-time clock.
- Capable of controlling four doors.
- Two readers per door can be connected (in and out readers).
- Six independently programmable relay outputs.
- Six independently programmable inputs.
- All relays can be set to dry contact or for use of control unit power supply.
- Battery back-up (memory) and tamper switch.
- Can be set via Windows software (Multiaccess).
- IP communications via AANI 3 (option).
- Centralized communications with MultiServer module.
- Functions: door access, alarm bypass, group alarm bypass, alarm reconnection, anti-passback, interlock system, duress code, list people in building, acknowledgement of external alarm/panic alarm.
- Time zone functions: Time and input controlled, plus reader controlled.
- Compatible with AD 6X XX, AD 7X XX and Öppna series readers.
- If AD 7X XX readers, Låsa 1169 or Öppna readers are selected, a total of four door environments can be connected.
- If AD 6X XX readers are selected, only two door environments can be connected. To add two further door environments with AD 6X XX readers, purchase an extension card.
