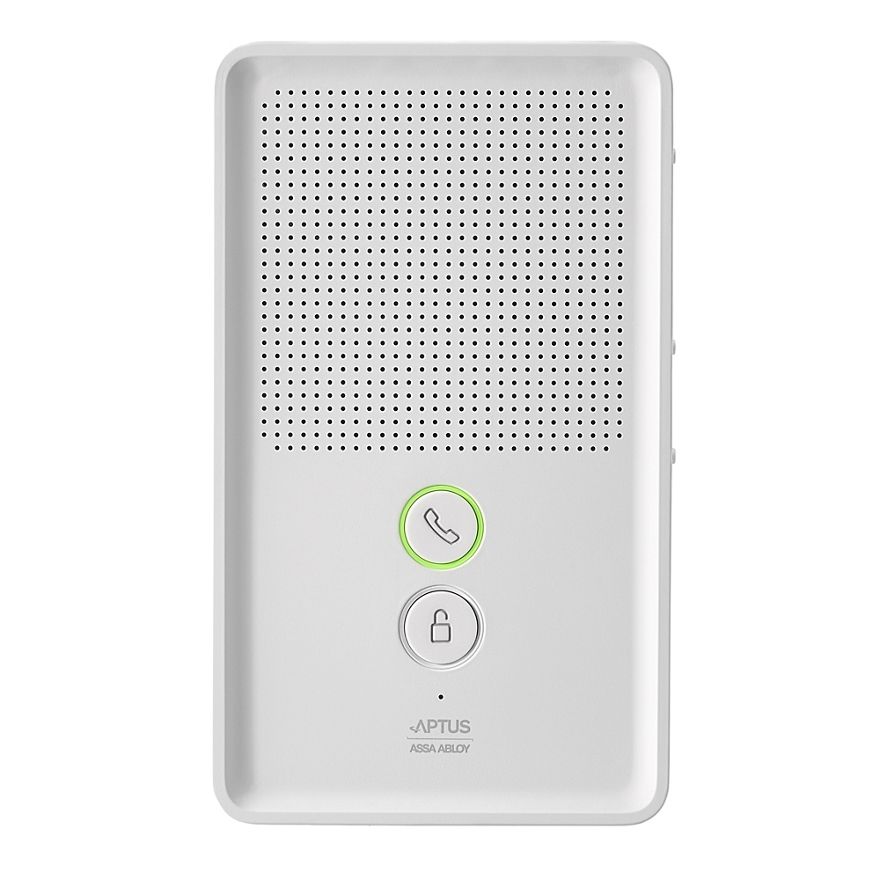

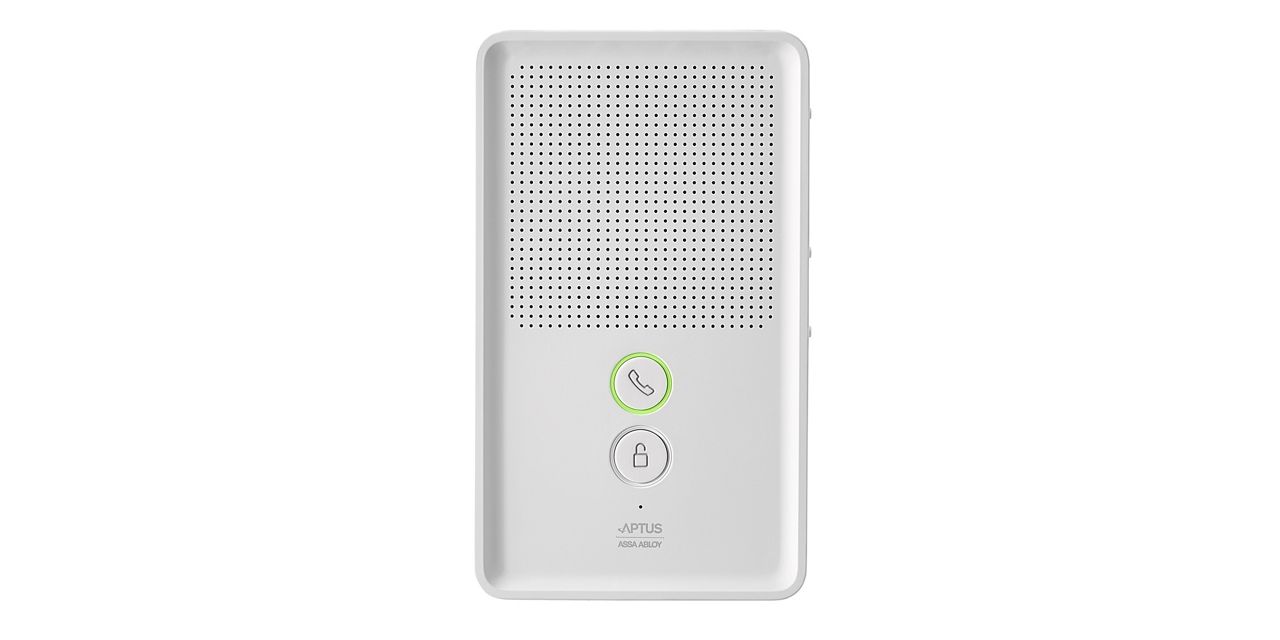

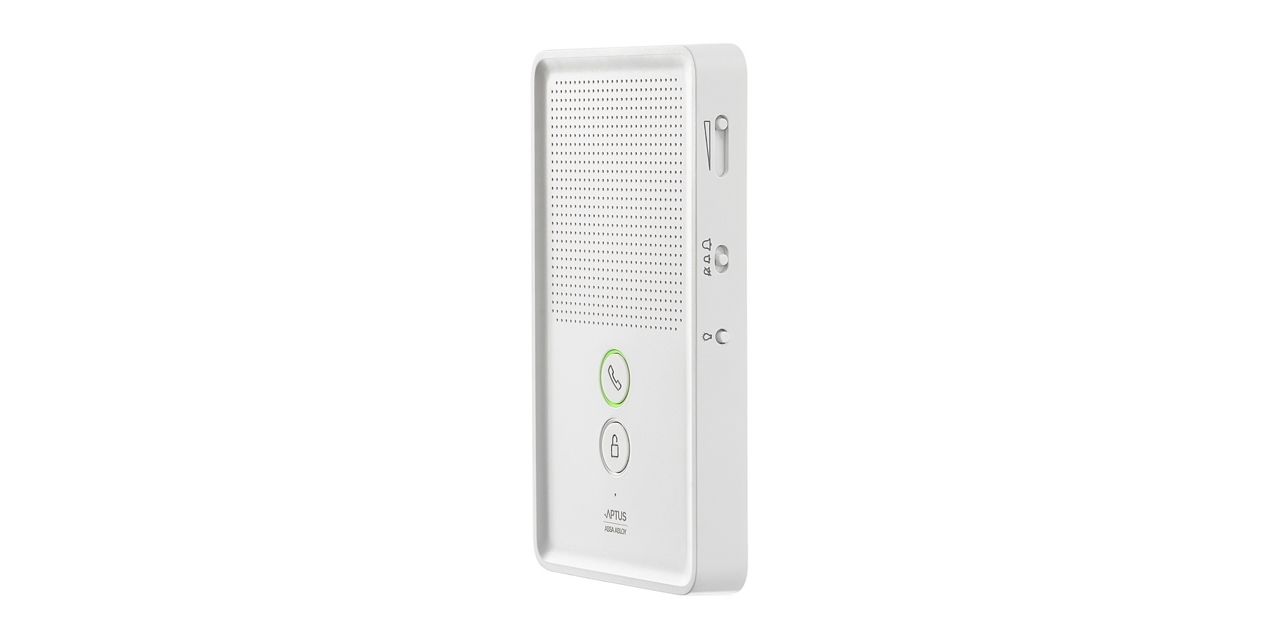

Svara 23

When someone calls on the entry phone, a signal is transmitted to the Aptus Svara 23. The tenant answers and can either open the door or refuse entry.

When someone calls on the entry phone, a signal is transmitted to the Aptus Svara 23. The tenant answers and can either open the door or refuse entry.

Features and advantages

  • Fixed apartment phone for indoor use.
  • Speaker phone without handset.
  • Adjustable speaker volume.
  • Adjustable ring signal volume.
  • Can also be used as a doorbell.
  • Alternative sound signal.
  • Headset port.
  • Output for activation of external equipment via the ring signal.
  • External equipment can be activated via a button.
  • Up to 600 apartment phones in each system.
  • Easy opening function.
  • Connection in loop or star network.
  • Compatible with AT 21 and AT 20.

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

ELECTRICAL DATA
Power supply V DC 24, supplied by control unit
Consumption, Watts min 0,36 max 2,64*
Amps min 0,015 max 0,110*



ENVIRONMENT

Temperature ˚C 0 to +40
Humidity% 10 to 90



PRODUCT DATA

Max. number of apartment phones 600



CONNECTION TO CONTROL UNIT

Styra 3000 Yes
500XX Yes**
600XX Yes**
700XX Yes**



DIMENSIONS, mm

Width 107
Height 181
Depth 21
Net weight in kg 0,4

* The max. value refers to a maximum of one Svara 23 unit per loop. **Compatible with older AT10, AT30 and AT70 units, but full function is not guar- anteed.
