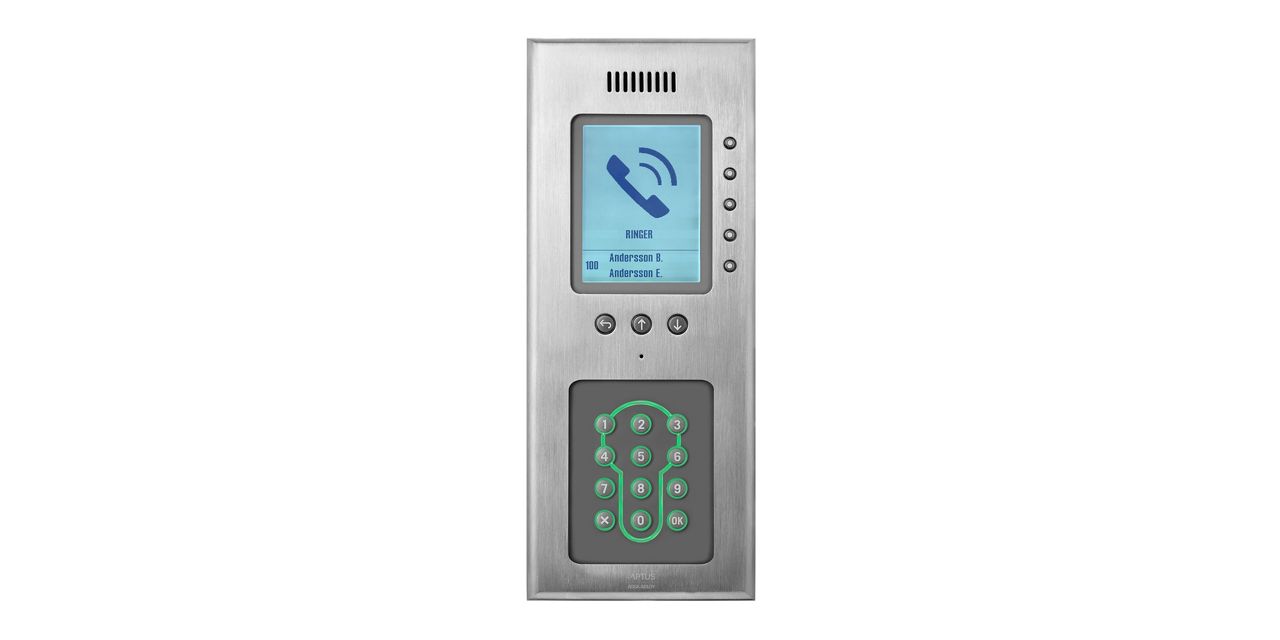

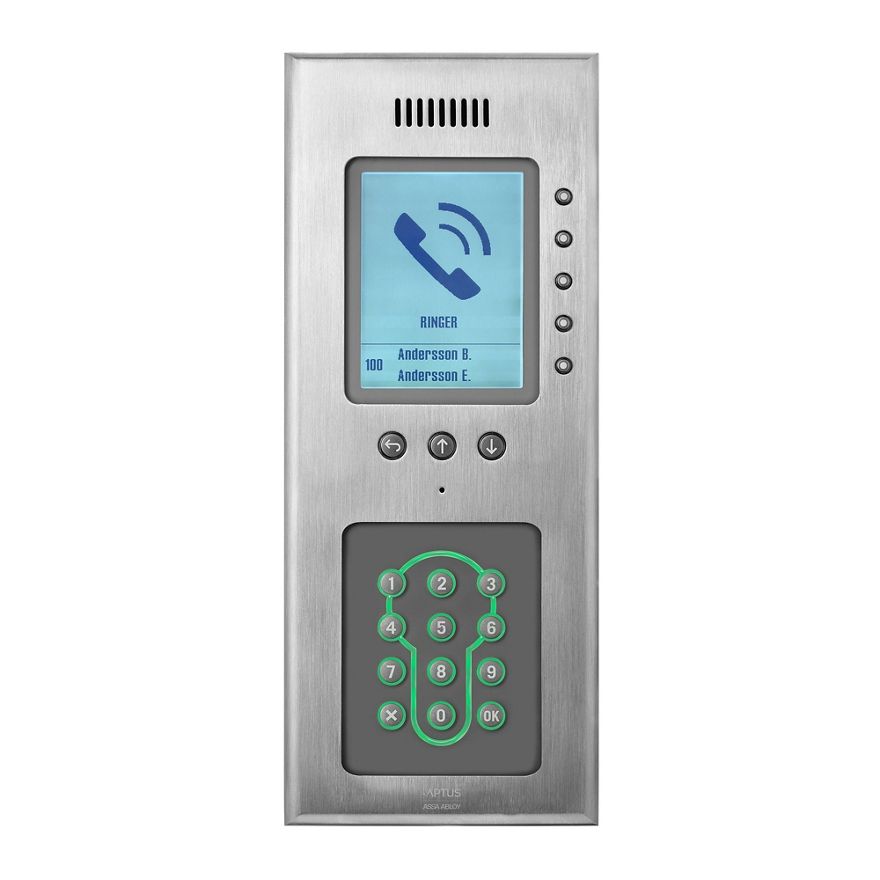

    Ringa 2707 Mifare

    The Ringa 2707 is Aptus’s most advanced entry phone and can read cards and keys with Mifare. It has a display for finding tenants and a keypad for entering door codes.

    The Ringa 2707 is Aptus’s most advanced entry phone and can read cards and keys with Mifare. It has a display for finding tenants and a keypad for entering door codes.

    Features and advantages

    • Made of stainless steel.
    • Robust design against vandalism.
    • For surface mounting.
    • Reader with keypad.
    • Illuminated keypad and keyhole symbol.
    • Clear display.
    • Contacts are selected via the display.
    • Reads Mifare proximity cards and key tags.
    • Calls go directly to doorbell intercom (AT 20 and AT 21), via telephone network or IP telephone*.
    • Integrated buzzer.
    • Tamper switch.
    • Can control external buzzer.
    • Entry phone settings via Multiaccess.
    • Entry phone number and name administered via Multiaccess or Hantera.
    • Up to 9000 telephone numbers.
    • Telephone number: one to twelve characters.
    • Encrypted communication (32-bit keys) from unit to control unit.
    • Language support with up to two simultaneous languages.
    • Software in entry phone can be updated from Multiaccess Styra.

    * Requires ATA box from IP telephony provider.

    ELECTRICAL DATA

    Power supply V DC: 12, supplied by control unit
    Consumption Watts: min 0,84 max 4,5
    Amp: min 0,19 max 0,52


    ENVIRONMENT
    Temperature ˚C: -20 to +60
    Humidity % Rh: 10 to 100



    PRODUCT DATA
    Max. number of telephone numbers
    Vid användning av TC 700: 8192
    Supports door opening via/td>
    Doorbell intercom: Yes
    Fixed telephony: Yes
    Mobile phone: Yes
    Card reader: Yes
    Code on entry phone keypad Yes


    CONNECTION TO CONTROL UNIT

    Control units programmable via PC
    500XX - 600XX: No
    700XX Version R1 or later: Yes
    MC1: No
    Styra 3000 Version C0 or later: Yes
    Multiaccess Version 7.3 or later: Yes


    DIMENSIONS, mm

    Width: 116
    Height: 285
    Depth:
    22
    Net weight in kg: 1,0
    Display: 3.8 inch (10 cm) in 4:3 portrait format
    Installation height, center of cable entry: 1,310 mm
    • ff291-ringa2707produktbladeng(PDF, 1 MB)
