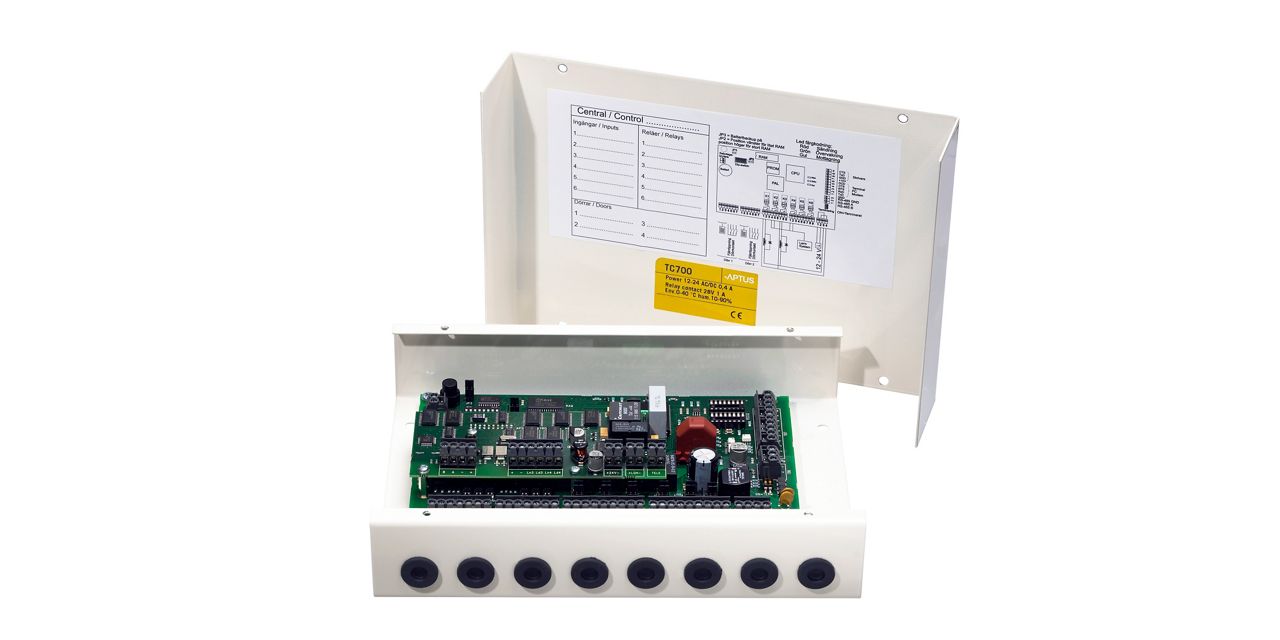

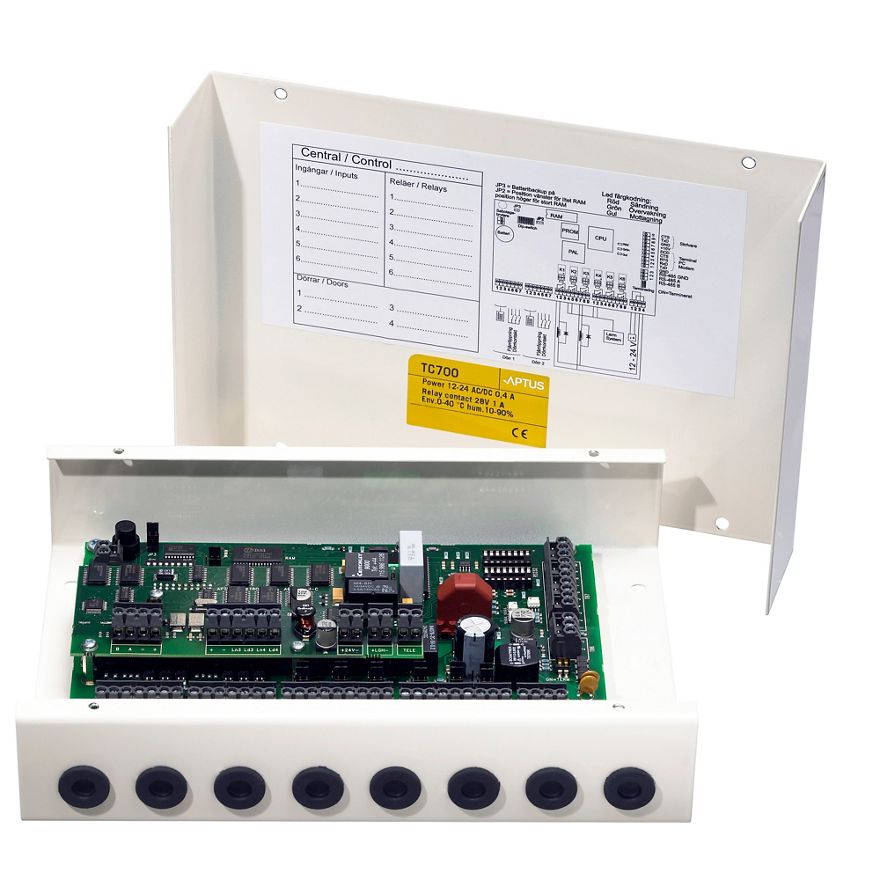

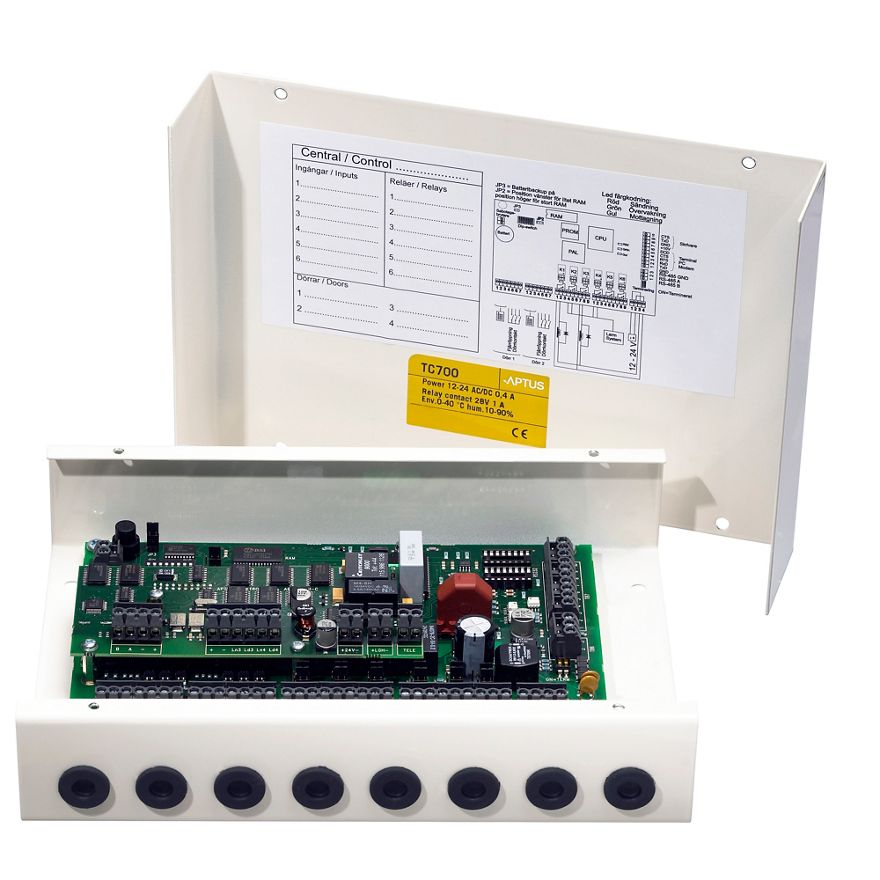

TC 700M Ringa
Master control unit for entry phones systems.
Master control unit for entry phones systems.
Features and advantages
- Communication between the computer and control unit is encrypted with 128-bit keys.
- Communication between the control unit and reader is encrypted with 32-bit keys.
- Control unit with dynamic memory. (30,000 users (8,192 telephone numbers), 6,500 events, 255 time zones)*
- Integrated real-time clock.
- Control unit can handle four doors; entry phones can be connected to two of them.
- Readers can be connected to all four doors.
- Two readers can be connected per door (in and out readers).
- Supports entry phones AT 10, AT 30, AT 70 and Ringa.
- Six independently programmable relay outputs.
- Six independently programmable inputs.
- Ability to call doorbell intercom (AT 20 / AT 21) or directly via the telephone network.
- All relays can be set to dry contact or for use of control unit power supply.
- Battery back-up (memory) and tamper switch.
- Can be set via Windows software (Multiaccess).
- IP communications (option).
- Centralized communications with MultiServer.
- Functions: door access, entry code, call code, alarm bypass, grouped alarm bypass, alarm reconnection, anti-passback, interlock system, duress code, lists people in building, acknowledgement of external alarm/panic alarm.
- Time zone functions: Time, input and reader controlled + time zones for entry phone.
- Compatible with AD 6X XX, AD 7X XX and Öppna series readers.
- If AD 7X XX readers, Låsa 1169 or Öppna readers are selected, a total of four doors can be connected.
- If AD 6X XX readers are selected, only two door environments can be connected.
