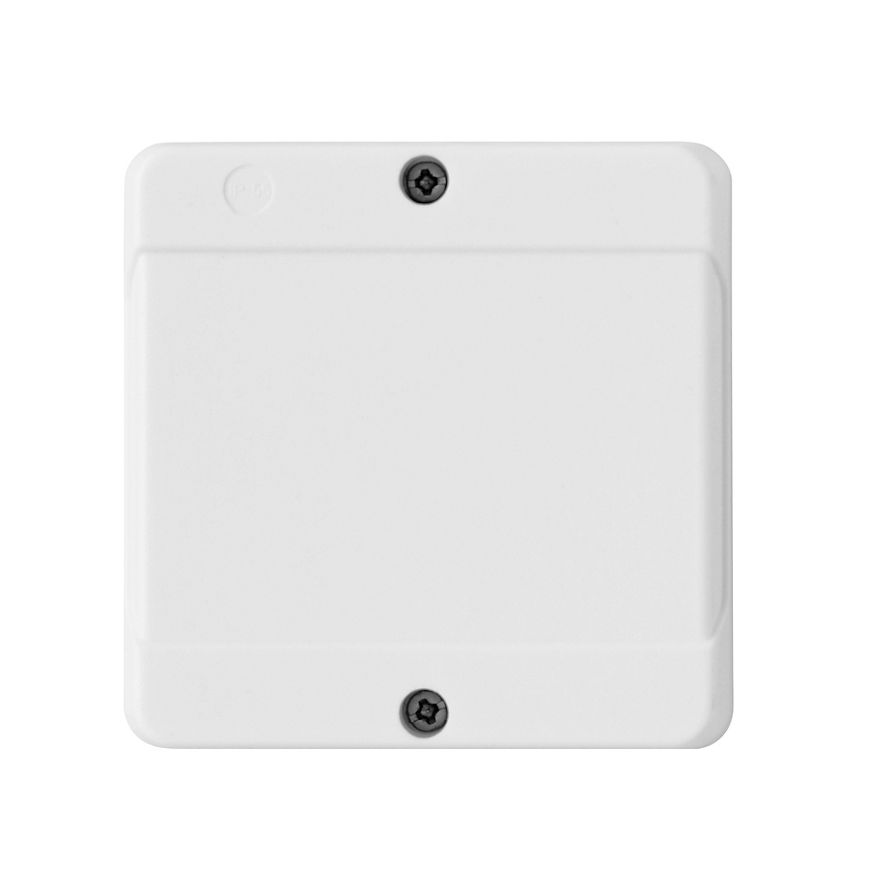

    AA TMI-A485

    Intelligent connection to Miele laundry equipment.

    Intelligent connection to Miele laundry equipment.

    Features and advantages

    • Unit for connection of machine interface to a Styra 3000 unit.
    • Connect up to 8 AA TMI-A485 to Styra 3000.
    • Connect up to 8 machine interfaces to each AA TMI-A485.
    • Provides up to 64 machine controls, washer or dryer.
    • For indoor or outdoor installation.

    ELECTRICAL DATA


    Power supply (stabilized) V DC: 2 / 24, supplied by control unit
    min. 0.24 max 0.84
    Consumption Watts min. 0,24 max. 0,84
    Amp: min. 0,020 max. 0,035


    ENVIRONMENT
    Temperature °C: 0 to +40
    Humidity %: 10 to 90



    CONNECTION TO CONTROL UNIT

    700 XX No
    MC1 No
    Styra 3000 Yes, from version C1


    SUPPORTED MACHINE TYPES

    Podab Baseline / Streamline (TMI Podab B/S) Yes
    Miele (TMI Miele) Yes
    Electrolux Yes
    Cylinda Yes



    DIMENSIONS, mm

    Width: 98
    Height: 98
    Depth:
    52
    Net weight, kg: 0,3
