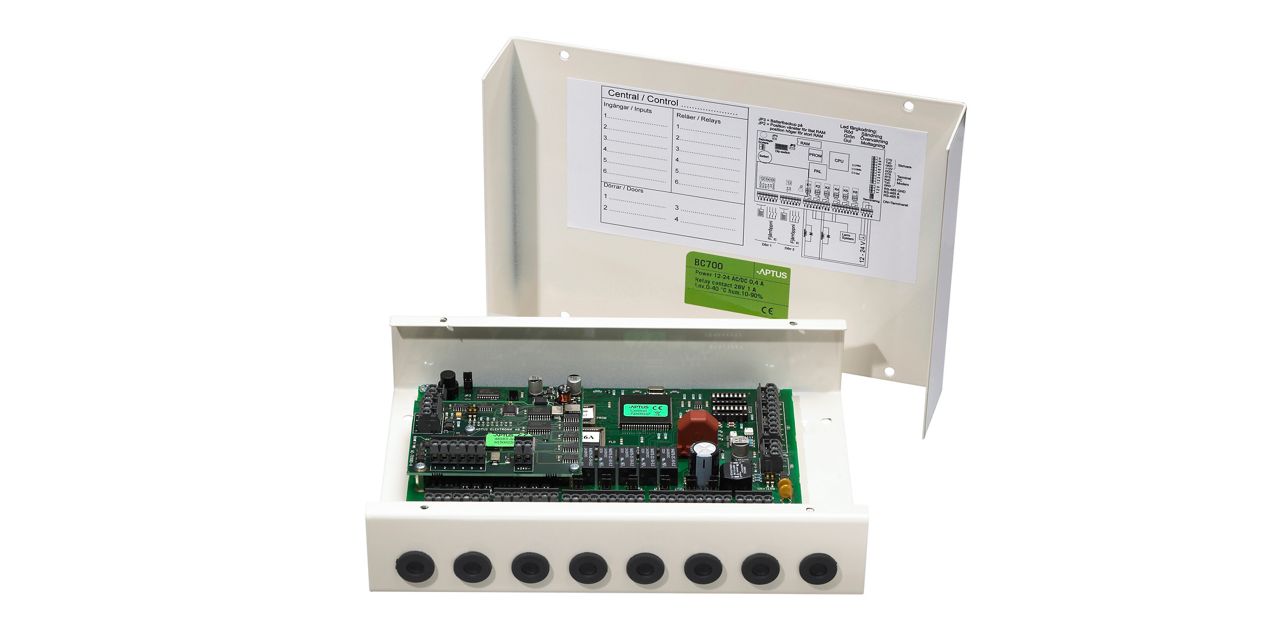

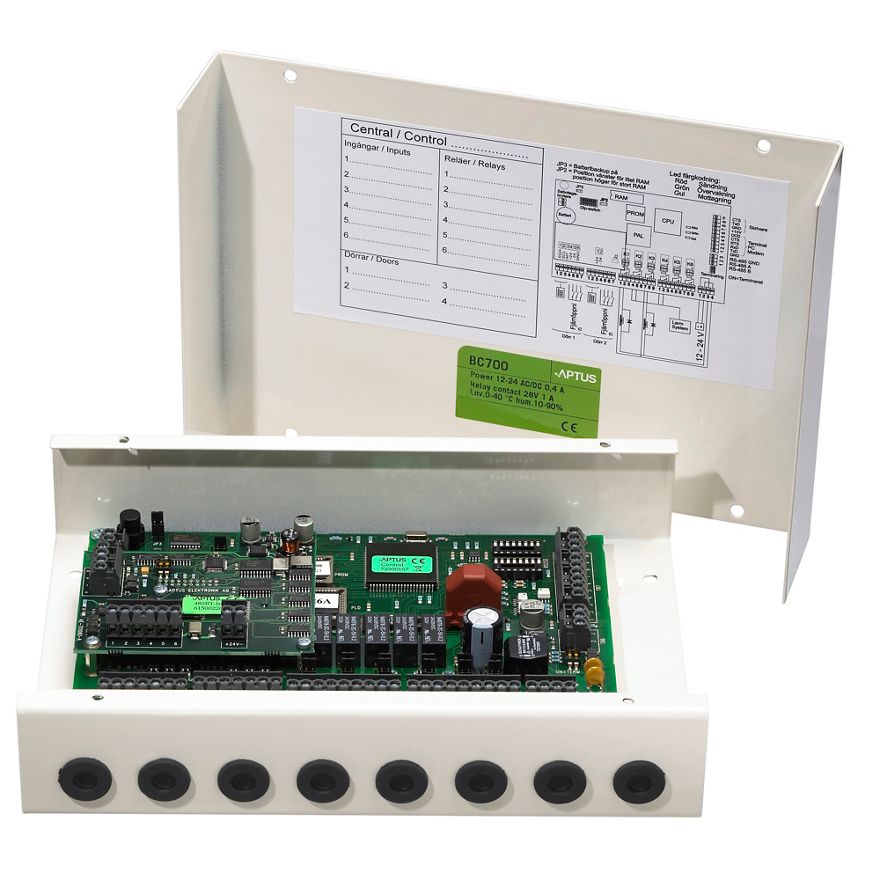

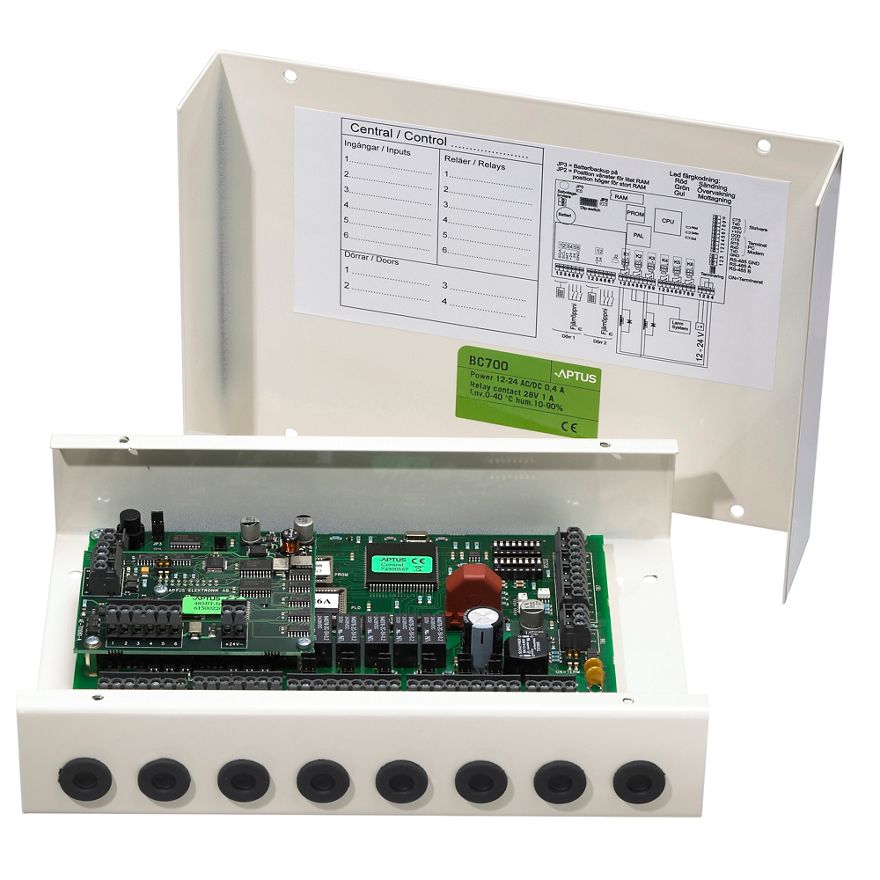

BC 700SUT
Slave controller for four doors with encrypted communications, without reservation board.
Slave controller for four doors with encrypted communications, without reservation board.
Features and advantages
- Communication between the computer and control unit is encrypted using 128-bit keys.
- Communication between the control unit and reader is encrypted using 32-bit keys.
- Control unit with dynamic memory.
- Up to 30,000 users.*
- Registration of up to 6,500 events.*
- Up to 255 time zones.*
- Integrated real-time clock.
- Control unit for booking board (Boka).
- Capable of controlling four doors.
- Two readers can be connected per door (in and out readers).
- Six independently programmable relay outputs.
- Six independently programmable inputs.
- All relays can be set to dry contact or for use of control unit power supply.
- Battery back-up (memory) and tamper switch.
- Can be set via Windows software (Multiaccess).
- Centralized communications with MultiServer via master unit.
- Functions: door access, booking functions, (for information on booking functions see product sheet Boka 1306), alarm bypass, group alarm bypass, alarm reconnection, anti-passback, interlock system, duress code, lists people in building, acknowledgement of external alarm/panic alarm.
- Time zone functions: Time and input controlled, reader controlled and booking list times.
- Compatible with AD 6X XX, AD 7X XX and Öppna series readers.
- If AD 7X XX readers, Låsa 1169 or Öppna readers are selected, a total of four doors can be connected.
- If AD 6X XX readers are selected, only two door environments can be connected.
