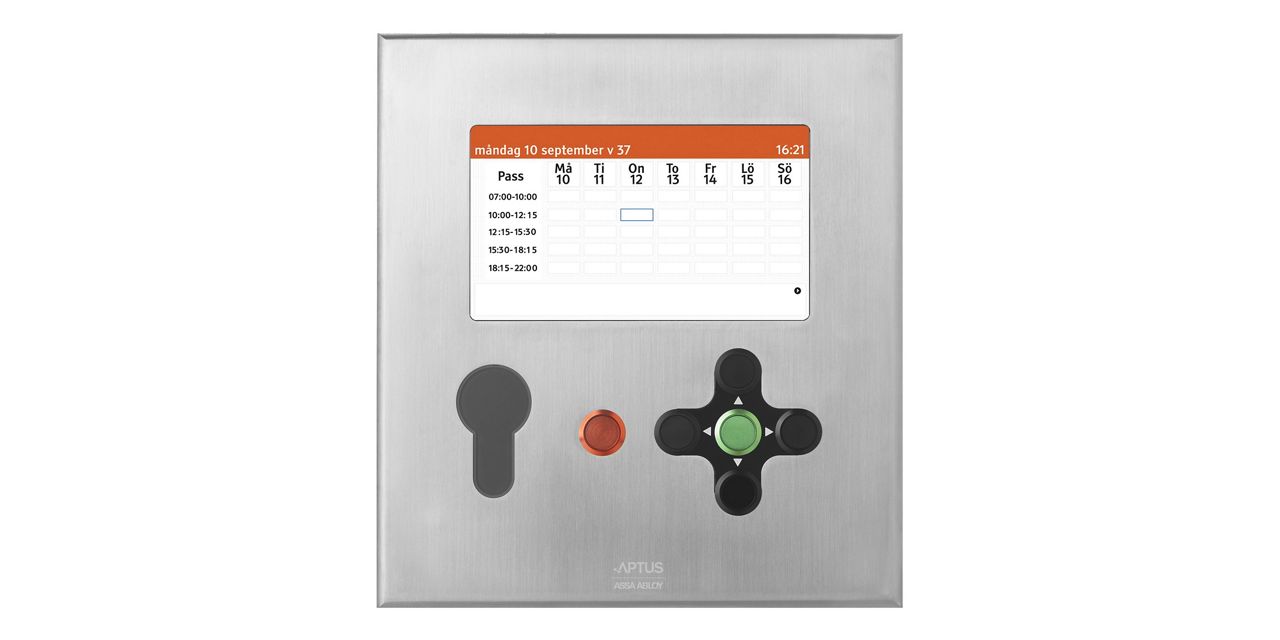

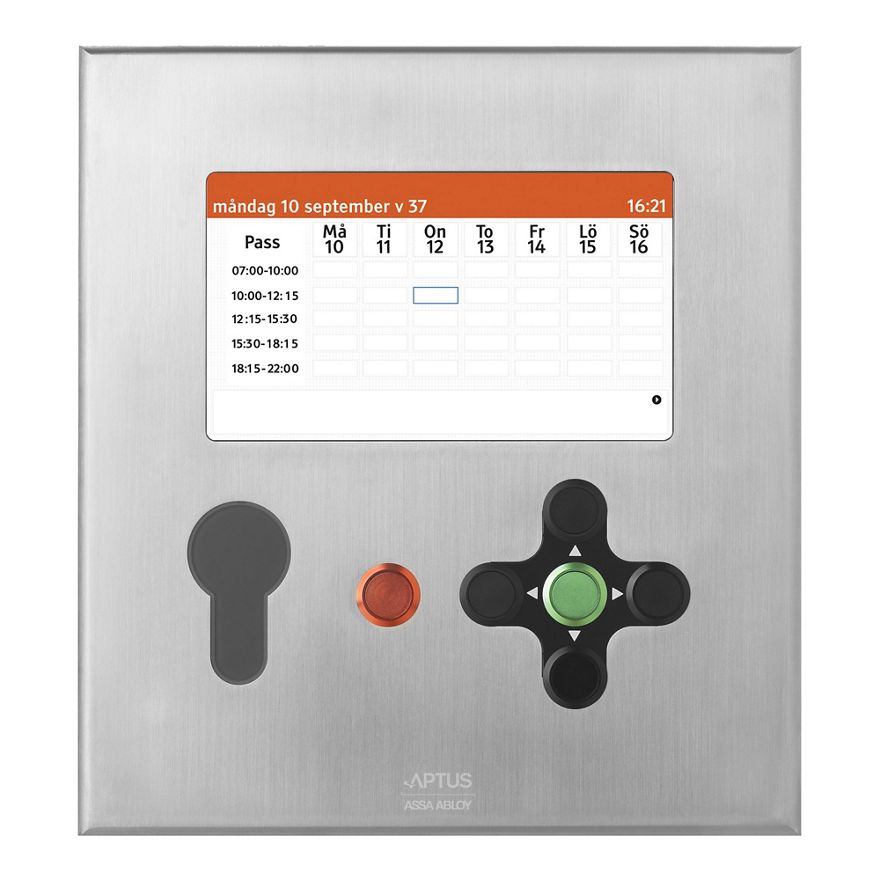

    Boka 1306

    Reservation board and reader that are easy to use and able to take punishment. The board is manufactured in stainless steel and the display is protected by security glass. Surface mounted.

    Reservation board and reader that are easy to use and able to take punishment. The board is manufactured in stainless steel and the display is protected by security glass. Surface mounted.

    Features and advantages

    • Stainless steel.
    • Robust design counters vandalism.
    • For surface mounting.
    • Graphic display with safety glass.
    • Integrated proximity reader with keyhole symbol.
    • May be ordered with inverted logo.
    • Reads proximity cards and keys (APC, APT and Aptusnyckel).
    • Booking board for use with other Multiaccess products.
    • Possible to book up to 16 items per board; e.g. washing machines, conference rooms, tennis courts, squash courts, fitness rooms etc.
    • All items in one system can be booked from the same board.
    • Ability to randomly allocate booked items to provide more even equipment wear.
    • Automatic cancellation of unused slots.
    • Number of bookings per month/week can be limited to safeguard capacity and counter misuse.
    • Booking up to one year in advance.
    • 48 bookable slots per 24 hour period.
    • Possible to prevent booking the next slot until the first slot is begun/used.
    • Laundry time settings and limits to the number of slots are easily made via Multiaccess.
    • Cancellation of a used slot releases any remaining time.
    • Make opportunity bookings e.g. immediate start of the car wash if a slot is available.
    • Warm up the sauna 60 minutes before slot commences.
    • Web administration.
    • Available for recessed mounting; select Boka 1316 instead.
    • Communication between the control unit and booking board is encrypted using 32-bit keys.

    Electrical data

    Power supply, V DC: 12-24, supplied by the control unit
    Consumtion, Watts: Min 2,2 max 9,6 at 24 V
    Amps: Min 0,09 max 0,4 at 24 V


    Environment
    Temperature,  ˚C: 0 till +40
    Humidity %: 10 till 90



    Möjligheter
    Item grouping: Yes
    Random allocation: Yes
    Automatic cancellation: Yes
    Limit number of bookings: Yes
    "Punch ticket function": Yes
    Booking via internet: Yes
    Booking via communication board: Yes
    Booking via administration PC: Yes
    Generate statistics: Yes
    Exporter files to Excel or XML: Yes
    Remote upgrade from Styra 3000  Yes
    Language support, two languages, via Styra 3000 Yes


    Card data
    -EM4102 / EM4200 Yes

    Systemanslutning

    500XX, 600XX, MC1 No
    700XX Version R2 or later:
    Yes
    Styra 3000 version C0 or later Yes
    Multiaccess Version 7.3 or later: Yes


    Dimensions, mm

    Height: 308
    Width: 280
    Depth:
    50
    Net weight in kg: 3,6
    Display: 8 inches in landscape format
    Installation height, (central point of cable inlet) 1310
