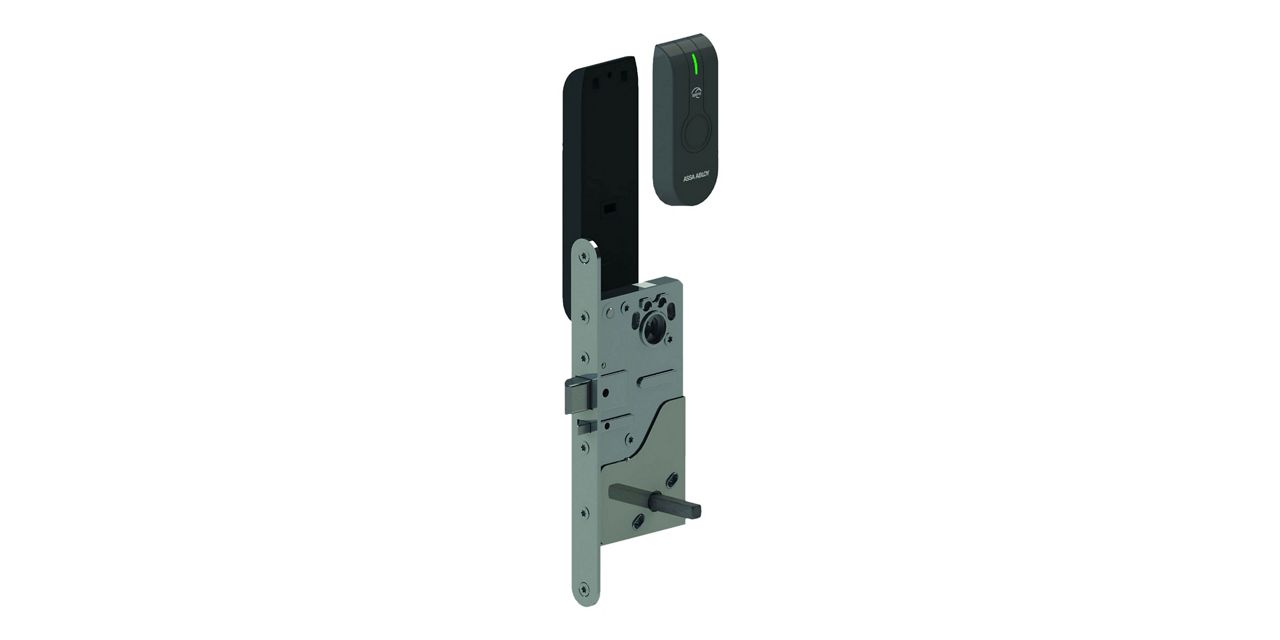

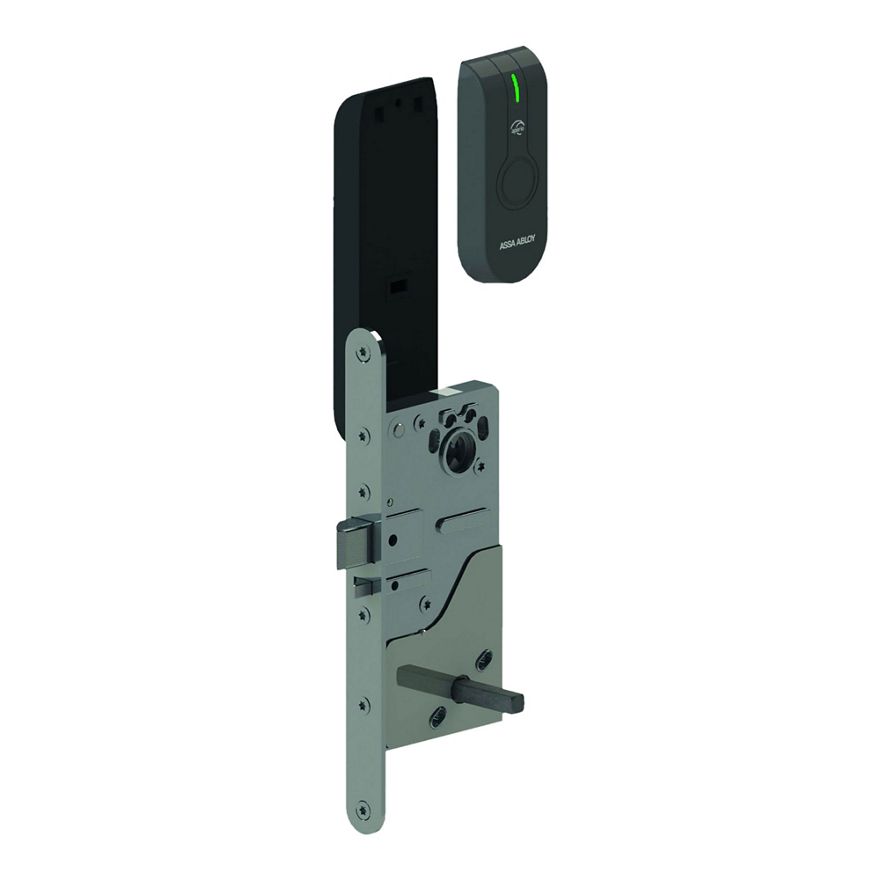

L100 SCAND / L100 SKP

Features and advantages

Communication from Koppla 0020 via RS485 bus to the Access Control System
- access decision in the EAC system
Main electronics inside - Reader element outside including emergency battery connector
and indication LED's
Intelligence split structure enables extreme temperature range (-40°C to +65°C)
Outside handle rotates freely - inside handle always engaged (opening sensor included)
Possibility to store up to 10 emergency cards (only used in case of disconnection from the
Koppla 0020)
LED for status visualisation

Keep in mind that the lock itself may have features that are not
supported in the Aptus system.

Technical data
Authentication	Three levels of autentification (PIN only, CARD only, PIN & CARD combined)
PIN code	PIN code – 4 up to 8 digits (PIN only for L100 SKP)
Approvals (CERTIFICATION=)	CE, EN179, EN1125, EN1634/1
Dimensions	Lock 150 x 95 x 88/19,5/98 (H x W x D), Reader, inside 167, 8 x 48 x 20/ outside 101,8 x 43,7 x 15 (H x W x D)
Door Swing Direction (DIRECTION=)	Left / Right
Backset	Standard doors (50 mm); narrow doors (35 mm)
Distance/ Spindle (DISTANCE=)	Distance standard doors 105 mm / narrow doors 115 mm, spindle 8 mm
Frontplate	22 mm
Door Thickness (DOOR THICKNESS=)	Door Thickness - Spindle lenghts in (): 47/50 (40- 54 mm); 57/50 (47/66 mm); 67/60 (61-80 mm); 74/50 (66-80 mm); 120/120 (88-100 mm); 80/50 (70-87 mm)
Battery	2 x Lithium AA (FR6)
Battery life	> 50,000 cycles (for max. 3 years)
Radio standard	IEEE 802.15.4 (2.4 GHz)
Encryption (radio communikation)	AES 128 bits
Distance between the Reader and Koppla 0020	Typical range of 15 m or 45 m depending on the hub type and building environments
Class of protection	IP 44 inside / IP 55 outside
Operating temperature range	10 °C to 65 °C inside / -40 °C to 65 °C outside
Humidity	< 85 % (condensation free)
Status	LED (red/green/orange)
RFID technology	MIFARE^™ classic; MIFARE^™ DESFire^™ EM410x;
RFID reading	UID / Sektor / Block / Application /
Scanning range	4 cm
