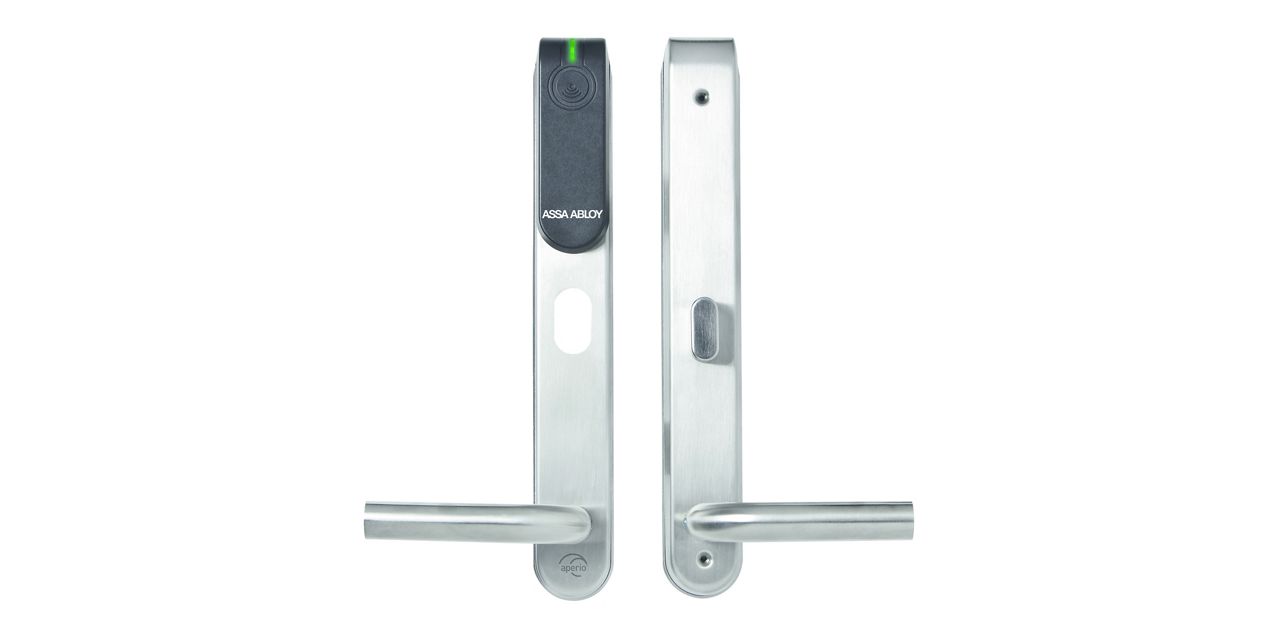

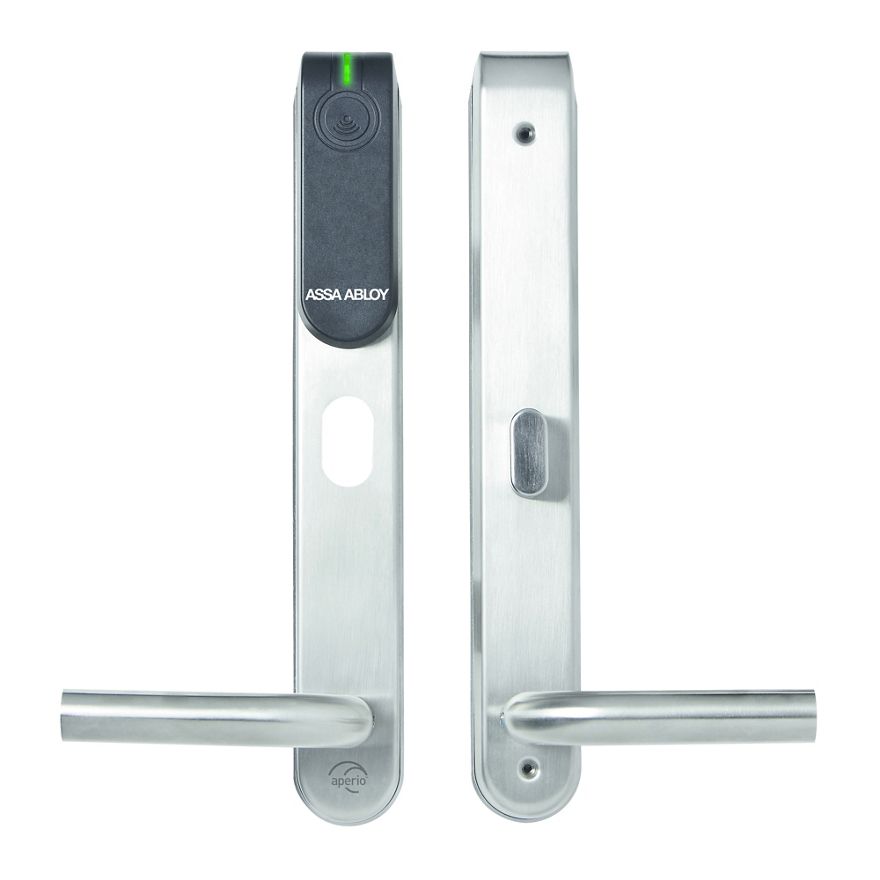

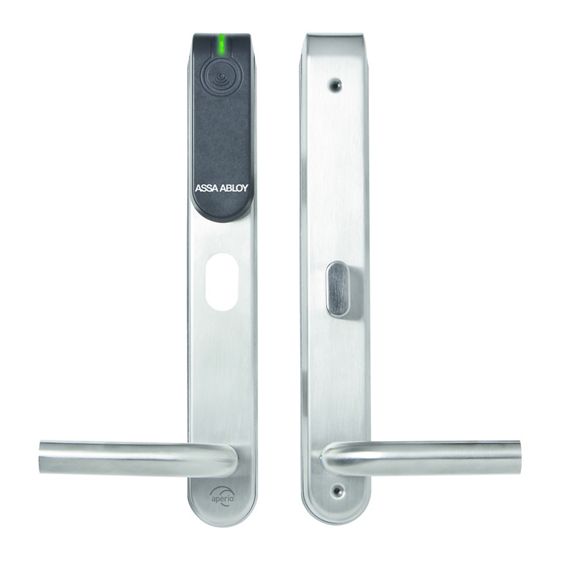

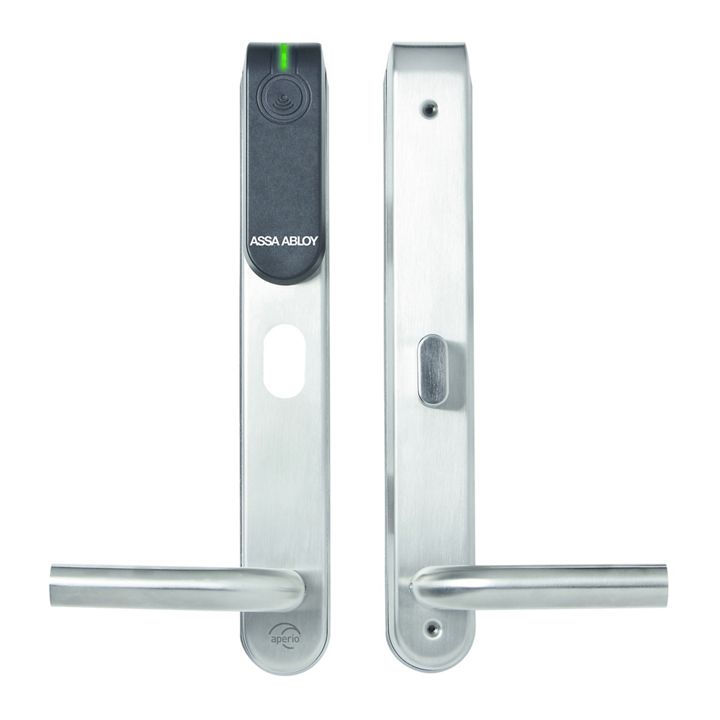

    E100 S V

    Door leaves readers with turn switch.

    Door leaves readers with turn switch.

    Features and advantages

    • Keyhole shaped.
    • Each key tag has a unique 9-digit code.
    • Key tag is solid cast, making it hardwearing and watertight.
    • Compatible with all our Mifare and EM proximity readers.
    • Also works with Yale Doorman för Aptus.
    • Can be customized with owner’s logo.
    • Can be engraved with numbers 1–9.
    • Use desktop reader Registrera 2905 for key administration.

    Technical data

    Authentication  CARD only
    PIN code No
    Dimensions 312 x 41 x 10/20 mm (H x W x D)
    Application versions (VERSION=) Basic = interior and exterior doors up to grade 2
    Handles U-Shape or L-Shape
    Escutcheon finish (FINISH=) Stainless steel brushed (ST)
    Distance/ Spindle (DISTANCE=) 105 mm with spindle 8 mm
    Door Thickness (DOOR THICKNESS=) Door leaf between 35 and 95 mm thick, in 10mm
    increments
    Backset > 40 mm
    Mounting plate (PLATE=) 45 mm or 55 mm
    Battery 1 x Lithium CR123A
    Battery life > 40 000 cycles (for max. 3 years)
    Radio standard IEEE 802.15.4 (2.4 GHz)
    Encryption (radio communikation) AES 128 bits
    Distance between the Reader
    and Koppla 0020
    5 m or 25 m depending on the hub
    type and building environments
    Class of protection IP52
    Operating temperature range 0–60 °C
    Humidity < 85 %  (condensation free)
    Status LED  (red/green/orange)
    RFID technology MIFARE™ classic;  MIFARE™ DESFire™  EM410x;
    RFID reading UID / Sektor / Block / Application /
    Scanning range 4 cm
    • Standard escutcheons (PDF, 645 KB)
