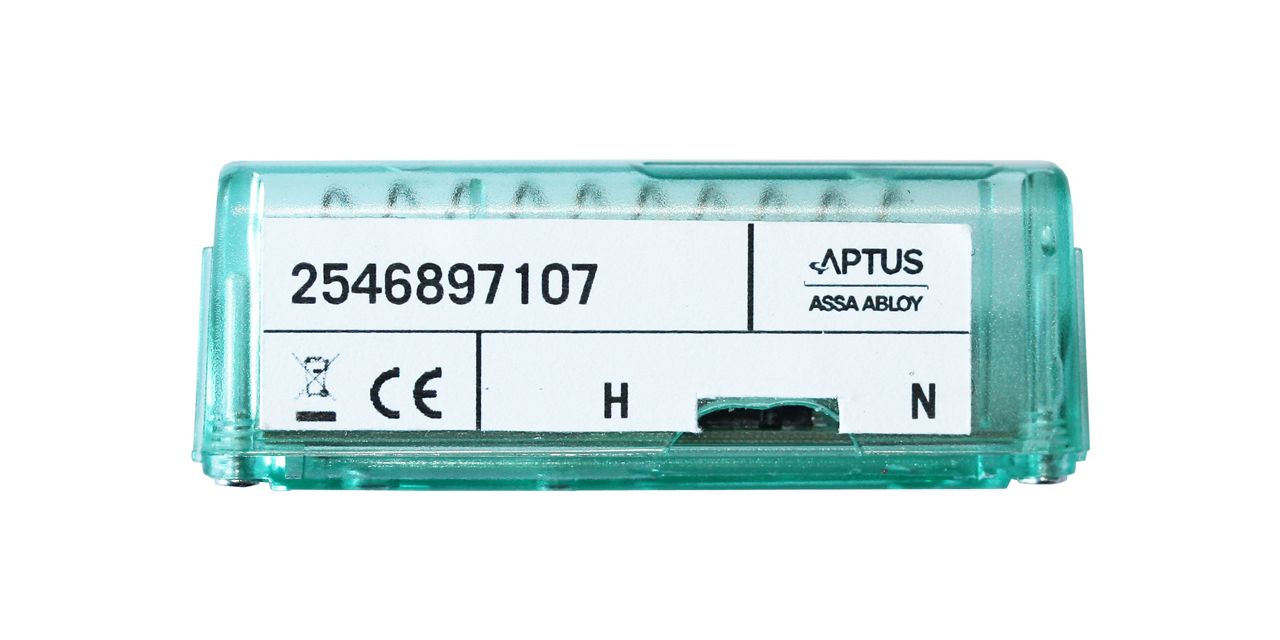

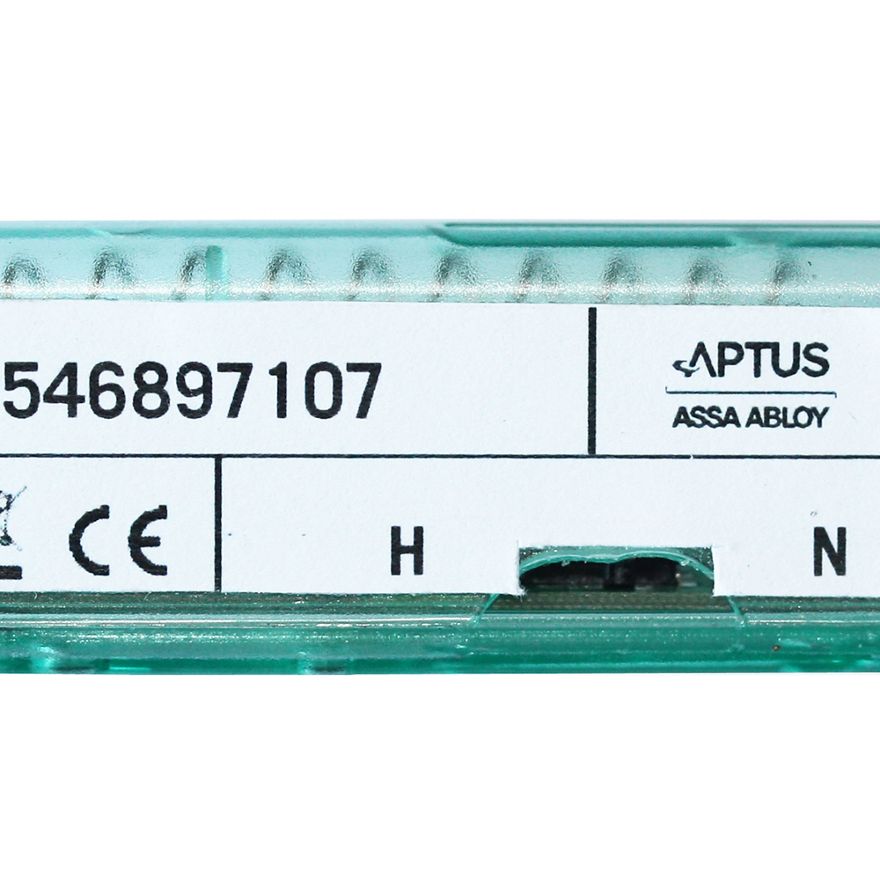

Radiomodulpaket

Unit for system connection of Yale Doorman.

Features and advantages

Connect your existing Yale Doorman to an Aptus access system.
System connection to Aptus via radio.
Radio module for installation in lock.
Replacement strike plate included.
Comes with three key tags: Yale Doorman Kombinyckel för Aptus.
The lock can also be bought complete from Aptus: Yale Doorman för Aptus. item no. 90-909-30.
For more details about the lock, see the product sheet Yale Doorman för Aptus.

ELECTRICAL DATA
Power supply V DC:	6,0, supplied by lock
ENVIRONMENT
Temperature ˚C:	0 till +50
Humidity % Rh:	Rh 10 till 90

CONNECTION TO CONTROL UNIT
Styra 3000	Yes, from version D0, Multiaccess Styra version 8.1.
700 XX:	No
MC1:	No


RADIO
Frequency band MHz	868
Number of channels	4
Reach, m	Free air: 25, through wall / door: 15
Encryption	AES 128-bit EAX mode
Number of radio modules per Koppla 0010	8
Number of radio modules per Styra 3000	32

CARD DATA
Yale Doorman Kombinyckel för Aptus	Multi proximity key compatible with doors equipped with Yale Doorman or doors with ordinary Aptus readers. Mifare: Classic 1K / 4bytes UID EM: 4102 / 4200
DIMENSIONS, mm
Height:	242/200
Width:	72/60
Depth:	12/14
Net weight in kg:	1,5
