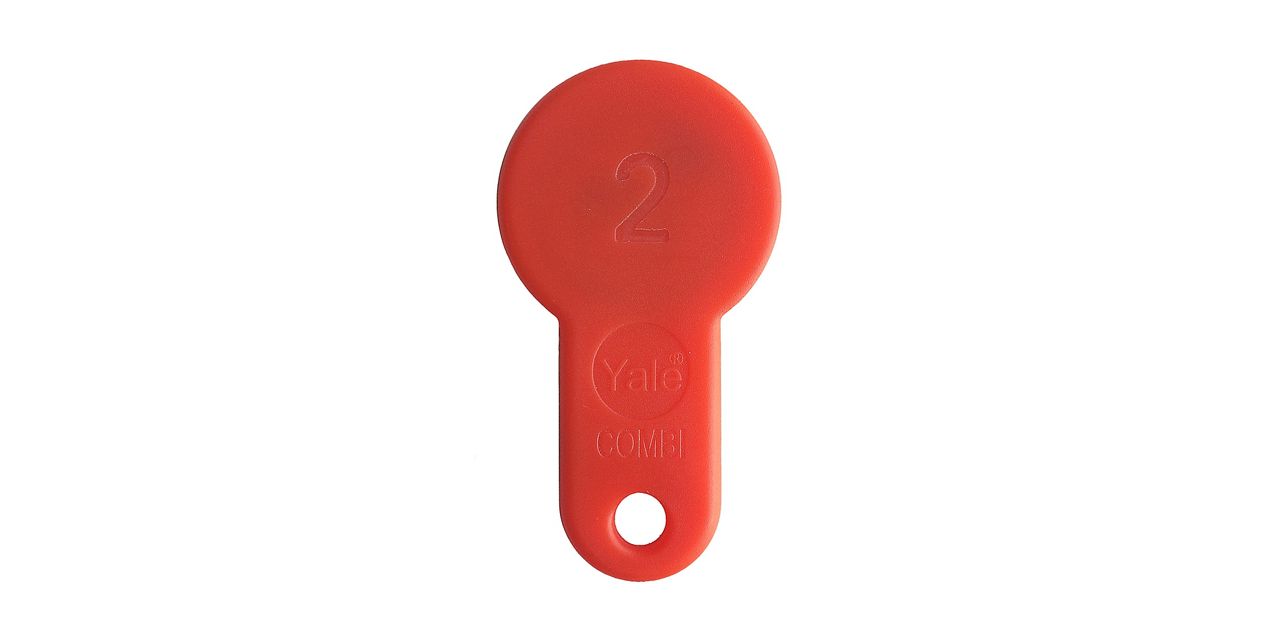

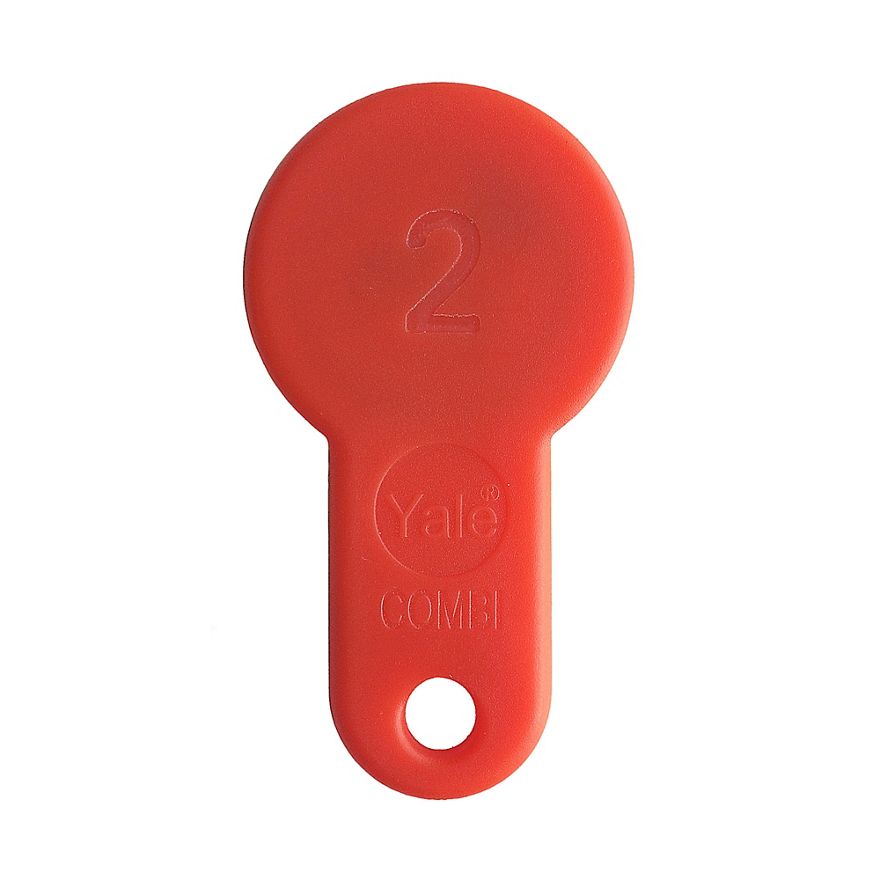

    Yale Doorman Kombinyckel för Aptus

    Proximity key for EM, Mifare and Yale Doorman.

    Proximity key for EM, Mifare and Yale Doorman.

    Features and advantages

    • Keyhole shaped.
    • Each key tag has a unique 9-digit code.
    • Key tag is solid cast, making it hardwearing and watertight.
    • Compatible with all our Mifare and EM proximity readers.
    • Also works with Yale Doorman för Aptus.
    • Can be customized with owner’s logo.
    • Can be engraved with numbers 1–9.
    • Use desktop reader Registrera 2905 for key administration.

    Note: Yale Doorman must be at least of version V2N.



    ENVIRONMENT
    Temperature ˚C: -30 to +50
    Humidity % Rh 10 to 100



    CARD DATA

    Mifare Classic 1K
    4 bytes UID
    13,56 MHz
    Sector 7–15 free
    Reading of Mifare card’s
    serial number, UID or sector 7–15.
    EM 4102 & 4200
    Unique 9-digit card number
    125 kHz
    Yale Doorman Space for six locks in each Mifare
    sector, 1–6. Data in section changed after
    veach unlocking for maximum security.
    (Floating ID)
    Note: Yale Doorman must be at least of version V2N.




    DIMENSIONS, mm

    Height: 58
    Width: 32
    Depth: 4
    Net weight in kg: 0,005
    • b2940-yaledoormankombinyckelfoeraptusproduktbladeng(PDF, 850 KB)
