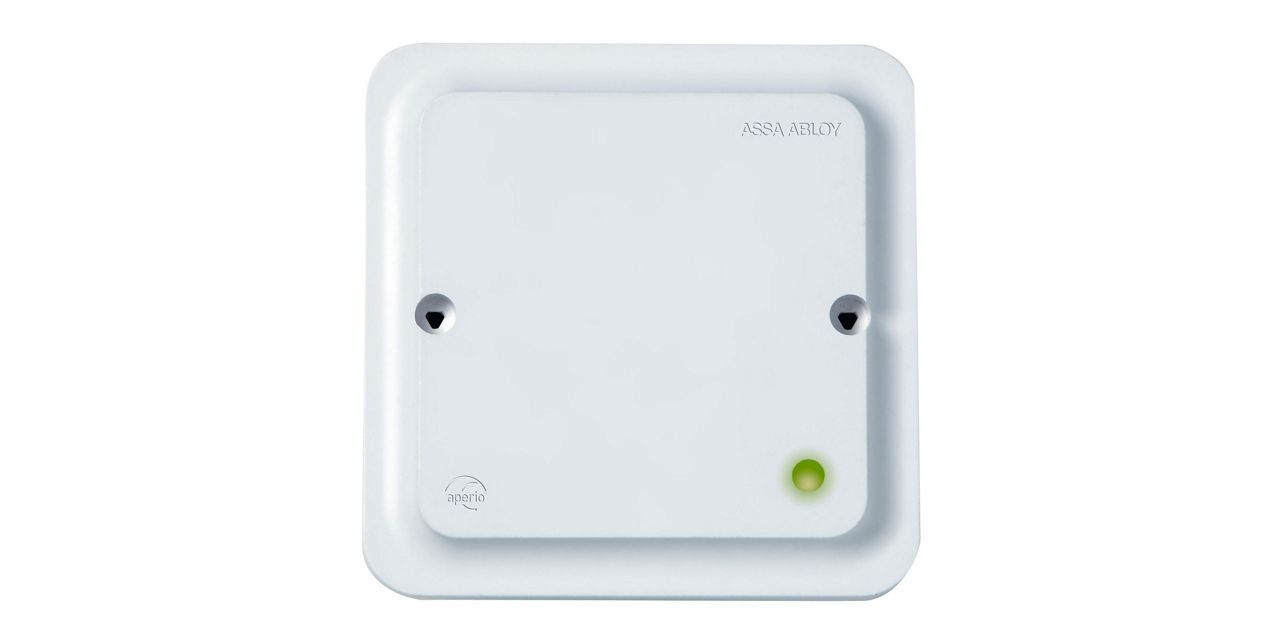

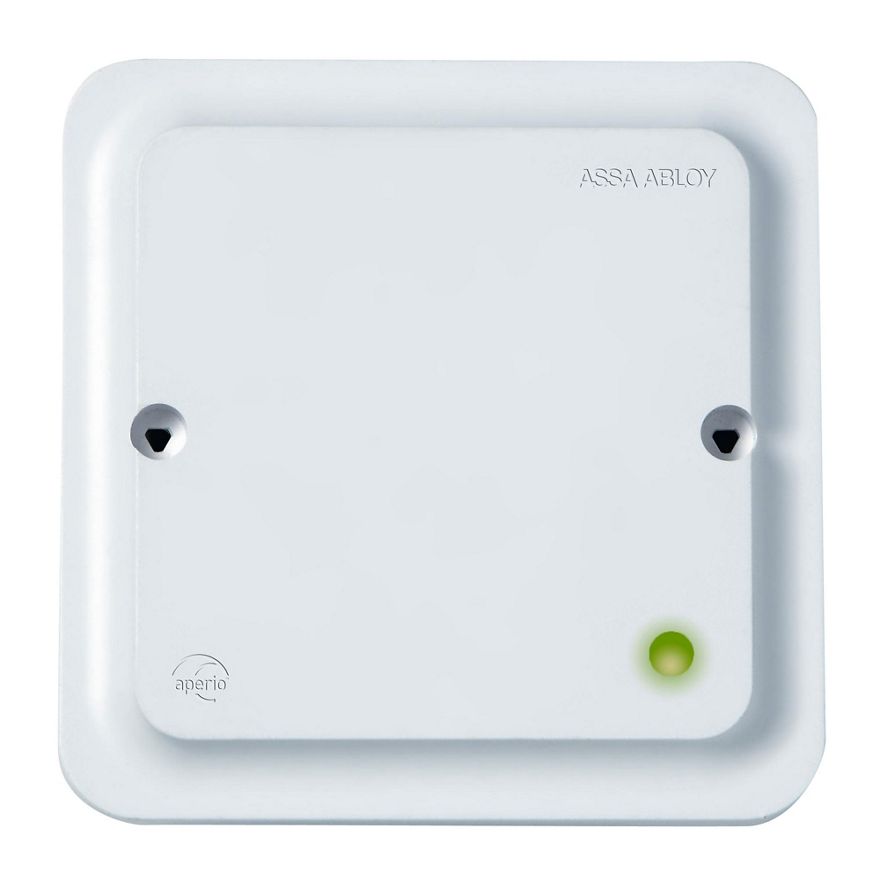

Koppla 0020

Apartment control unit for access control, energy metering and alarms.

Features and advantages

Wireless connection to Aperio type lock.
Up to eight locks per Koppla 0020.
Connect your lock to the system via Koppla 0020.
Manages encrypted radio traffic with Aperio locks.
Koppla 0020 can be paired with lock via a special software: Aperio Programming Application, PAP.
Aptus cable 1 from control unit to door unit.
Tamper switch from lock, logged to Multiaccess Styra.
Possibility of programming a door to remain open for a chosen time.
This can be done directly on the door.

ELECTRICAL DATA
Power supply V DC	24/12
Consumption Watts	min 1,44 max 1,92 at 24V
Amp	min. 0.06 max. 0.08 for 24V
ENVIRONMENT
Temperature ˚C	5 to +35
Humidity %	10 to 90

PRODUCT DATA
Number of A485 ports	1 (to control unit)
LEDs for indication of communication status	Yes
LEDs indicate status of connected locks	Yes
Number of Koppla 0020 devices per Styra 3000	8
Number of locks per Styra 3000	8 (max 1 lock per door)
Number of locks per Koppla 0020	8
Remote unlocking from Multiaccess Styra	No
Sensor detection, door open/closed	No
Remote upgrading via Multiaccess Styra	Yes, partial
Card data for connected locks	Mifare: (Locks with MD in model name) Classic 1K & 4K 13,56 MHz 4 byte UID / 7 byte UID Serial number reading Sector reading EM: (Locks with EM in model name) 4102 & 4200 125 kHz

RADIO
Frequency band GHz	2,4
Number of channels 16	16
Reach, up to, m	15–25
Encryption	AES 128-bit

COMMUNICATION
Communication with Styra 3000	RS 485 (A485)
Communication with Aperio lock	Radio

DIMENSIONS, mm
Height	81
Width	81
Depth	54
Net weight in kg	0,18
