ASSA ABLOY SENSE

ASSA ABLOY SENSE

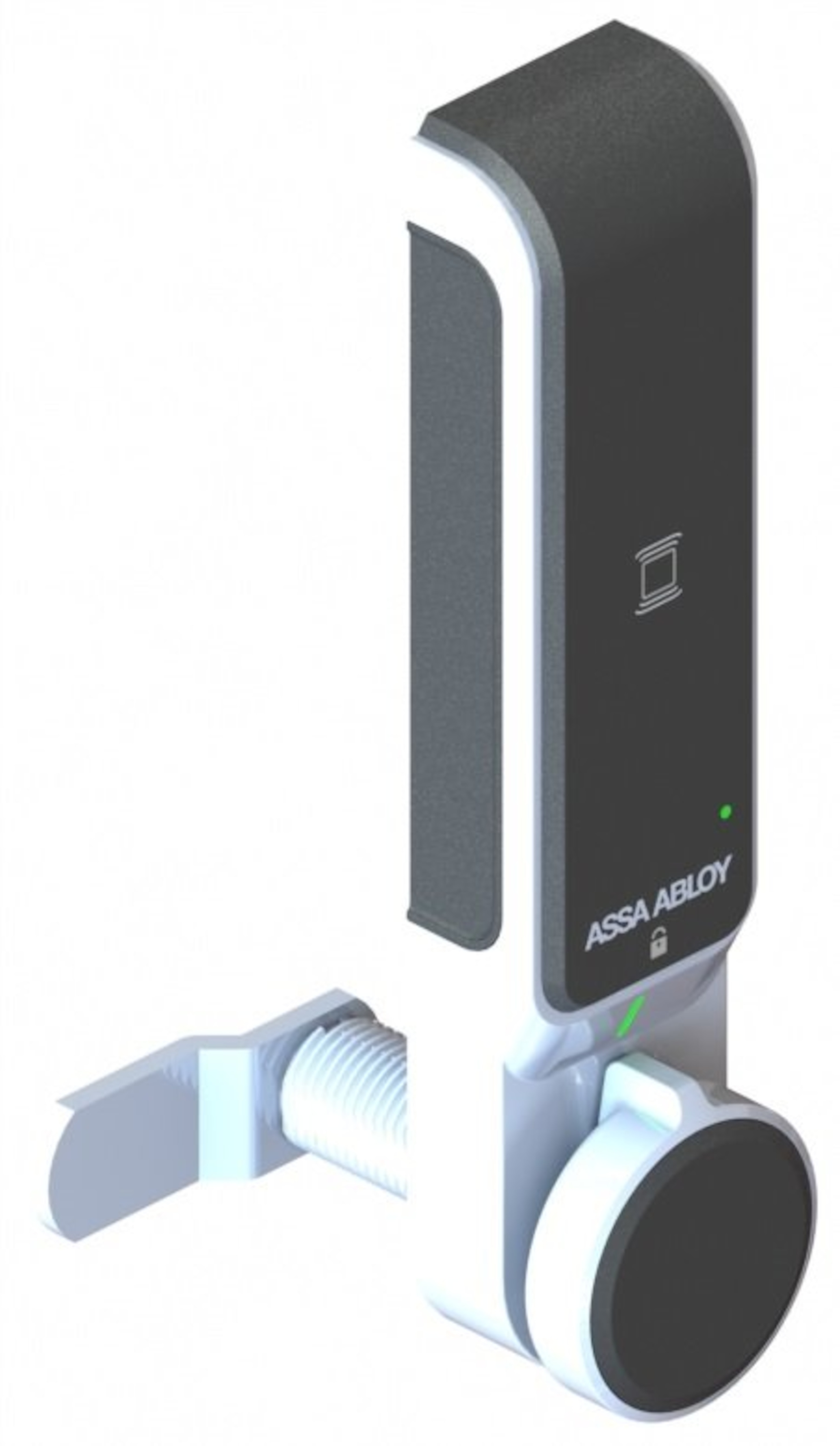

ASSA ABLOY SENSE is a stand-alone battery driven code locker lock that are compatible for use with most RFID cards of type Mifare.

Stand-Alone means that the lock can be used, programmed and deployed without any software or programming devices.

NOTE: Manuals and other product information is found below under downloads.


Area of use

The lock is designed for usage in dry areas, but can be used in wet area applications together with a rubber gasket.

Properties / characteristic

  • The lock can be retrofitted by utilizing the existing hole foot-print/fixings with just an extra hole for the upper screw.
The lock is available in 2 barrel lengths
  • For assembly on doors with 1-15 mm door thickness
  • For assembly on doors with 15-23 mm door thickness.
The lock has 3 card levels:
  • User Cards
  • Inspector Card
  • Master Cards.
  • The lock has sound and light feedback to improve user experience.
  • The lock has a USB connection to be able to supply the lock with emergency power for access in case of depleted batteries.
  • Suitable for use with ASSA ABLOY standard cams. (see separate data sheets).
  • Built in torque-overload protected clutch function in handle.

Function

The lock works in 2 different modes. These are:

1. Private Mode - The lock is opened with designated pre-registered cards.
2. Public Mode - The lock can be locked with any compatible card. Once unlocked, the lock is then available for the next user.

  • Quick setup is available for easy deployment of multiple cards into any of the above 2 modes.
  • Additional functionality can be easily added/deleted using specific programming cards (ordered separately).
  • For larger installations, a copying card is available that drastically reduces the amount of time needed for setup of multiple locks.

  • ASSA ABLOY PIN

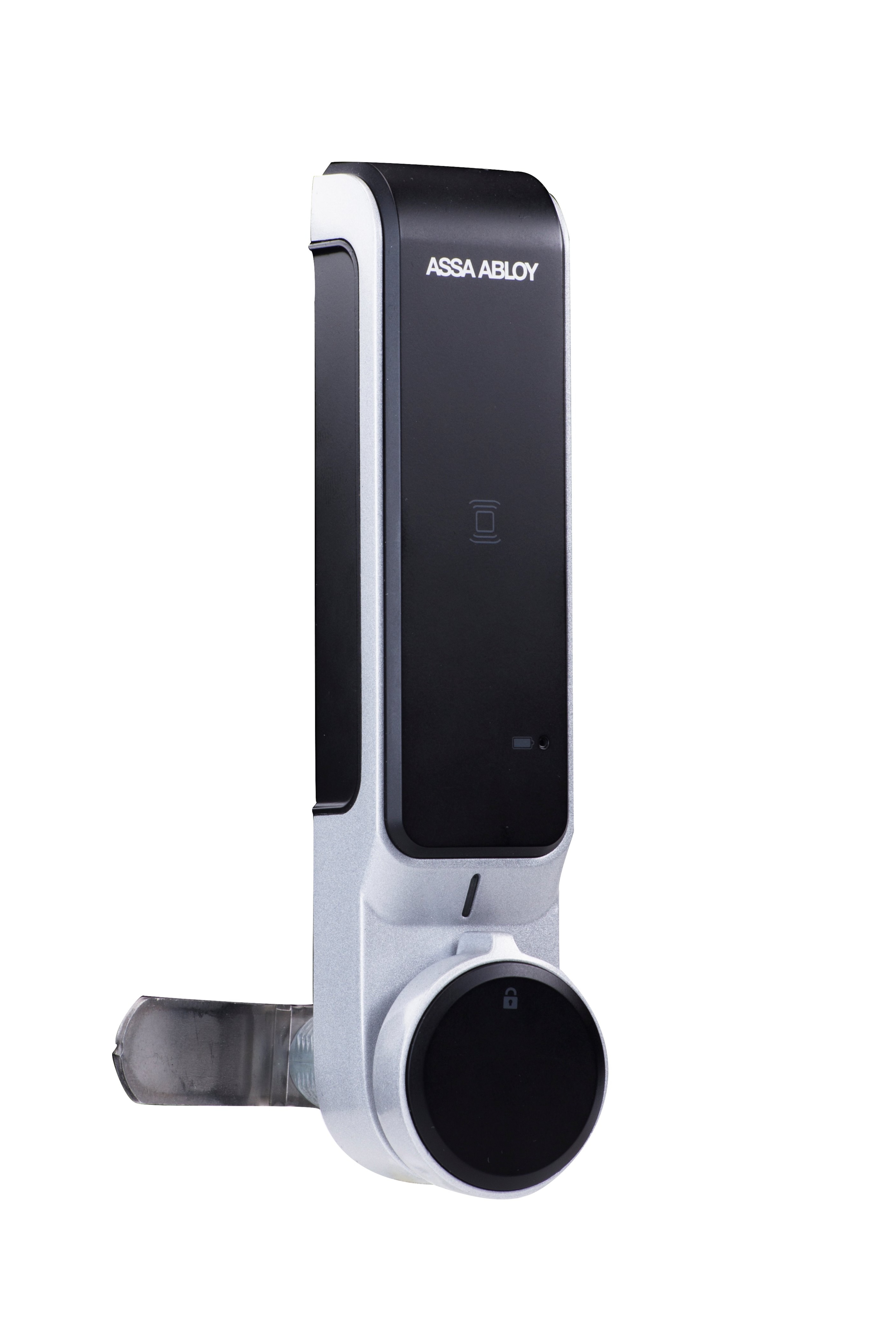

    ASSA ABLOY PIN is a stand-alone battery driven code locker lock.

    Stand-Alone means that the lock can be used, programmed and deployed without any software or programming devices.

    NOTE: Manuals and additional product information is found below under downloads.

  • ASSA ABLOY SENSE+

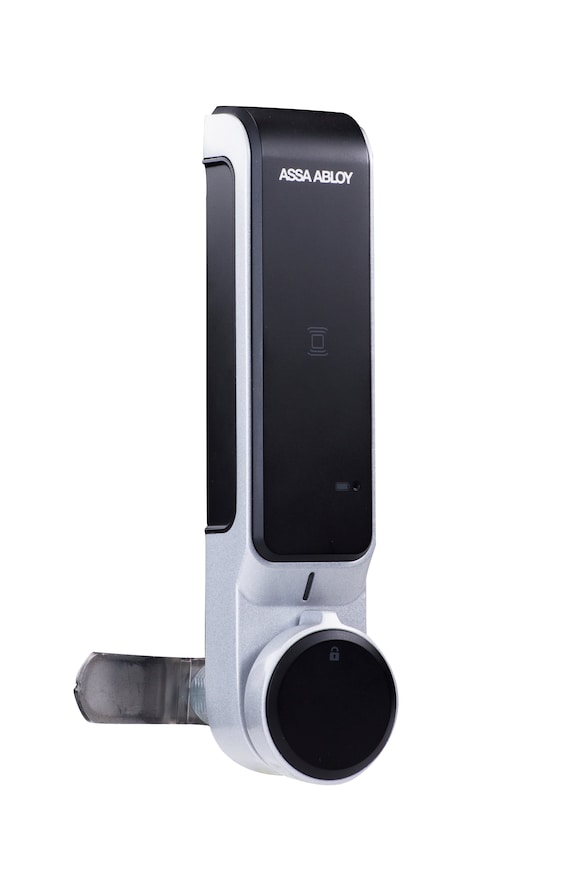

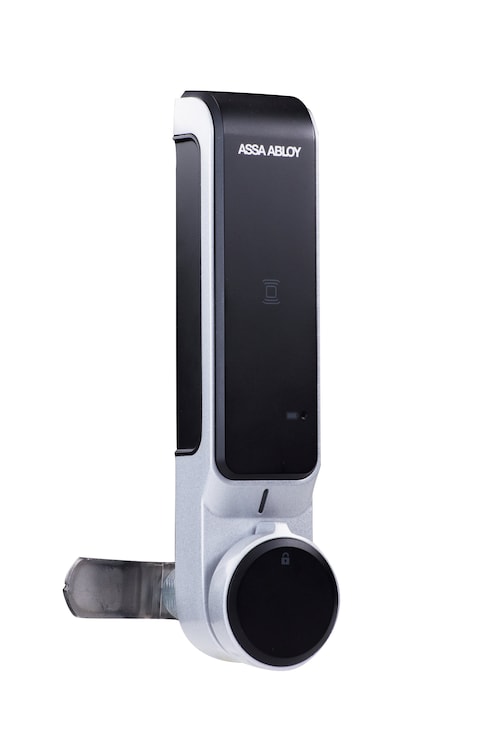

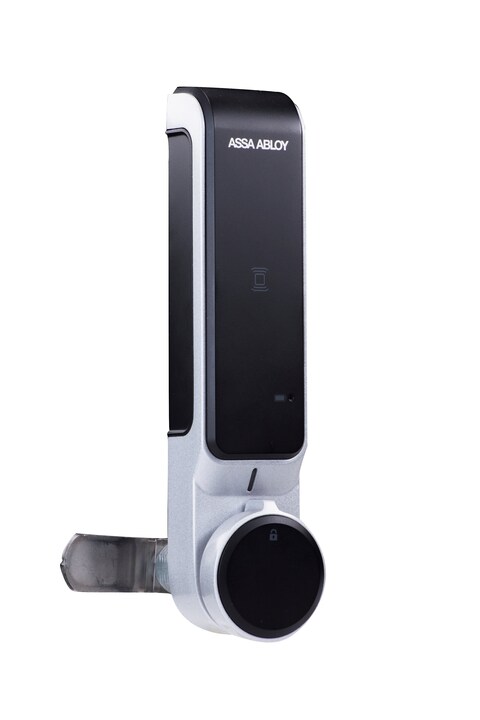

    ASSA ABLOY SENSE+ is a stand-alone battery driven RFID locker lock that supports MIFARE technology. The lock is designed for usage in dry areas, but can be used in wet area applications together with a rubber gasket.

    NOTE: Manuals and additional product information is found below under downloads.

  • ASSA ABLOY SENSE+ SOFTWARE

    The SENSE+ Software is installed locally on your computer and is used to setup and program SENSE+ locks through the Connecting Cable The SENSE+ Software allows for the following:

    • Setup of up to 30 systems
    • Unlimited numbers of cards within each system.
    • Unlimited numbers of lock settings within each system.
    • Time opening for locks in Public Mode
    • Opening of locks if mastercards are lost
    • Removal of lost cards.
    • Audit Trail. Up to 2000 events is stored. The oldest event is replaced by new events once capacity is full
    NOTE: Manuals and additional product information is found below under downloads.
