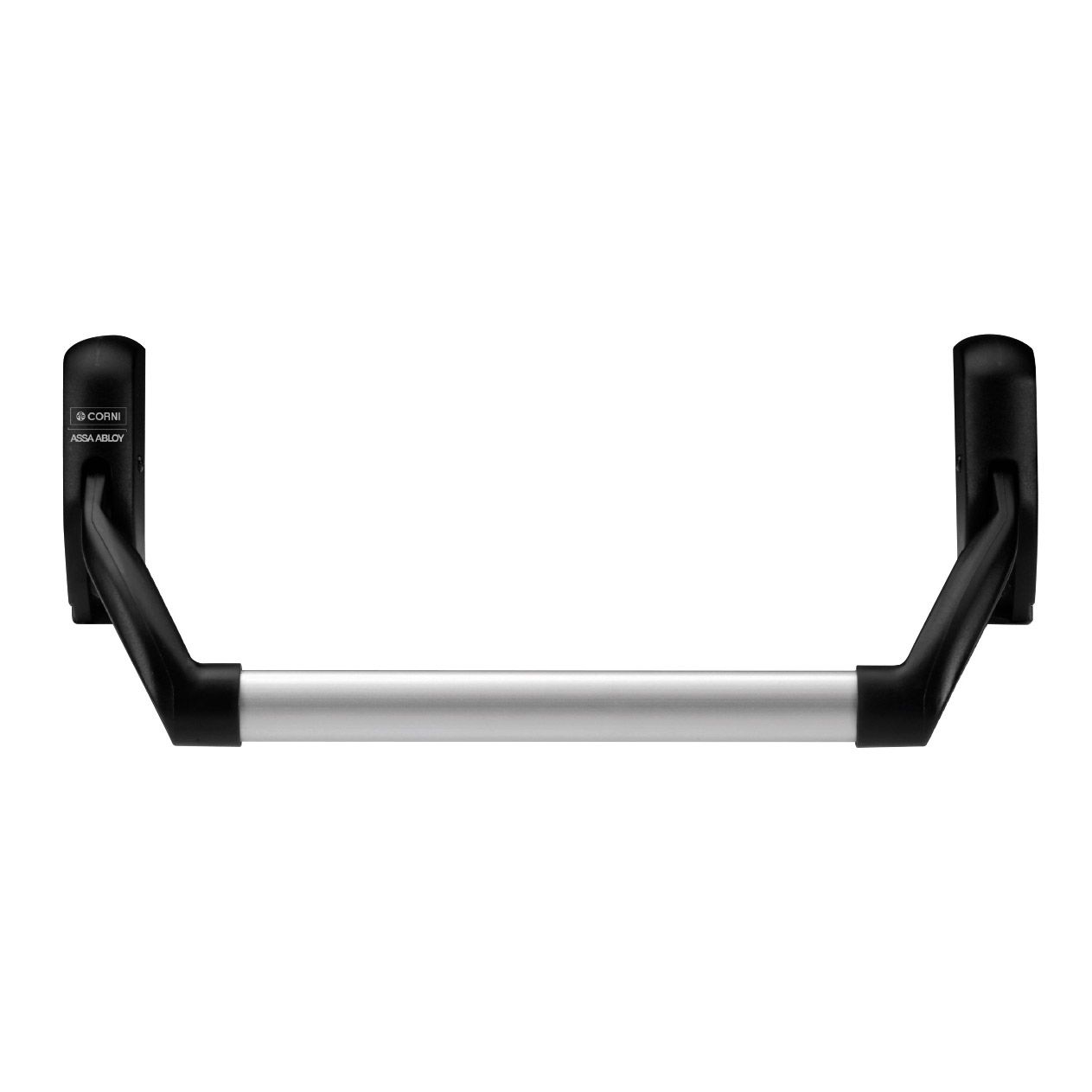

Mini Eurosmart

Mini Eurosmart is a mortise panic exit device suitable for single or double leaf fire rated doors.

It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.

Finishes: With black nylon cover

Finishes

Installation	Reversible
Suitable for fire/smoke rated doors	Yes
EN 1125 CE Certificate	Yes
Distance	Double (72-92 mm)
Mechanism width	35 mm
Protection from the door	Lower than 100 mm (category 2)
Follower	9 mm
Steel mechanism	Yes
Levers	In steel plastic coated
Bar (to be ordered separately)	Available in different materials and finishes
Available accessories to be ordered separately:	Compatible mortise locks Counterplate External accessories Cylinders Relatching device and connecting rods Escutcheon kit fod secondary leaf
