NT01

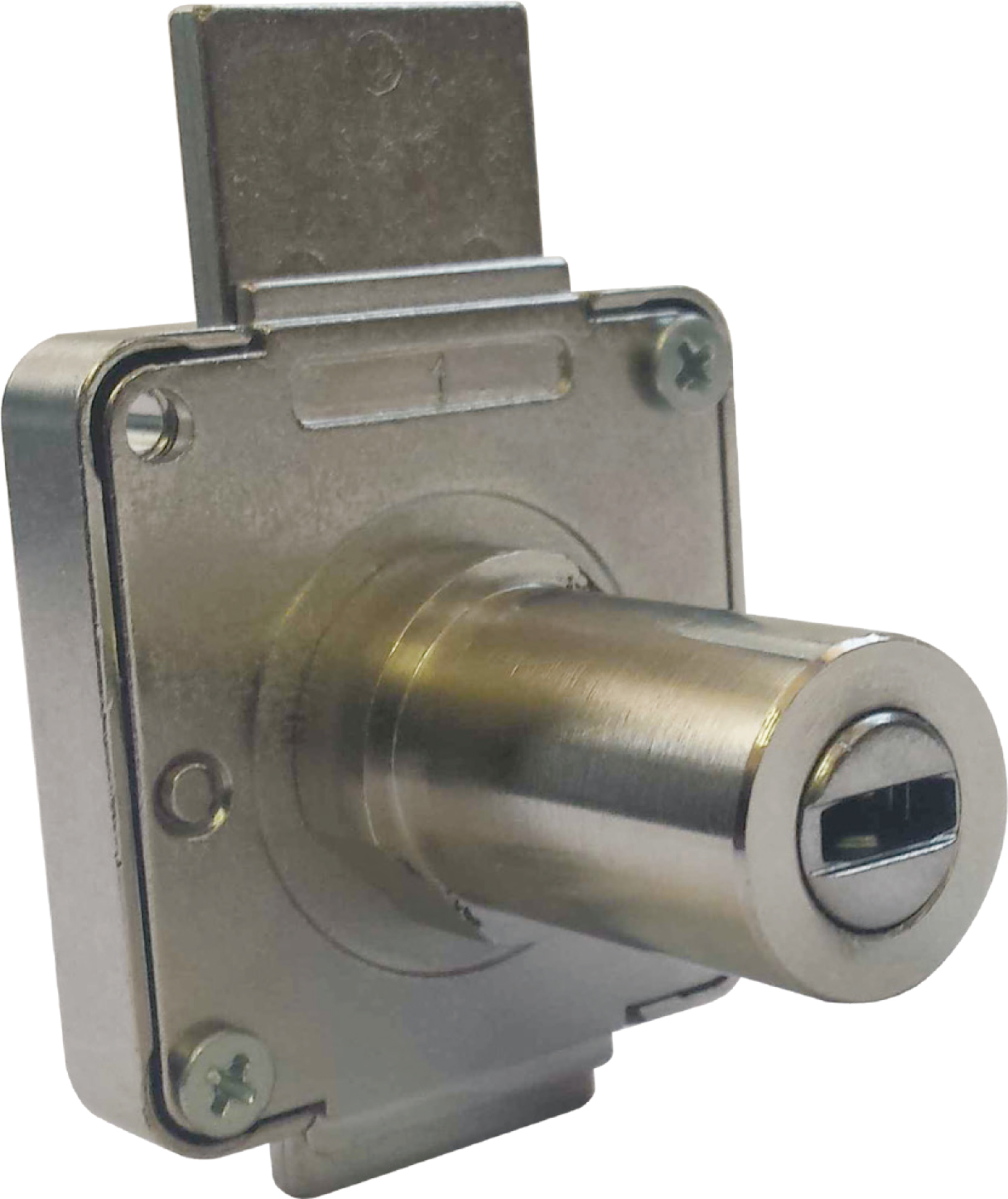

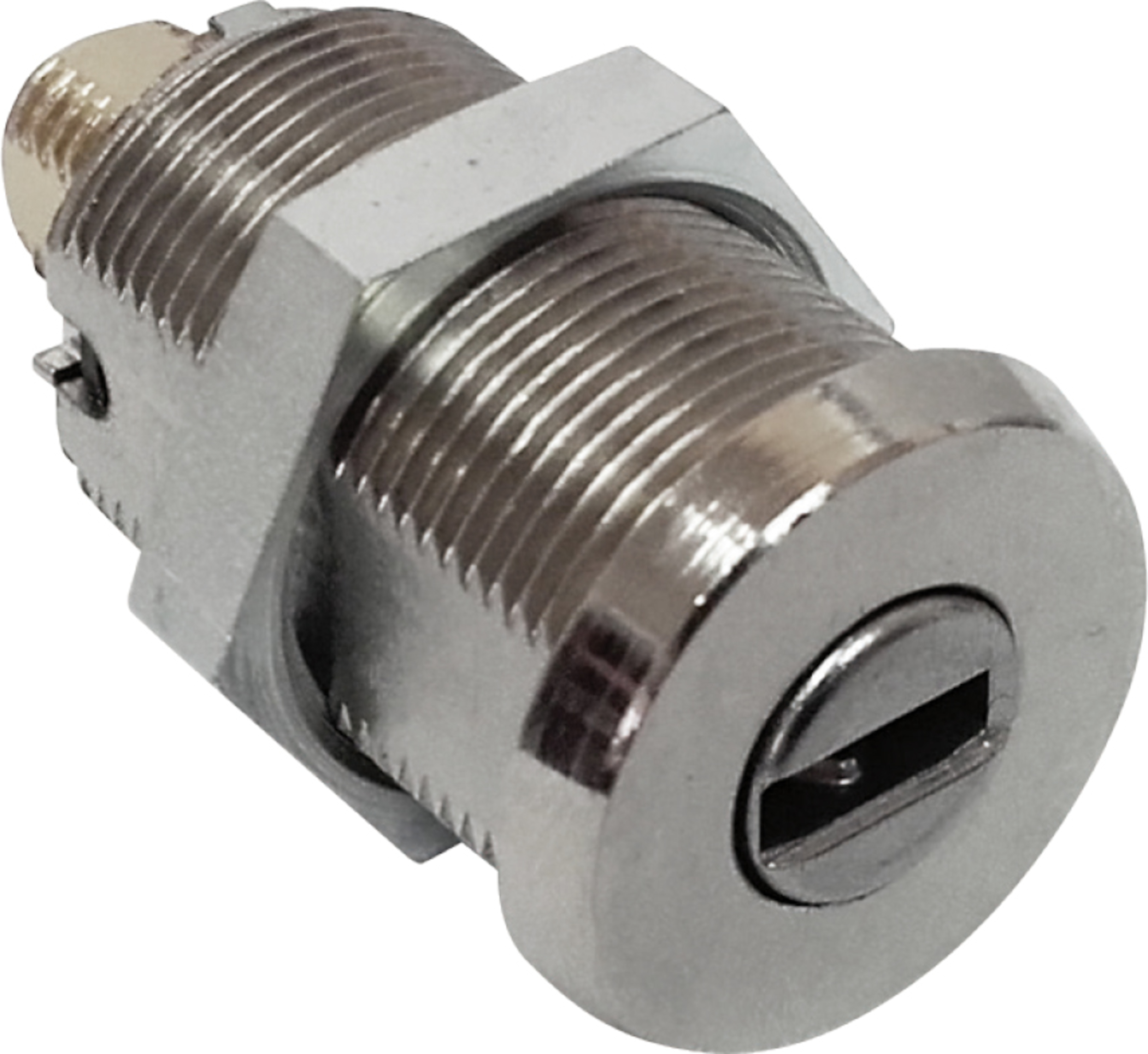

eCLIQ Camlock M19 body. Electronic, optionally available as mechanical (rotary-secured)
Brass cylinder housing components
Standard finish, satin nickel-plated (-SN)
Available with 90° or 180° turn clockwise or anti-clockwise
Available as 1 or 2 position key removal (at 0° and 180°)
Multiple cam fixings available to accept different cam types - M10 7.5mm horizontal, M10 8mm square, M10 8mm vertical, M7 5mm vertical, M7 6.8mm square
eCLIQ cylinders are maintenance-free for up to 200,000 cycles
Splash-proof IP54 as standard
IP55 Dust and rain protection cap available (-WP)
Optionally anti drilling protection class 2 (-AD)
Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)
