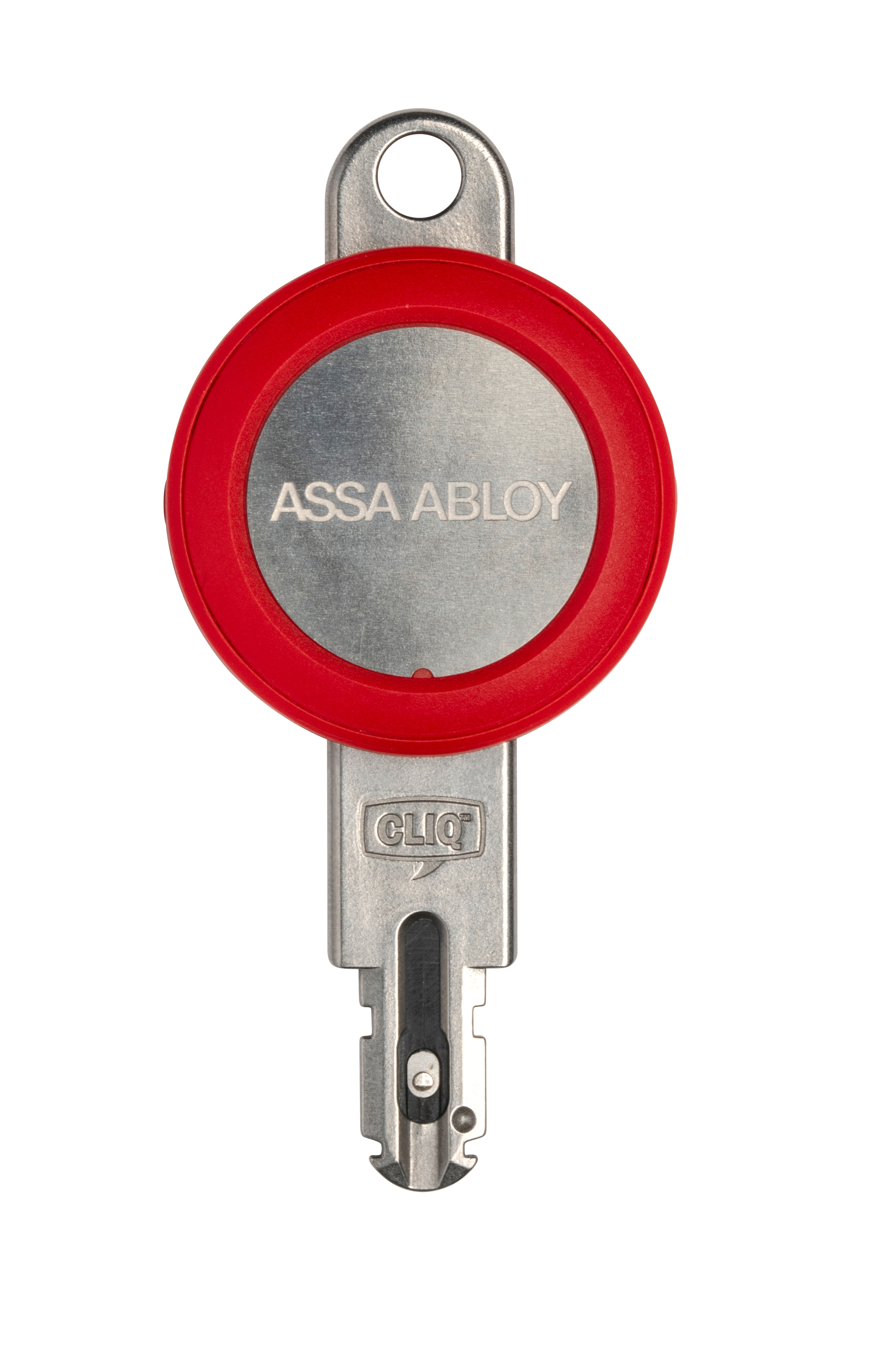

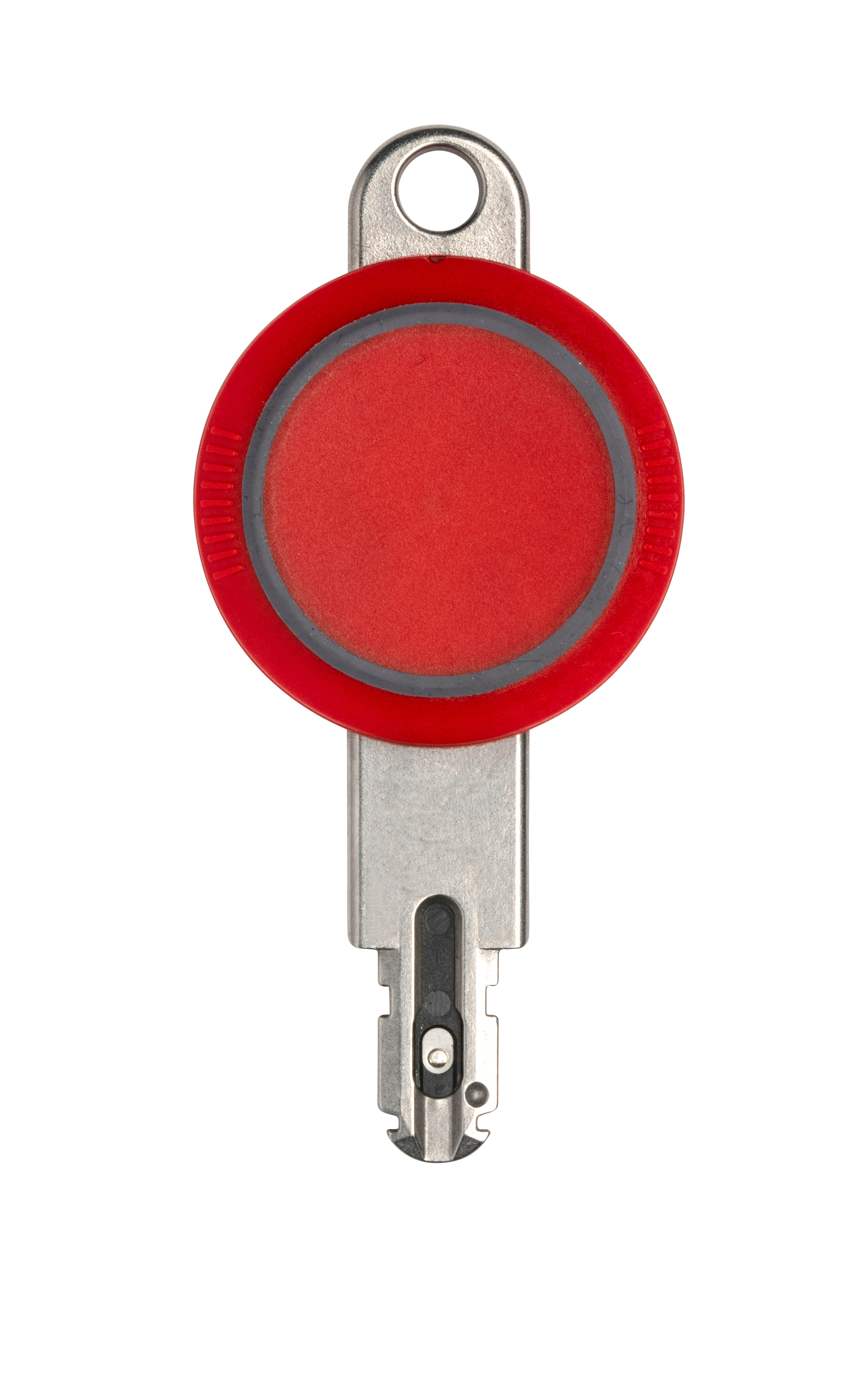

eCLIQ Control Key

eCLIQ control key is used to log into the CLIQ software and carry out programming jobs at the cylinder

Electronic authorisation confirmation within the software Protected by a 6-digit individual PIN code

The electronic contact transmits data securely between the keys and locks

Transfers up to 3,000 programming steps to cylinders

Can read out up to 6,000 audit events from the cylinders and transmit these to software

The master control key has full view and control of the software. Optional, additional lower ranking programming keys can be supplied for a locking system

AES 128 bit encryption for ultimate electronic security

Reversible key design ensures the key always fits, regardless if which direction it faces when inserted into a cylinder

LED indicator and acoustic signaling for functional operation

Temperature range 0° C to +70° C

Protected against temporary immersion in water (IP67)

Powered by commercially-available lithium battery (CR2032) For 30,000 locking operations (service life of about 3 years)

The battery can be easily changed by the user without tools

Standard colour for battery cover - red

Other colours for battery cover available: blue, yellow, green, grey, red and orange

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

Scope of delivery

1 electronic Control key, including battery
