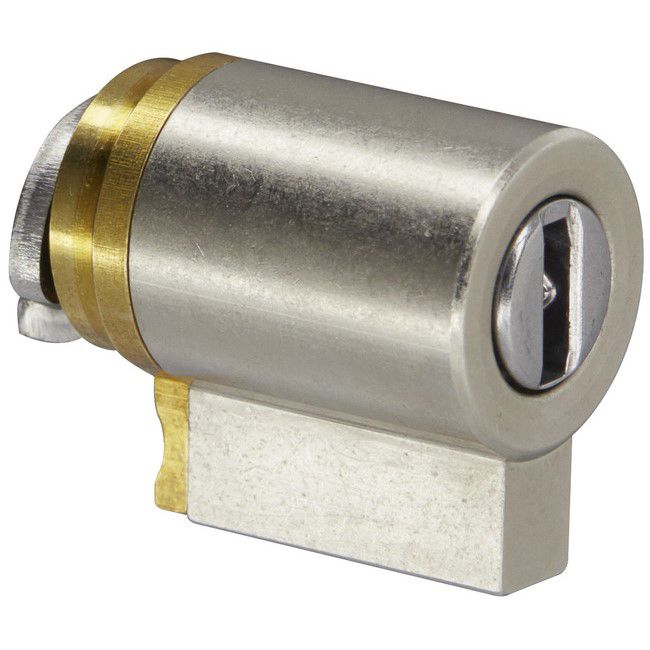

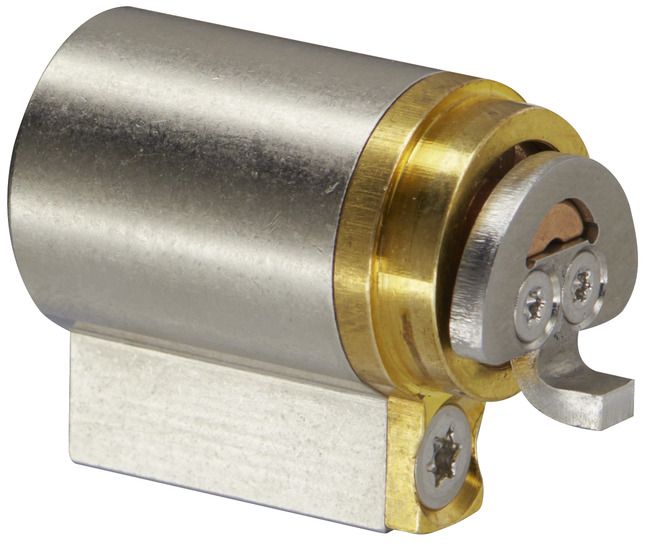

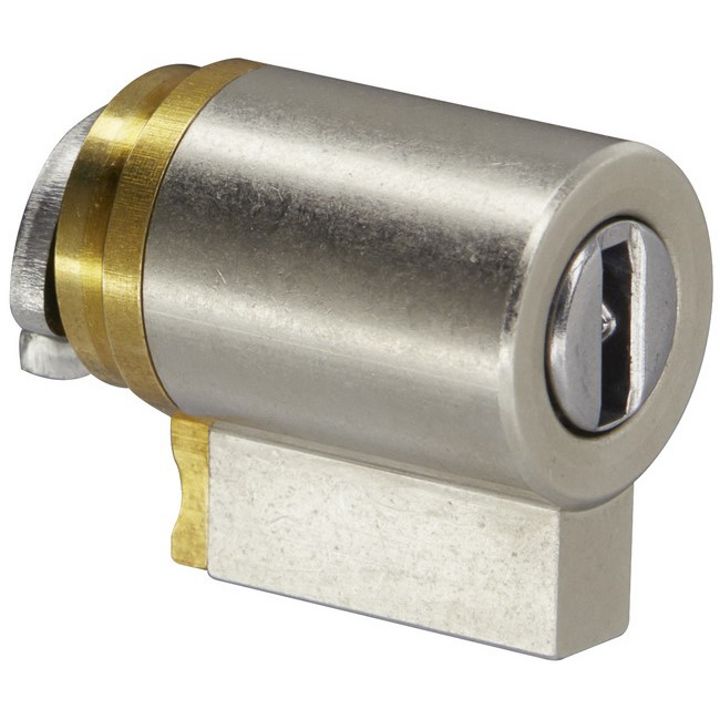

Locking cylinder eCLIQ N702

Without key

Product description

This locking cylinder is constructed for use in auxiliary locks like e.g. CISA rim locks. The cylinder allows locking of the auxiliary locks from the inside. On the outside a N701 round cylinder is used
Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Maintenance-free for up to 200,000 cycles
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

Article number	OF= (Surface)	V= (Version)
N702	MV (Matt, nickel-plated)	D (Rotary secured version)
	MV (Matt, nickel-plated)	E (Electronic version)

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per cylinder

ATEX=	Description	Info
II 2G Ex ib IIB T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder

V2=	AUS3=	Description	Info
OHNE AUDIT		Cylinder without events list, frontal marking with symbol "§"	per cylinder
	ONLINE	Cylinder with function "Online Open", frontal marking with symbol "@"	per cylinder
	SEQUENCE	Cylinder with function "two-man rule", frontal marking with symbol "&"	per cylinder
