XCY2X18

Euro Cylinder

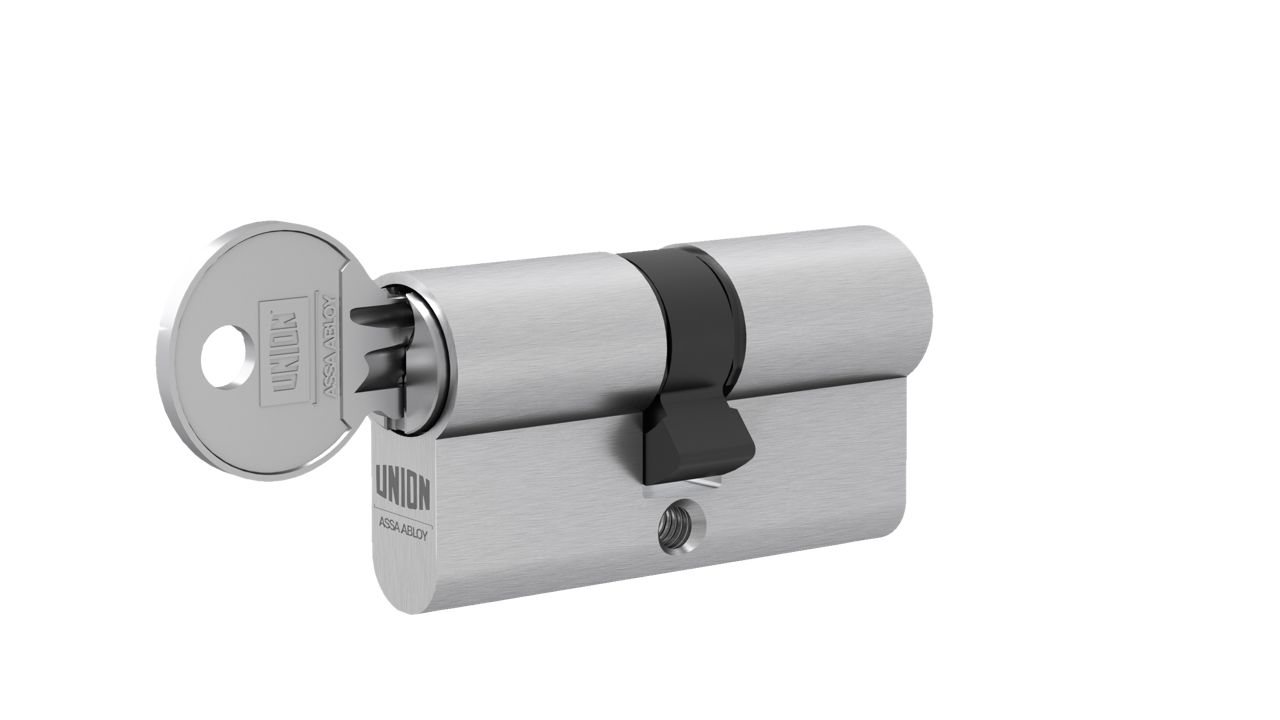

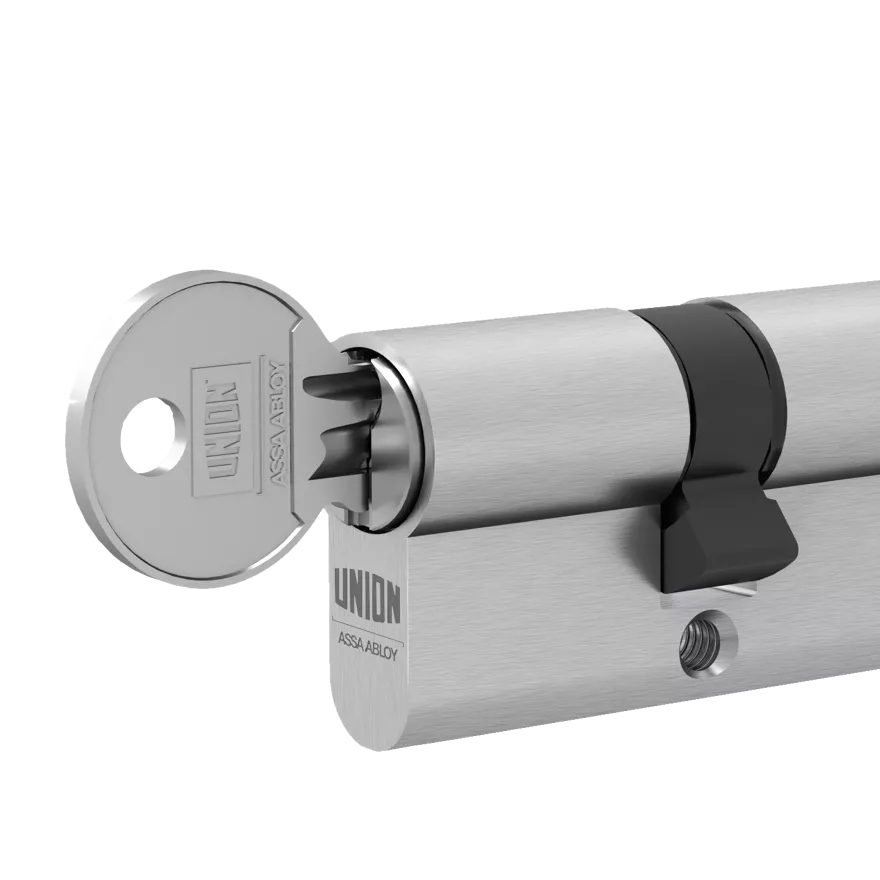

XCY2X18 - Euro Cylinder Double

Application:

• For use on Euro profile cylinder locks

• Can operate on left hand and right hand doors

• Can be used on doors up to 64mm thick

Specification:

• Key both sides

• Brass body cylinder, available in SN, PL & AB finish

•  5/6 pin cylinder

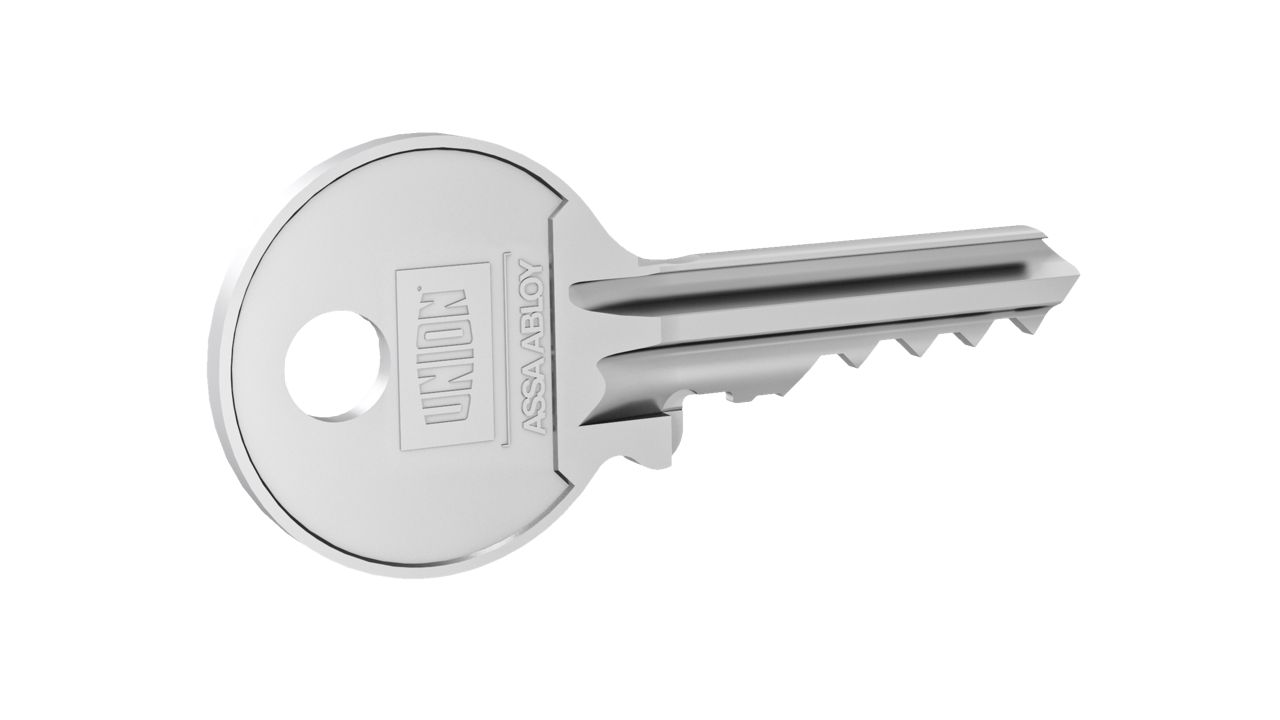

• Sawn key

• Available sizes 60mm - 90mm

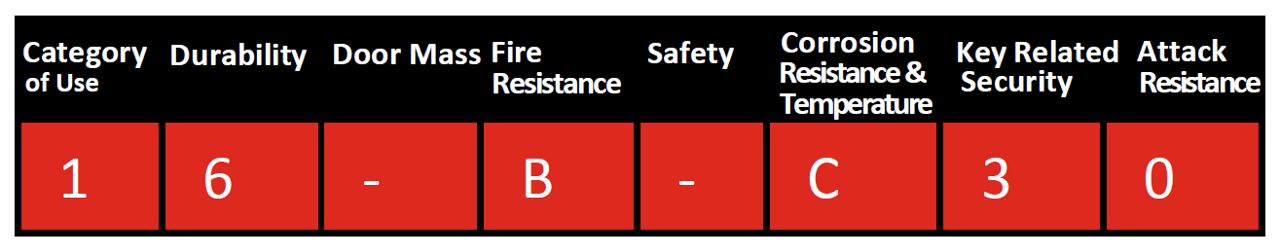

• Tested to EN1303:2015

• Tested to 300,000 cycles

• 21,000 effective key differs

Variants:

• XCY2X18-60SNKD - Euro Cylinder Double Satin Nickel 60mm KD

• XCY2X18-70SNKD - Euro Cylinder Double Satin Nickel 70mm KD

• XCY2X18-80SNKD - Euro Cylinder Double Satin Nickel 80mm KD

• XCY2X18-90SNKD - Euro Cylinder Double Satin Nickel 90mm KD

Finish:

• SN – Satin Nickel finish

• PL – Polished Brass finish

• AB – Antique Bronze finish
