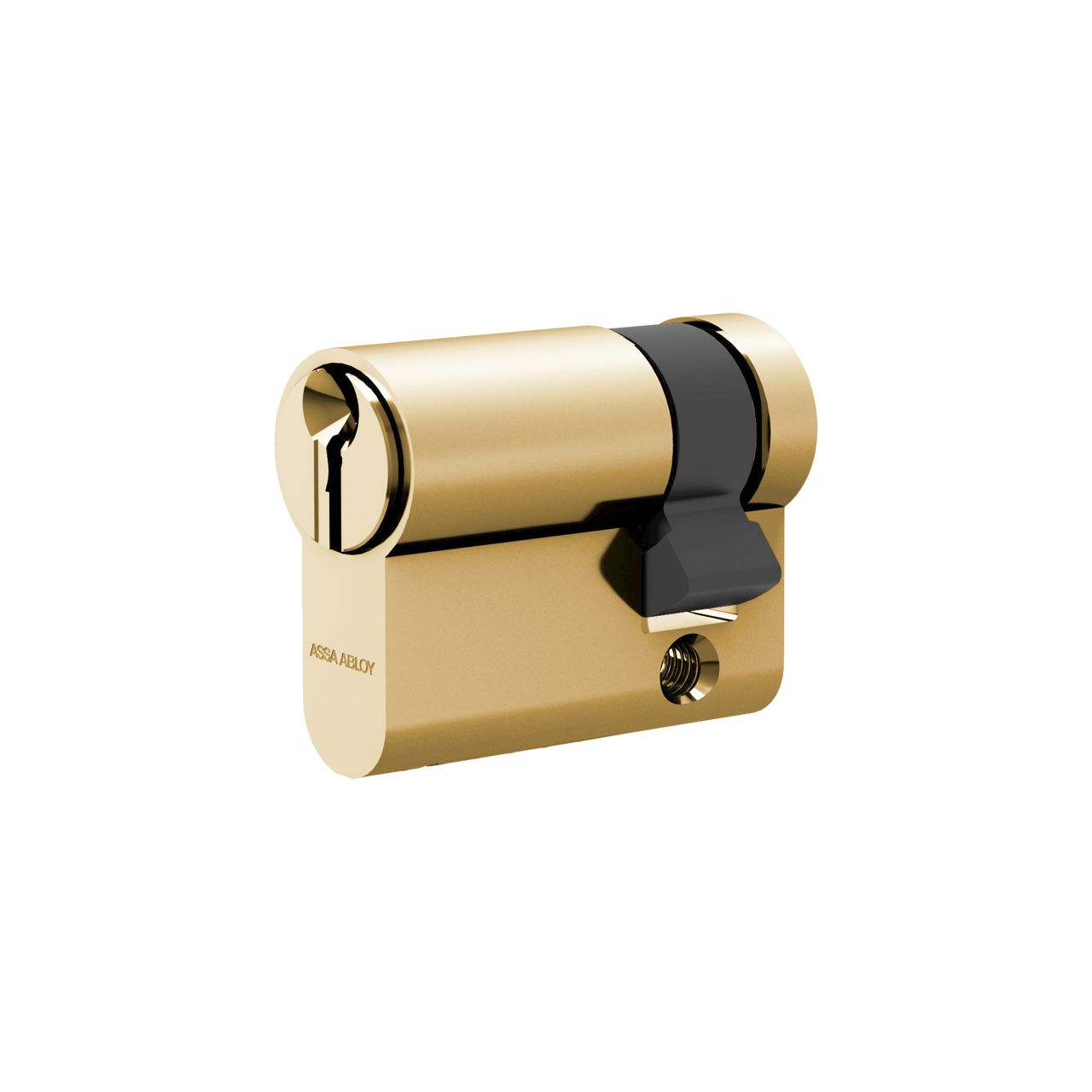

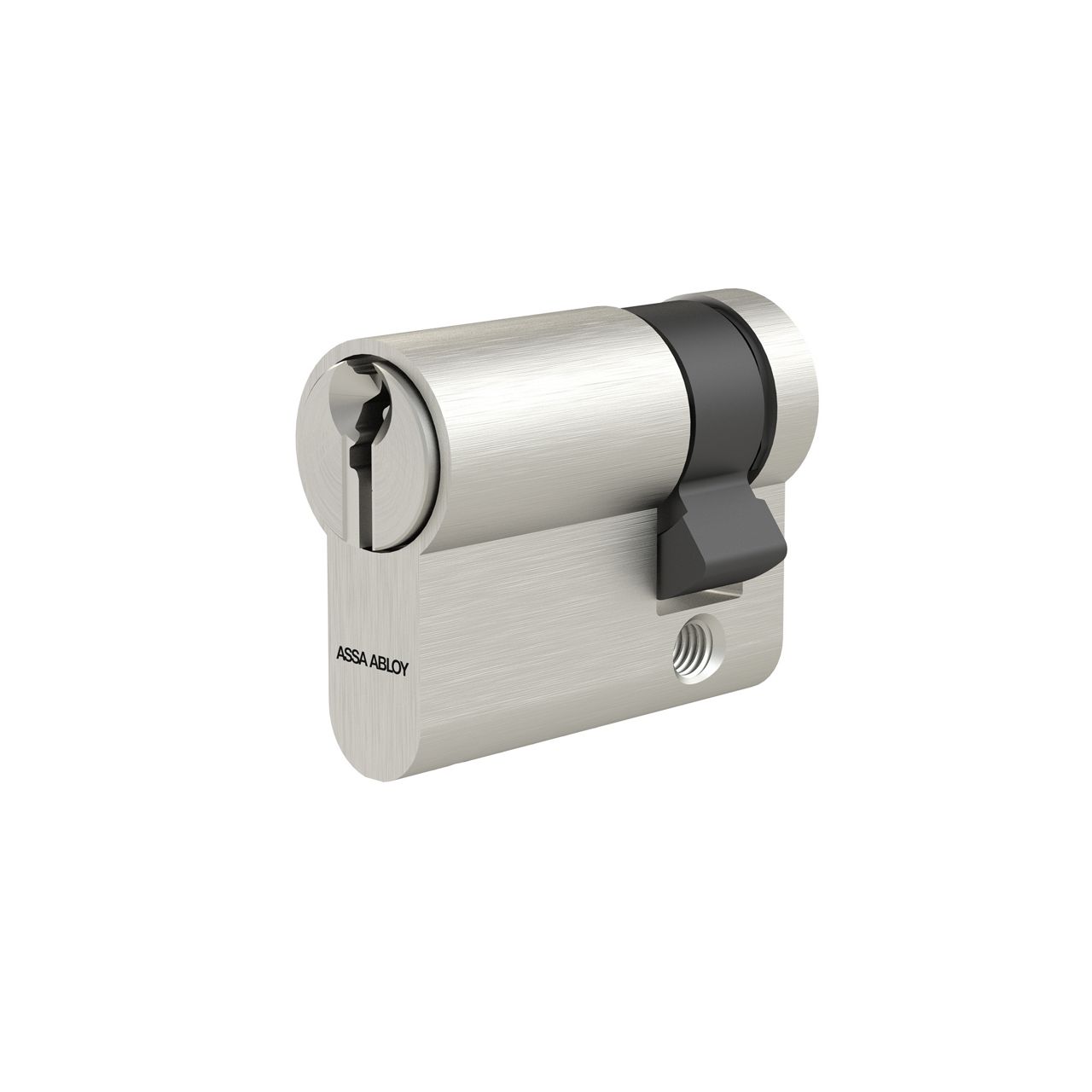

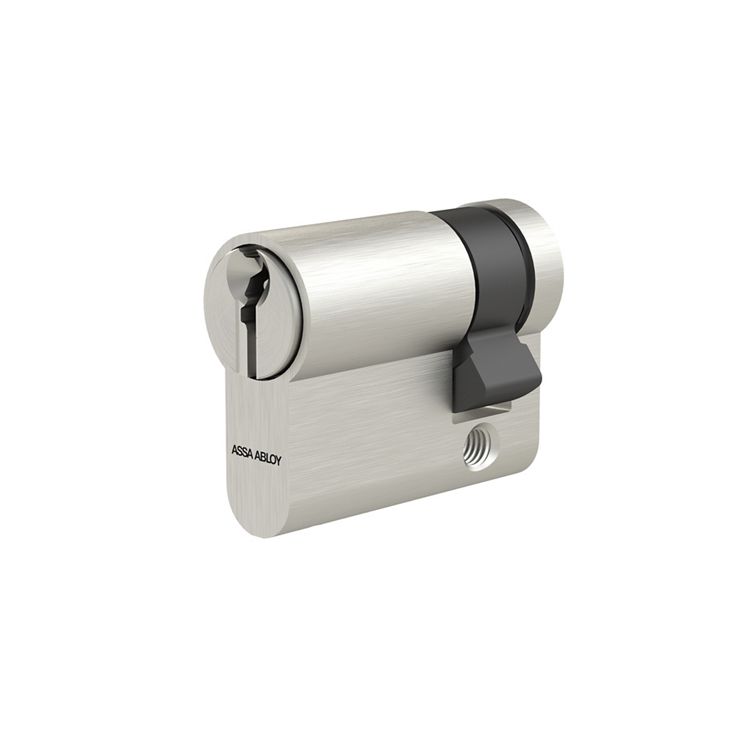

CYS00 Single Euro Cylinder

Highly durable 6-pin cylinder with the performance to secure your building.

Keep interior spaces secure with the CYS00 Single Euro Cylinder.

Applications:

* check regional availability

Optional functionality:

** check regional availability for 2023

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.

Feature	Detail
Security	EN 1303:2015 tested, 1 6 – B – C 6 D \| Designed to pass TS007 and SKG** \| Cam DIN 18252 compliant
Attack resistance	Anti-pick (TS007 standard) \| Anti-drill ‒ 5 minutes' drilling resistance \| Anti-pull ‒ 15 kN pulling resistance \| Anti-bump (TS007 standard)
Number of keys	3
Max. number of effective key differs	108,547
Number of pins	6
Raw material	Brass
Finish	Satin Nickel \| Polished Brass \| Black (check regional availability) \| Antique bronze (check regional availability)
Cylinder length	Minimum: 27.5/10 mm \| Maximum: 80/10 mm \| Increments: 5 mm (starting from 30/10 mm)
Weight	136 g (length 30/10 mm)
