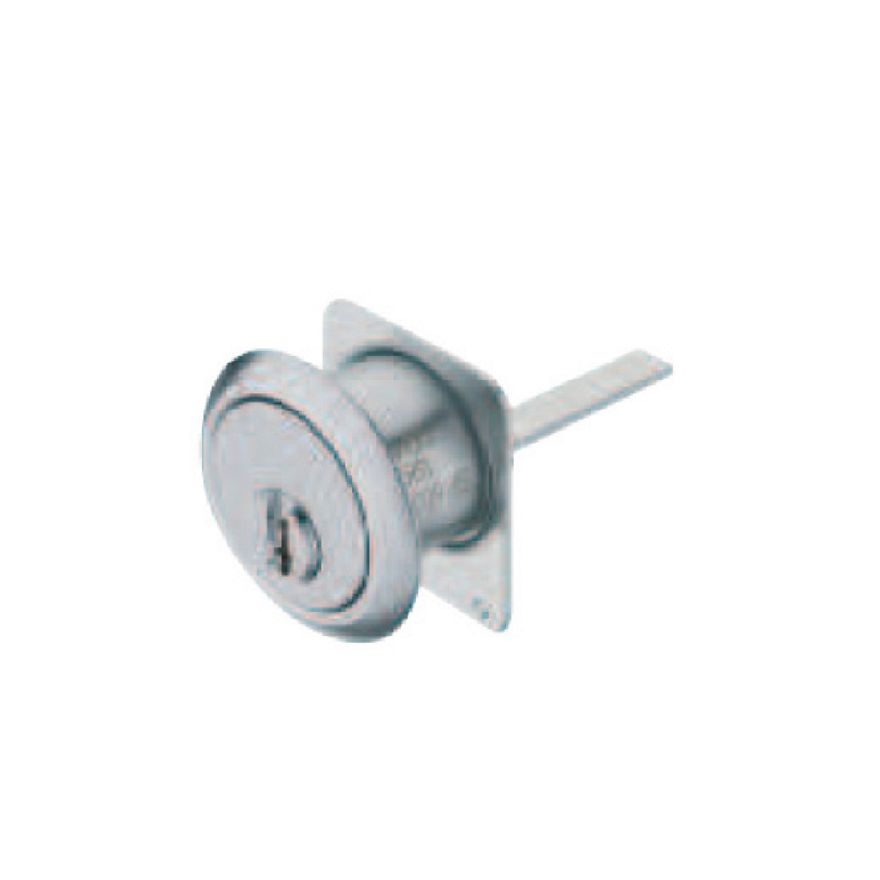

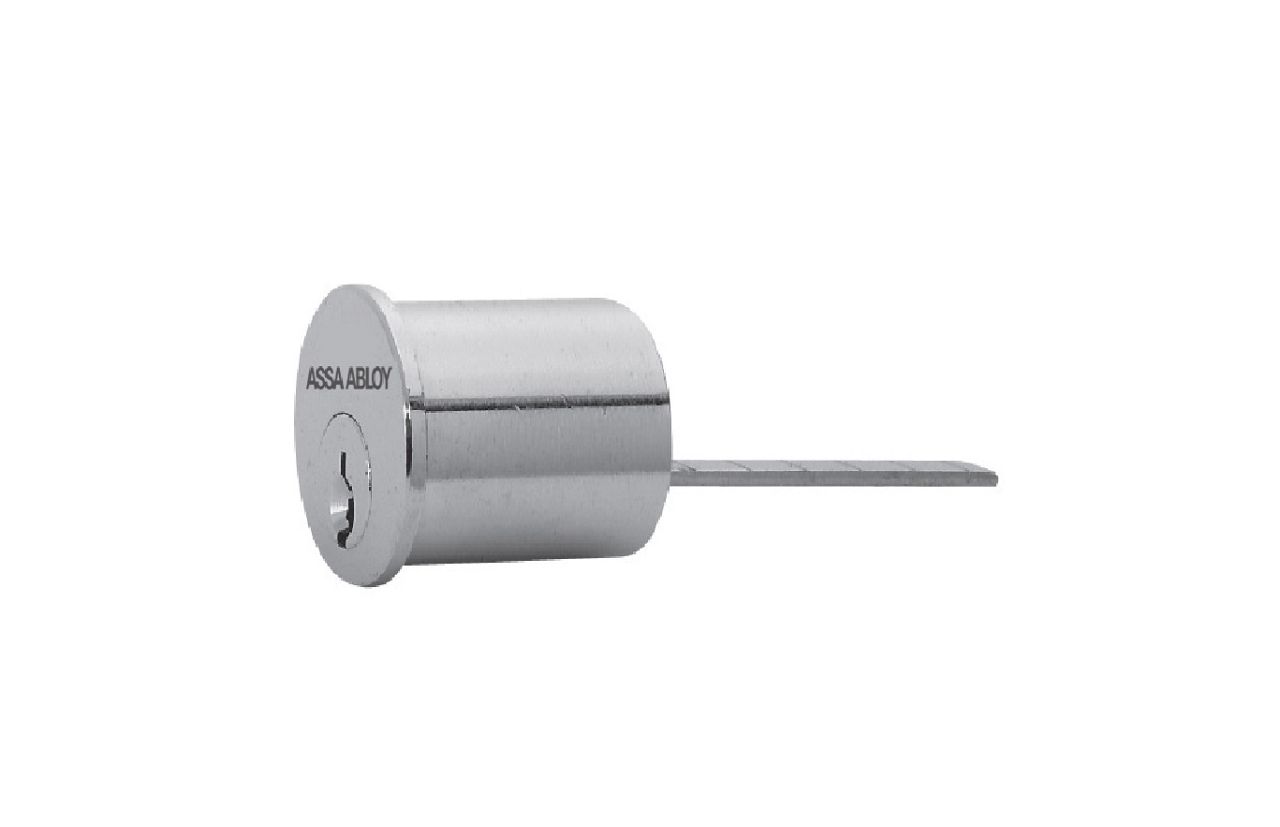

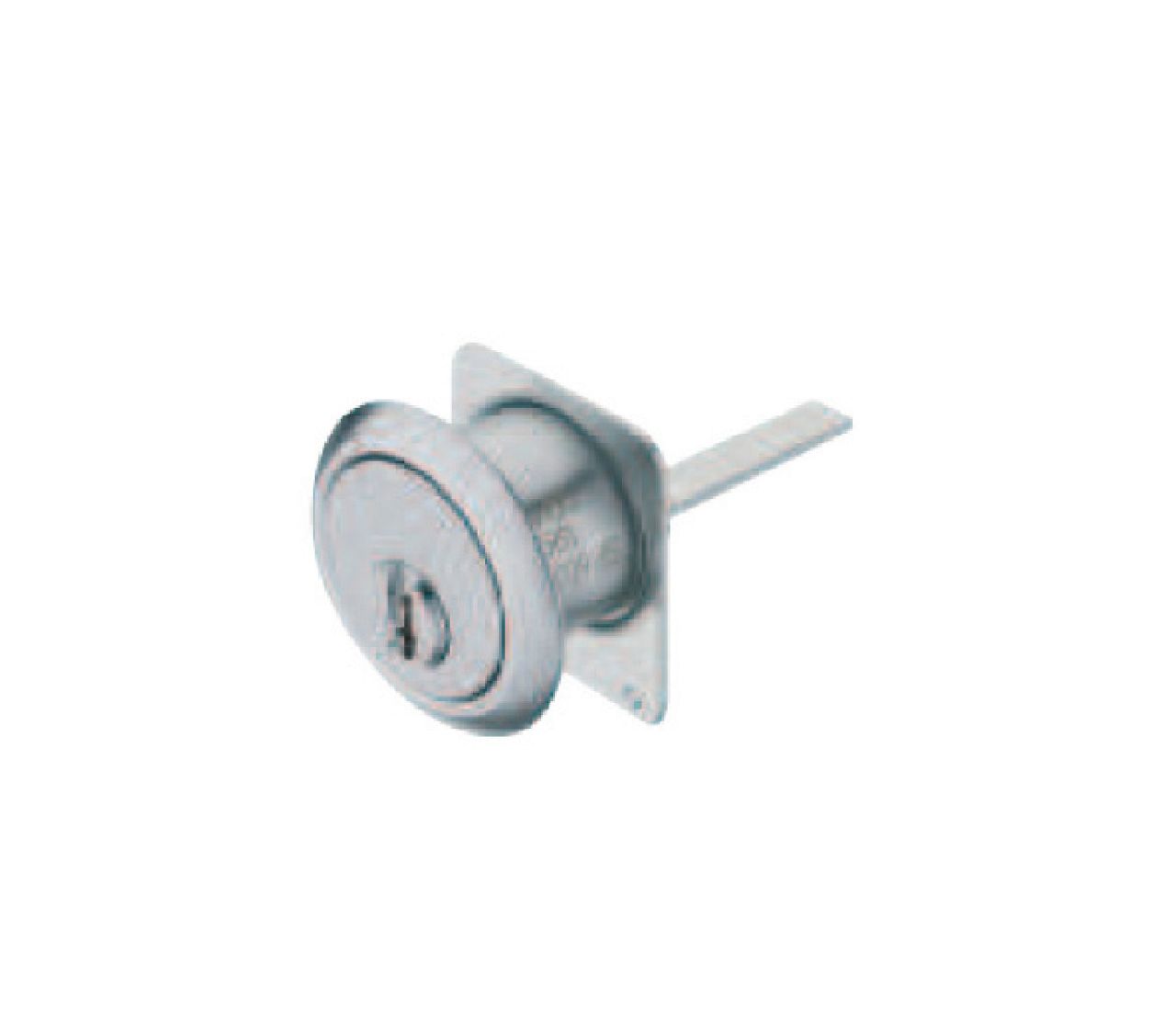

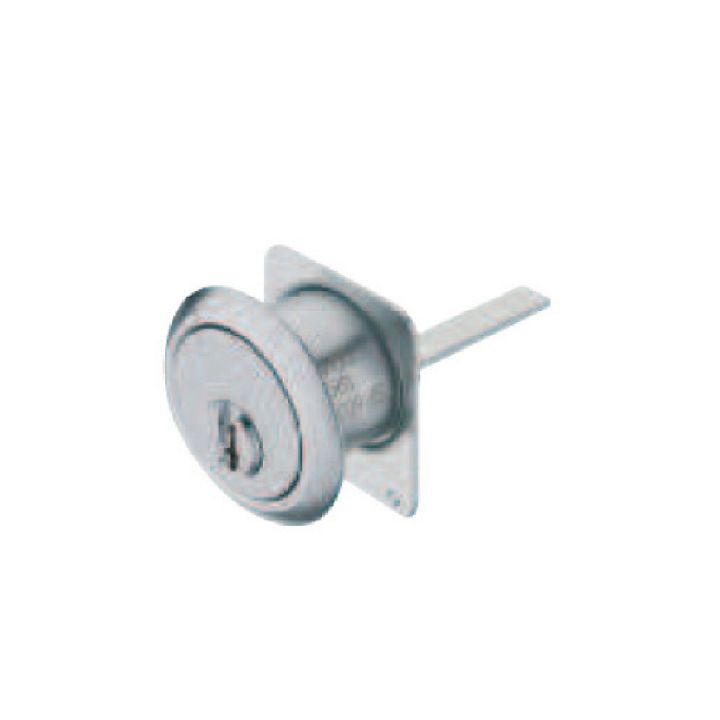

CY20 offers a range of rim cylinders in standard American format suitable for multiple level master keying.
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions
of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Areas of Application
Mortise locks, exit devices, key switches and other hardware items that are operated by rim cylinders.
Material
Brass
Standard Keyway
SC Keyway
Keying
Factory master keying or 0-bitted/uncombinated for end user keying
Optional Keyways
Other keyways available upon request

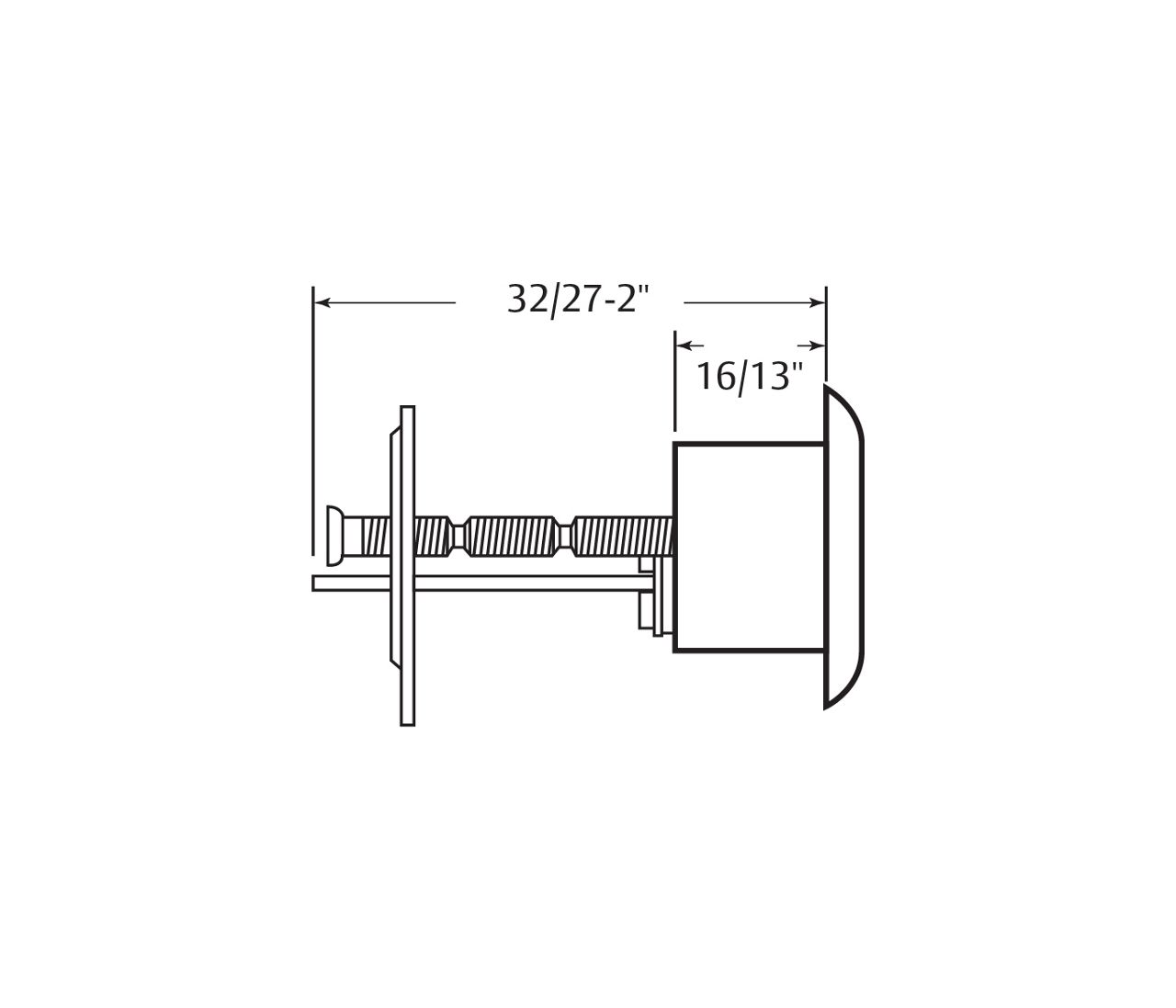

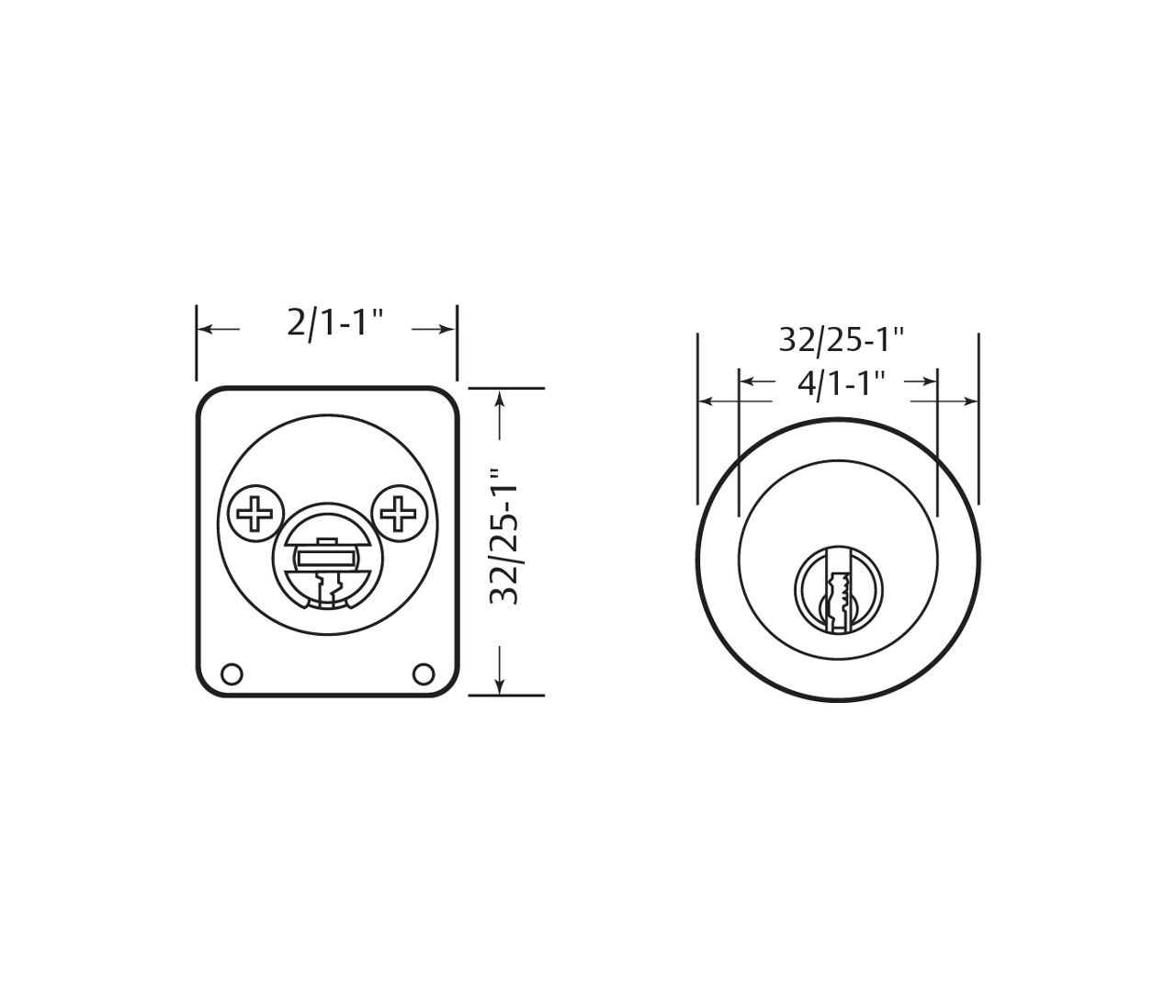

Standard Length
6-7 PINS
Certifications
ANSI/BHMA: Meets the requirements of ANSI A156.5-2001
Note: For use in other manufacturer securing devices,please mention the manufacturers tail piece number with manufacturer name prefixed for tail piece selection in ordering information.
