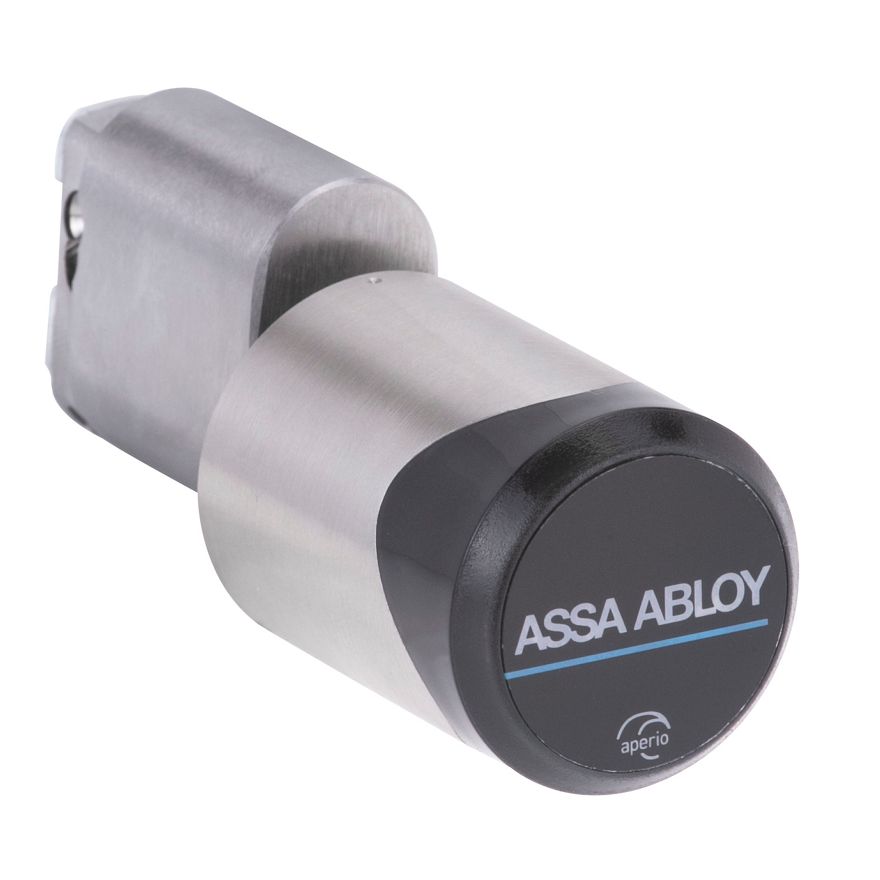

Aperio® C100 Knob Cylinder

Key Features

• Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system
• Compatible with Australian 507 oval, 201 rim and 8466 Kawneer Cylinders
• Main electronics (RFID + radio) in the outside knob - secure electronics inside cylinder core
• Freely rotating lock cam
• Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub
• Smart Credential Handling: In addition to the override credentials, the last valid credentials (up to1000) can be cached automatically and for a limited time (up to 30 days), so that an opening can still be made without the intervention of the administrator
• LED for status visualisation (red/green/orange)
• Works with an online system or as an offline lock
• Supports the following RFID technologies: MIFARE Classic^®, MIFARE Ultralight^®, MIFARE^® DESFire^®, MIFARE Plus^®, MIFARE^® SE, MIFARE^® DESFire^® SE; iCLASS SE; iCLASS Seos^®, iCLASS Seos Elite
• The C100 provides Mobile Access (BLE) for use with Smart Phone Credentials.

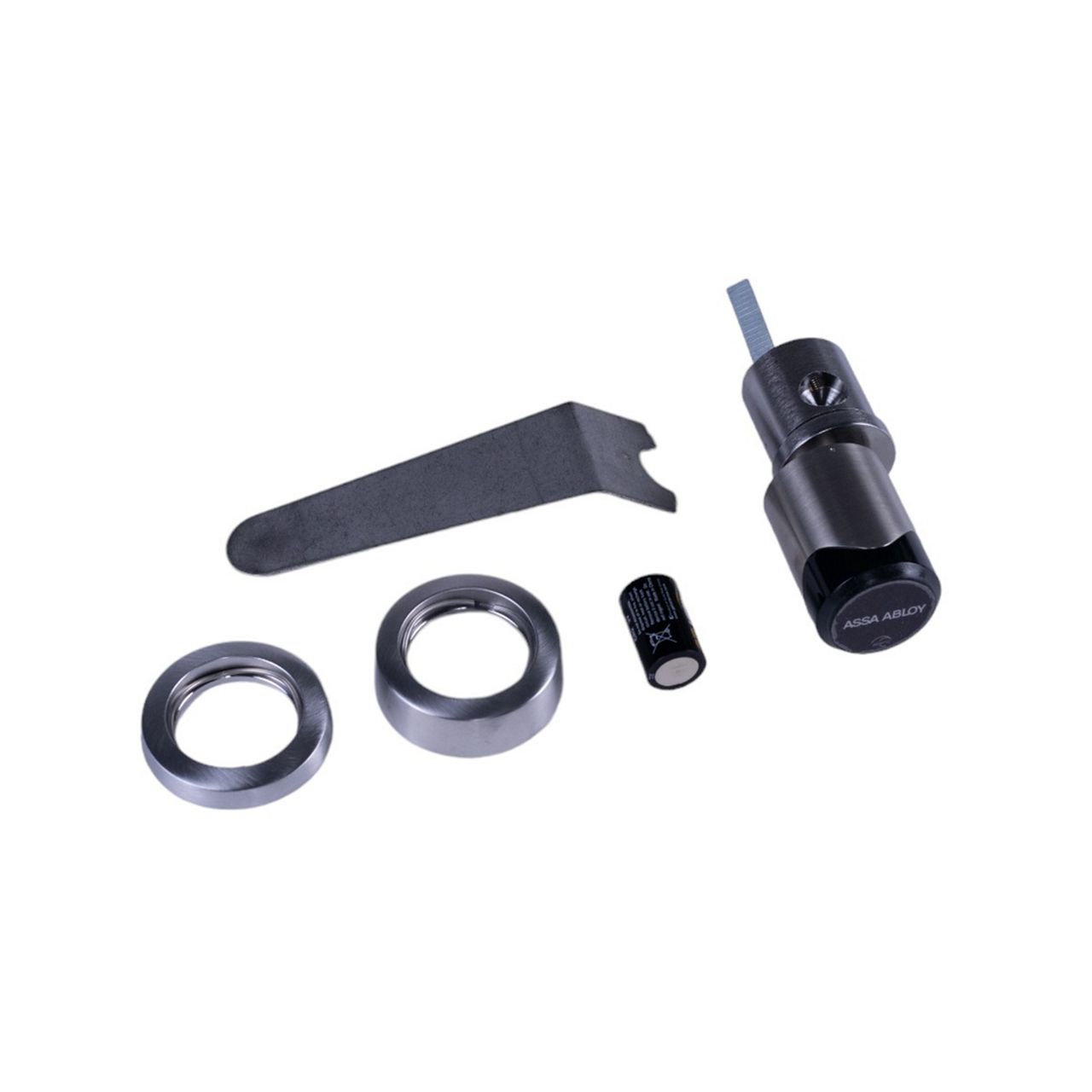

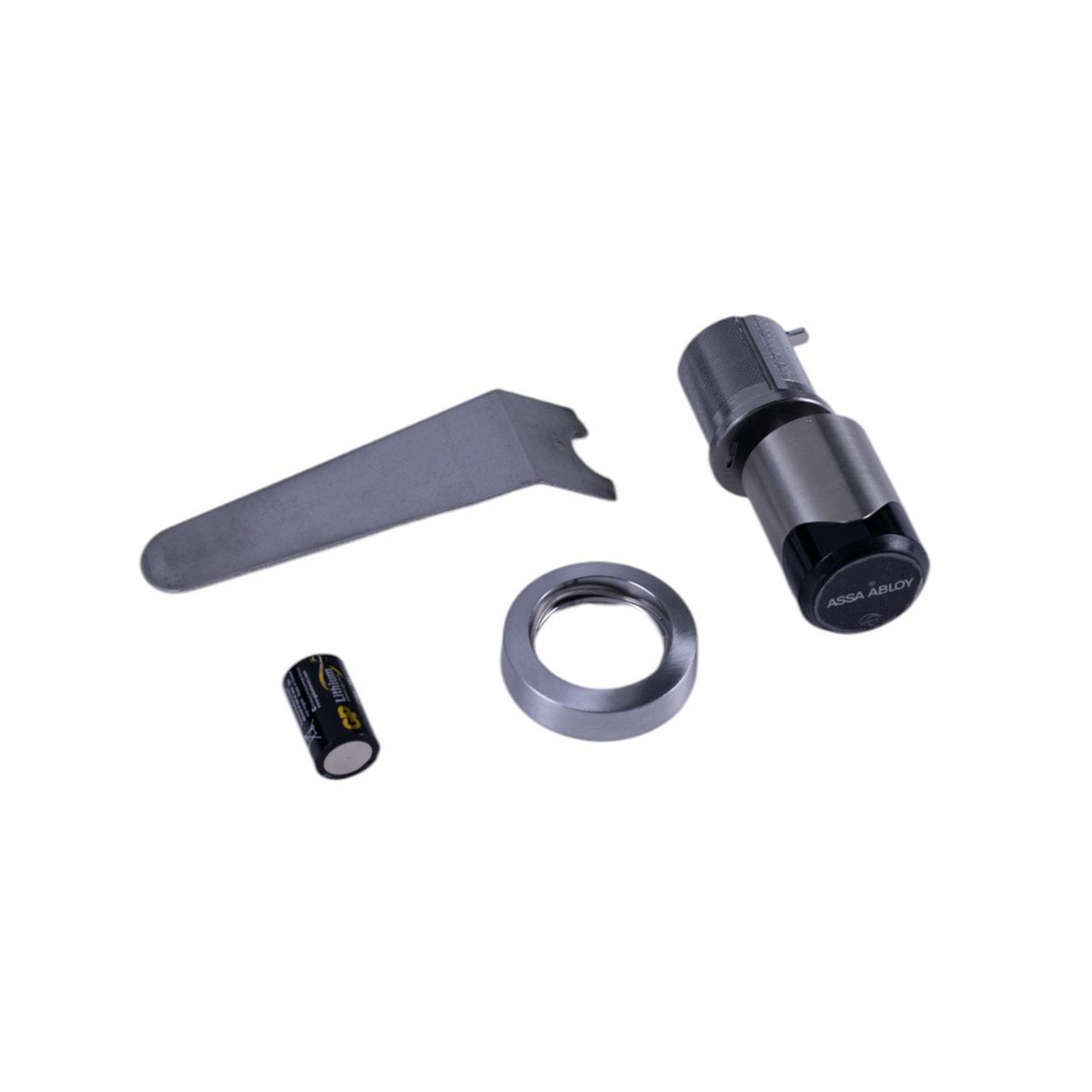

Scope of delivery

• 1 single knob cylinder with battery (Lithium CR2) and installation instructions
• Screws and fixing material
• Battery change tool
