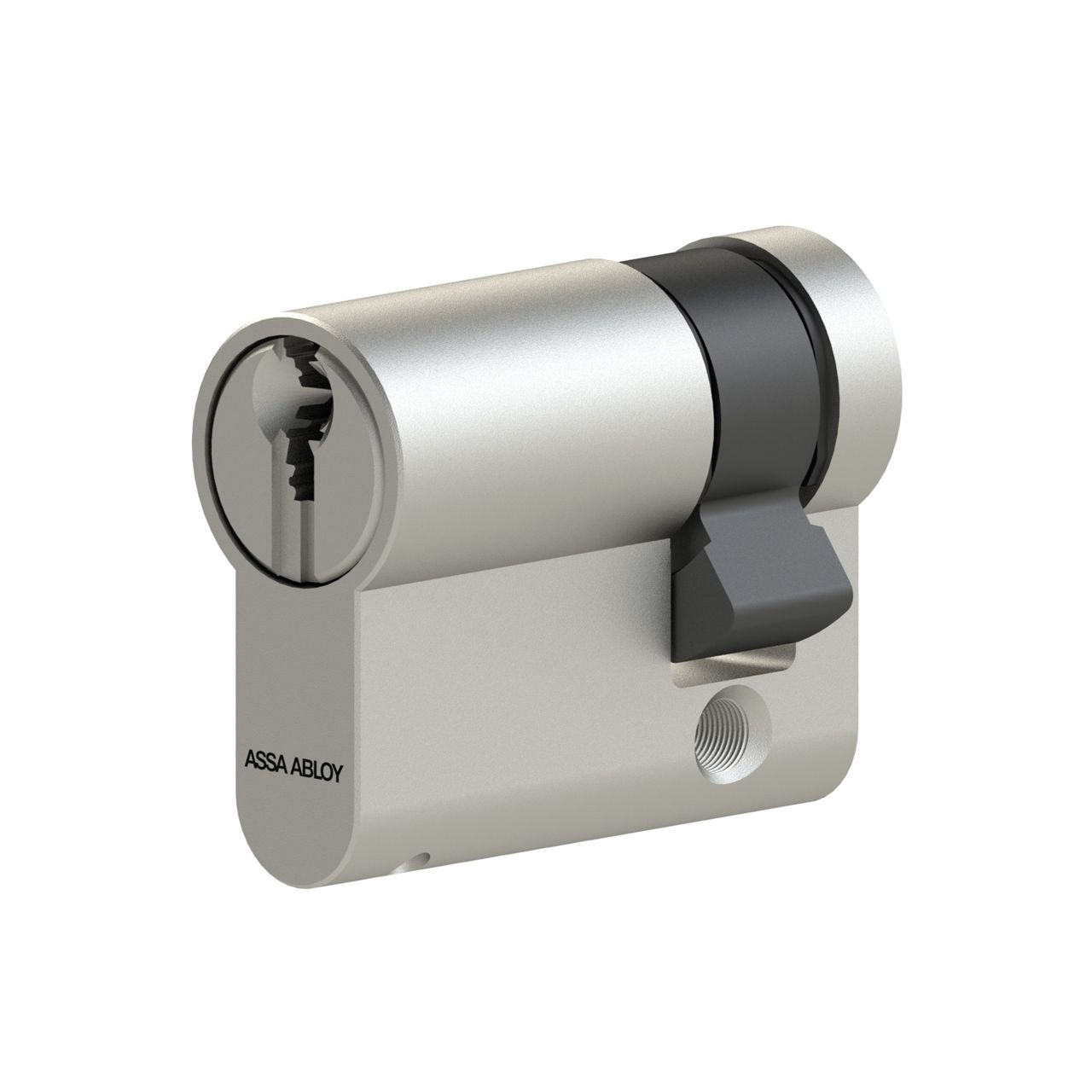

CYS10 Euro Single Cylinder

CYS10 Euro Single Cylinder – A highly durable 6-pin door cylinder designed to secure interior spaces in residential and commercial buildings.

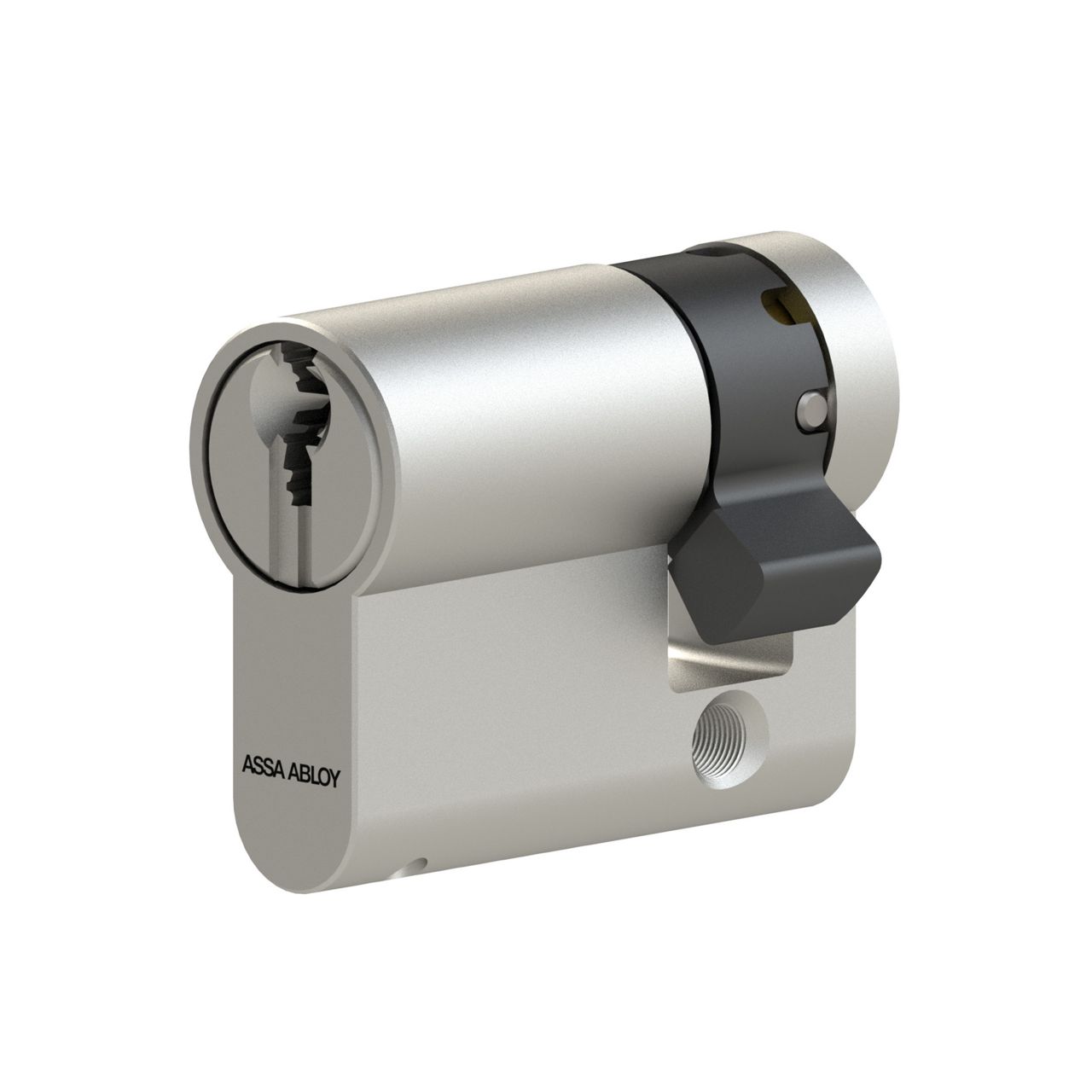

Its adjustable multi-position cam (8 positions) allows easy customization to match a wide range of door applications.

Applications:

Optional functionality:

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.

Feature	Detail
Security	SKG*** certified (optional) \| EN 1303:2015 tested, 1 6 – B – C 6 0/D (D optional) \| Cam DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-bump (only for KA and KD)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	144,729
Max number of MKS profiles	63
Number of pins	6
Raw material	Brass
Finish	Satin Nickel

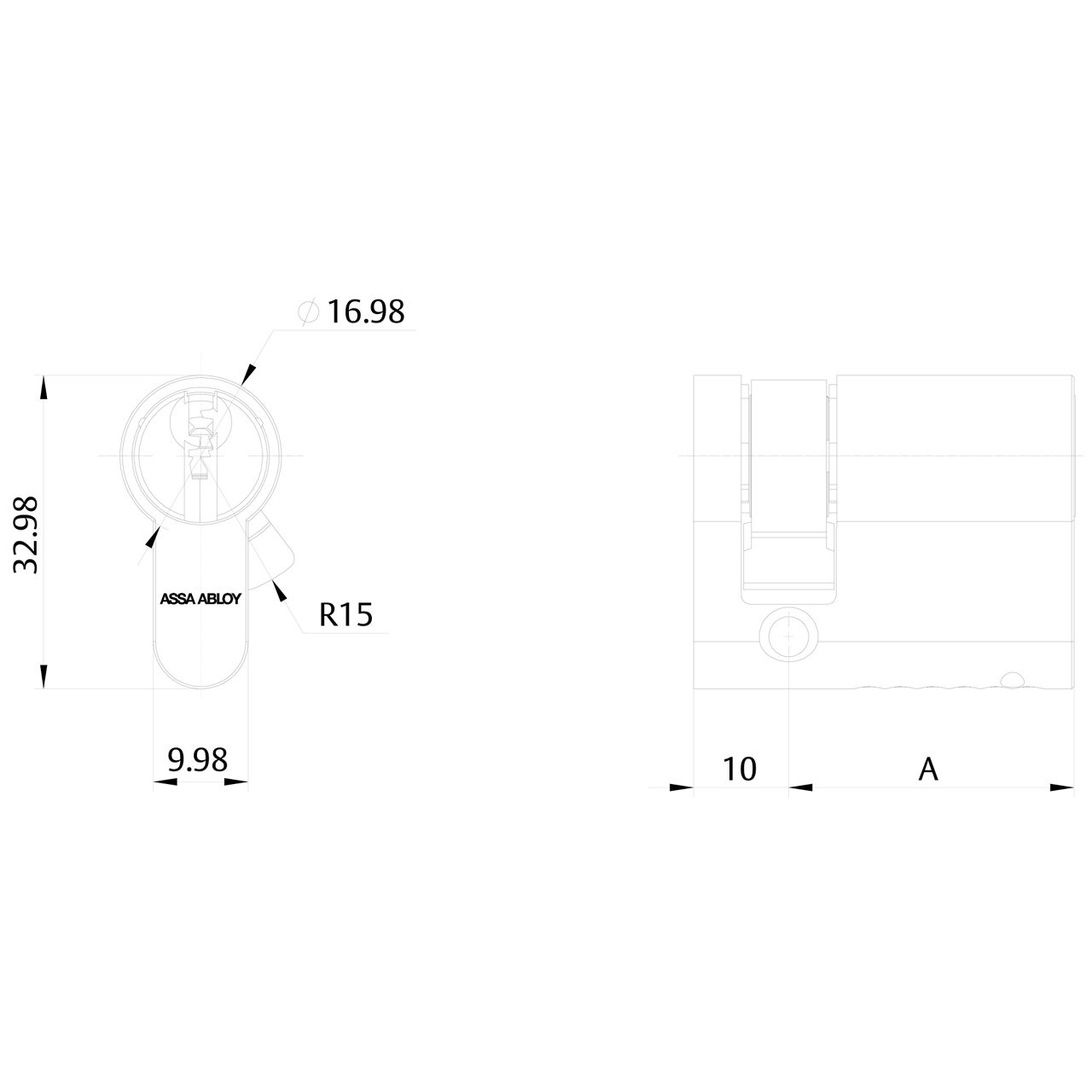

Cylinder length	Minimum: 27/10 mm \| Maximum: 90/10 mm \| Increments: 5 mm (starting from 30/10 mm)
Weight	161 g (length 30/10 mm)
