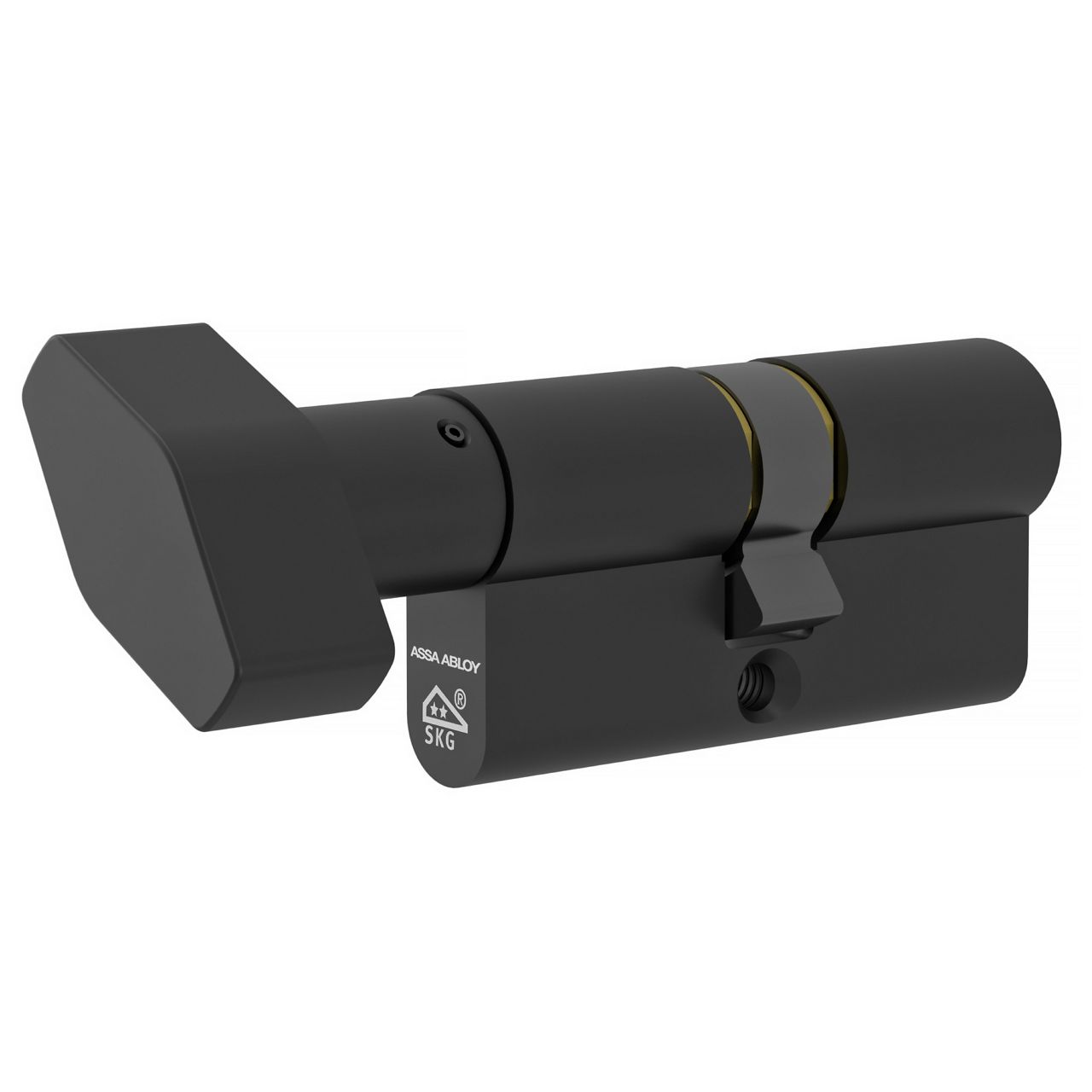

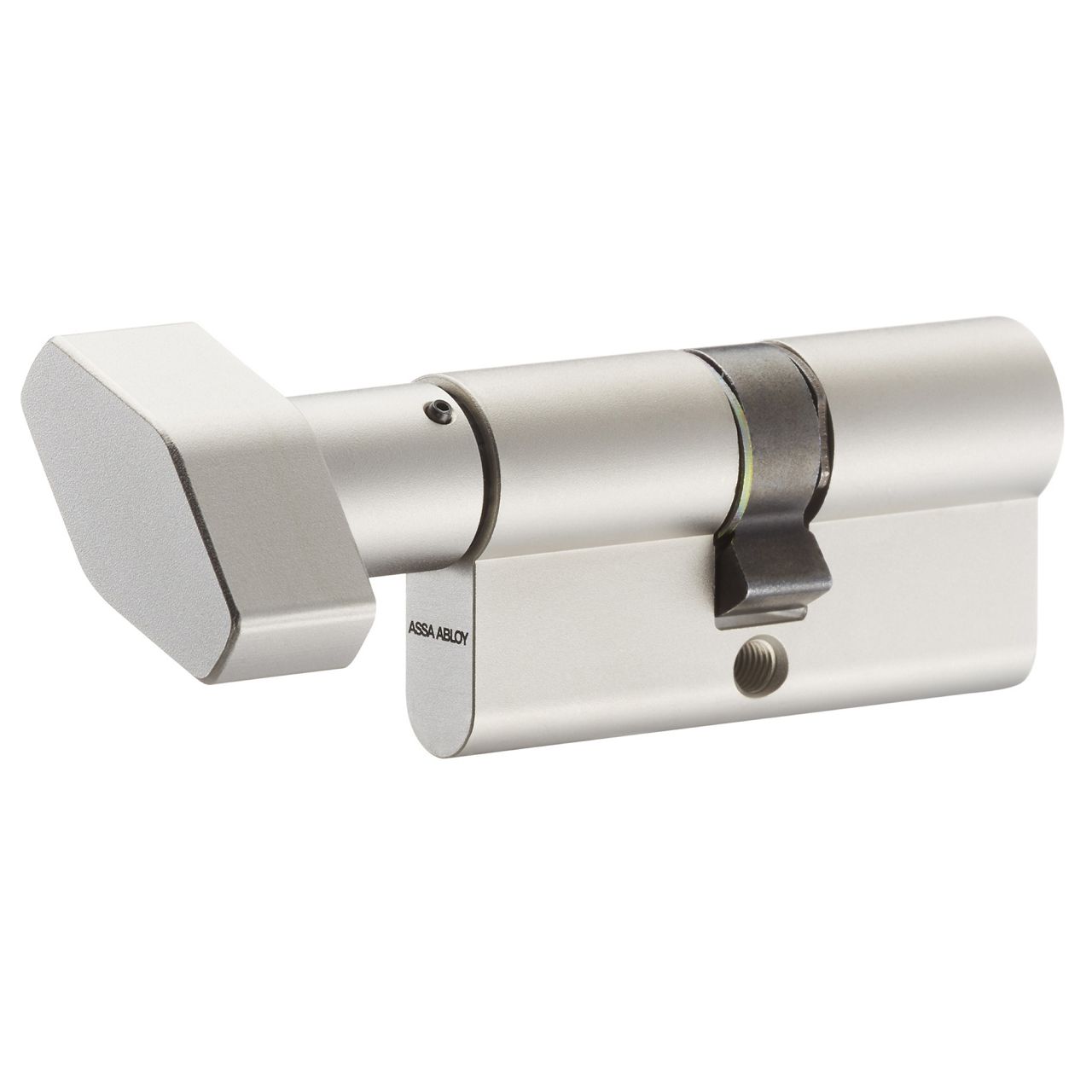

CY110 Euro Thumbturn Cylinder

CY110 thumbturn cylinders offer a secure and convenient solution for rooms that require privacy—locking doors reliably while allowing fast, easy exit.

Application:

For internal or external doors
Available as master key system (MKS), Keyed alike (KA) and keyed to differ (KD)

Finishes Available:

Antique Brass
Black Chrome
Nickel-Silver
Polish Brass
Polish chrome

Specification:

Lengths starting at 30|30 available in 5mm increments up to 80|80
Single thumbturn euro cylinder available
Optional clutch release
Optional classroom function
Diamond shaped turn with matching finish to cylinder body


Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.

Name	Value
Security	EN 1303:2015 certified, 1 6 0 B 0 C 5 0/D* (grade D optional), SKG** certified, DIN 18252 compliant
Attack resistance	Anti-pick, Anti-bump (only for KA and KD), Anti-drill: 5 min. drilling resistance (optional), Anti-pull: 15 kN pulling resistance* (optional), *when used with security escutcheon
Keying	Dimple security design, Master key system (MKS) \| Keyed alike (KA) \| Keyed to differ (KD)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	92,232
Max number of MKS profiles	20
Number of pins	6 (optional side/top pins)
Raw material	Brass
Finish	Satin nickel, Optional: Polished brass, Black chrome

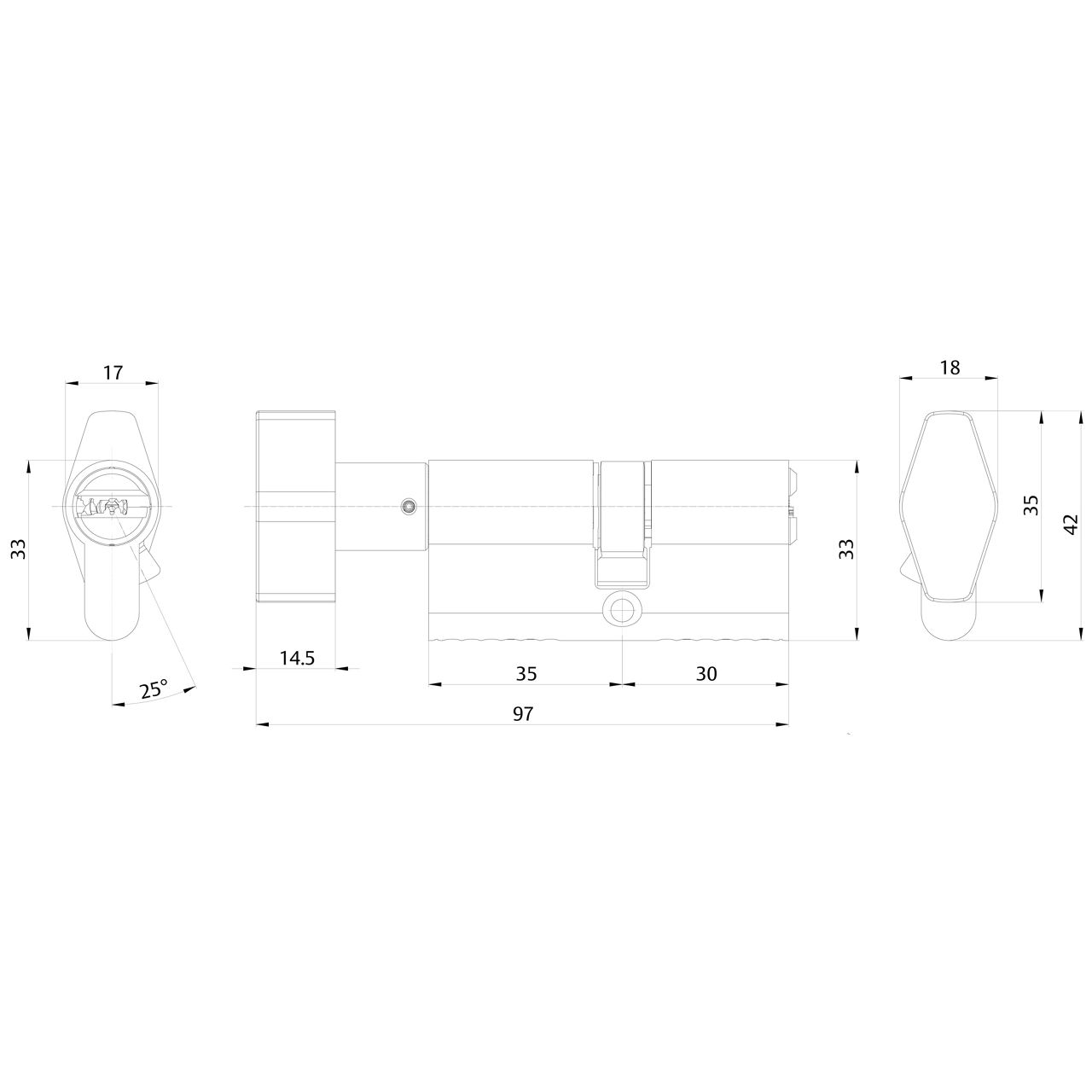

Cylinder length	Minimum: 30\|30 mm; 28\|30 mm, Maximum: 80\|80 mm; 28\|65 mm, Increments: 5 mm (starting from 30\|30 mm), Additional: 32.5\|32.5
Weight	318 g (length 30\|30 mm)
Optional functionality	Gear wheel cam, Clutch release (limited cylinder length), Classroom function + clutch release
