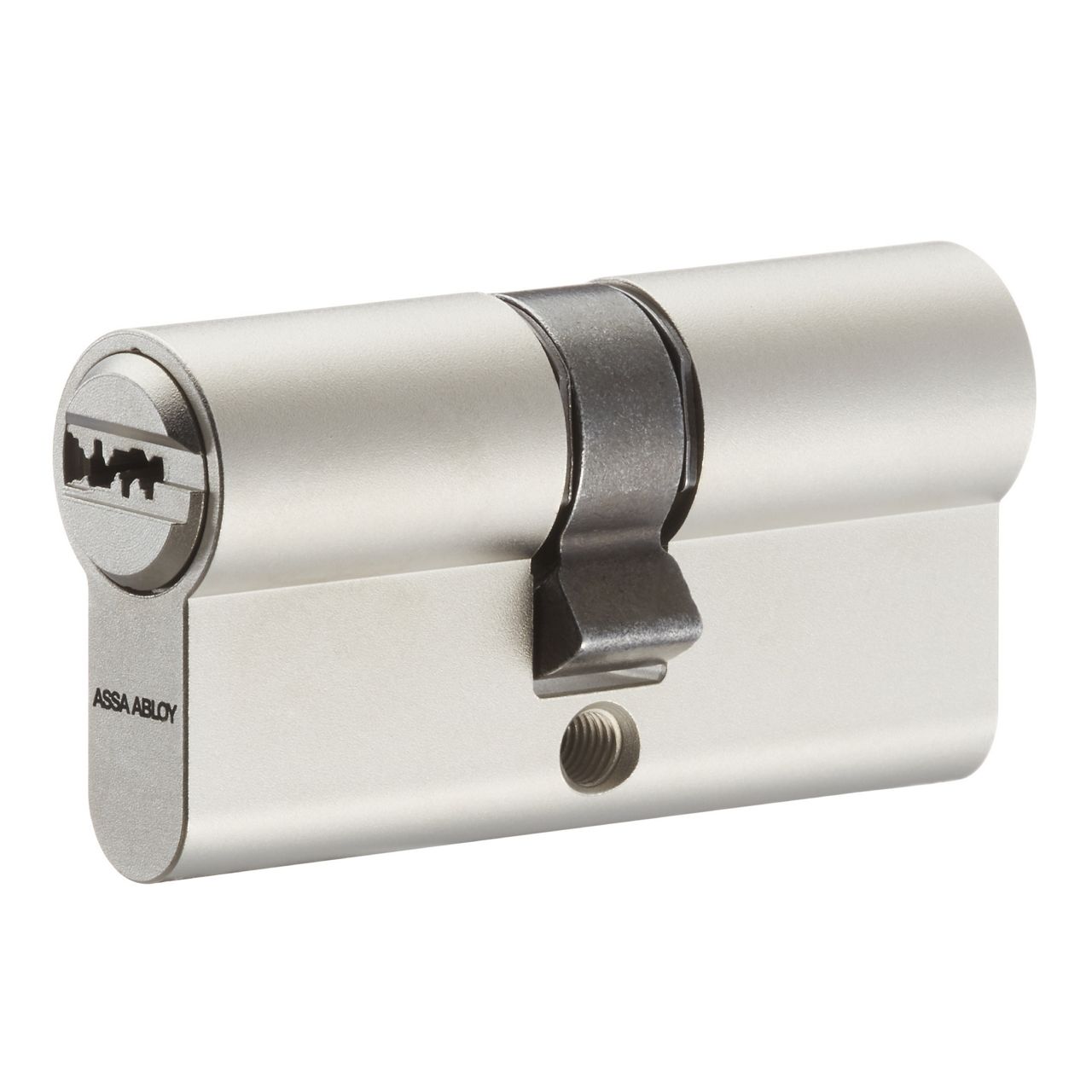

CY110 Euro Double Cylinder

Durable and secure, the CY110 double cylinder offers reliable protection for both internal and external doors, making it ideal for residential and commercial security applications.

Application:

External and internal doors
Available as master key system (MKS), Keyed alike (KA) and keyed to differ (KD)

Finishes:

Antique Brass

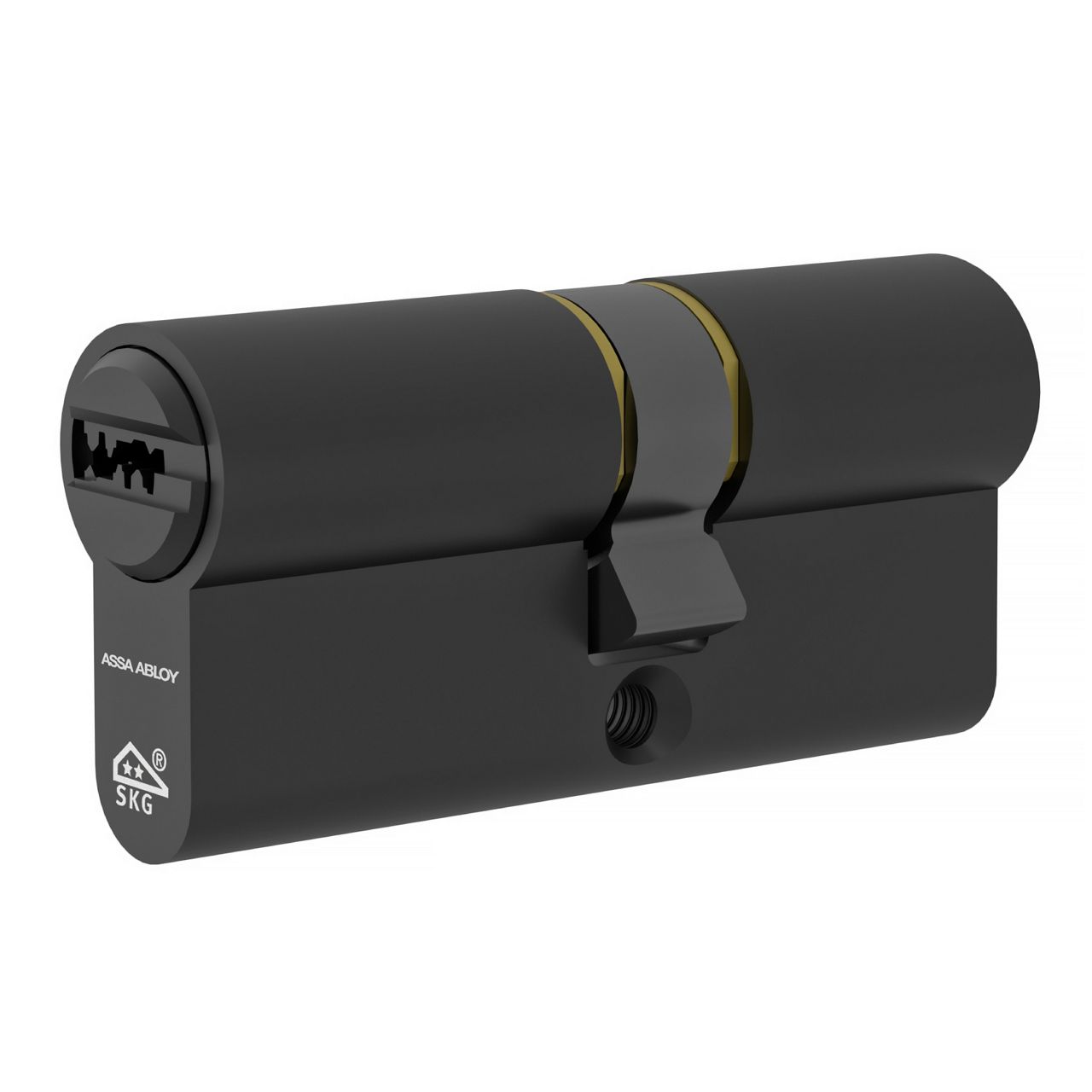

Black Chrome
Nickel-Silver
Polish Brass
Polish chrome

Specifications:

Lengths starting at 30|30 available in 5mm increments up to 80|80
Optional emergency cam available
Optional free-rotating cam available


Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.

Name	Value
Security	EN 1303:2015 certified, 1 6 0 B 0 C 5 0/D* (grade D optional), SKG** certified, DIN 18252 compliant
Attack resistance	Anti-pick, Anti-bump (only for KA and KD), Anti-drill: 5 min. drilling resistance (optional), Anti-pull: 15 kN pulling resistance* (optional), *when used with security escutcheon
Keying	Dimple security design, Master key system (MKS) \| Keyed alike (KA) \| Keyed to differ (KD)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	92,232
Max number of MKS profiles	20
Number of pins	6 (optional side/top pins)
Raw material	Brass
Finish	Satin nickel, Optional: Polished brass, Black chrome

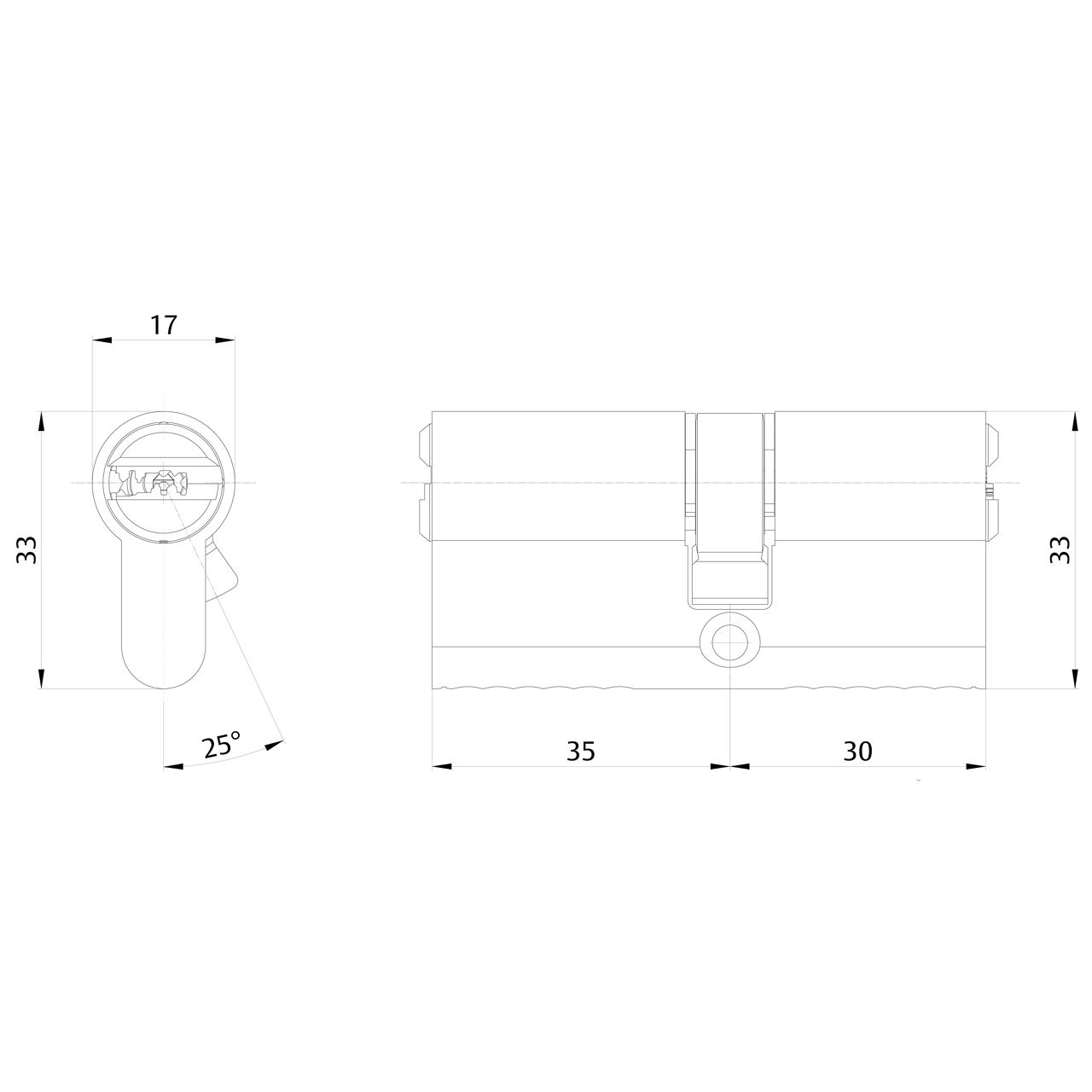

Cylinder length	Minimum: 30\|30 mm; 28\|30 mm, Maximum: 80\|80 mm; 28\|65 mm, Increments: 5 mm (starting from 30\|30 mm), Additional: 32.5\|32.5
Weight	235 g (length 30\|30 mm)
Optional functionality	Emergency clutch, Free wheeling cam, Gear wheel cam, FZG function
