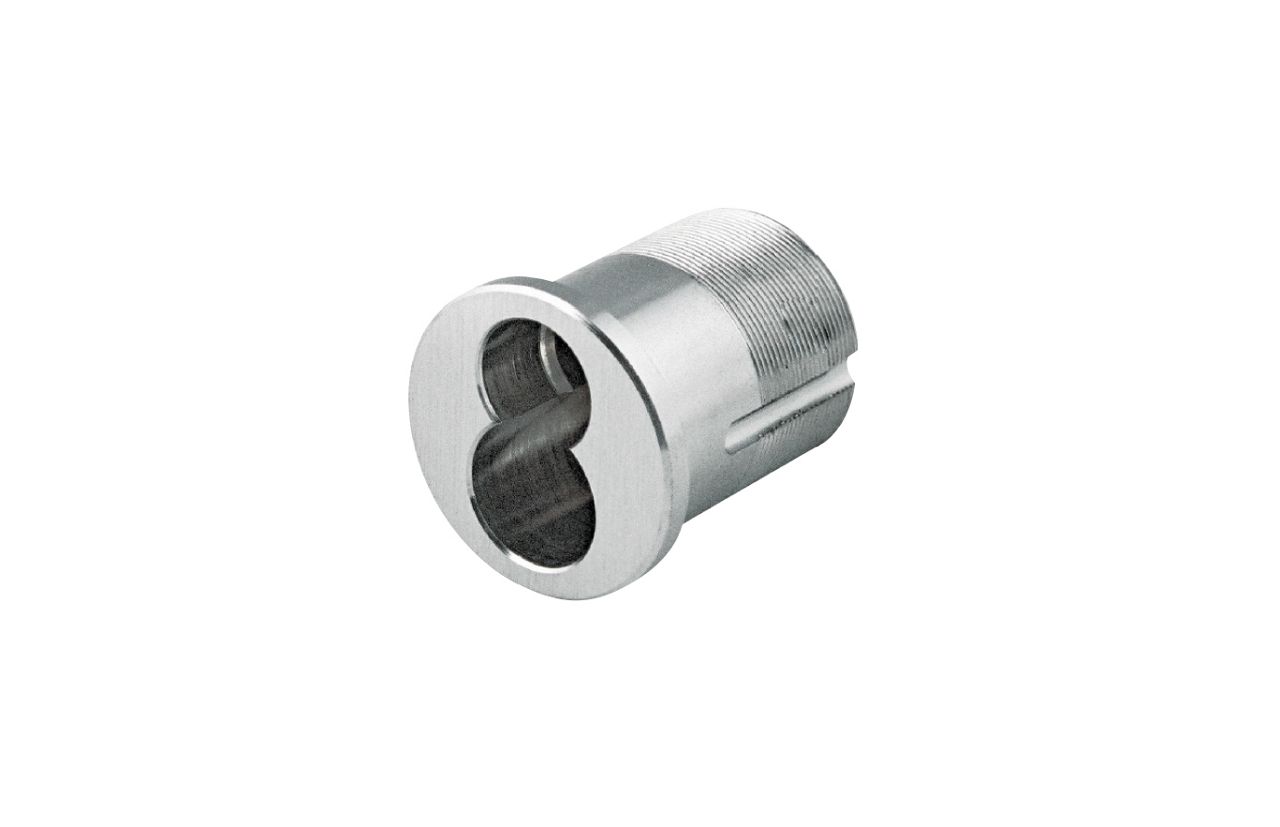

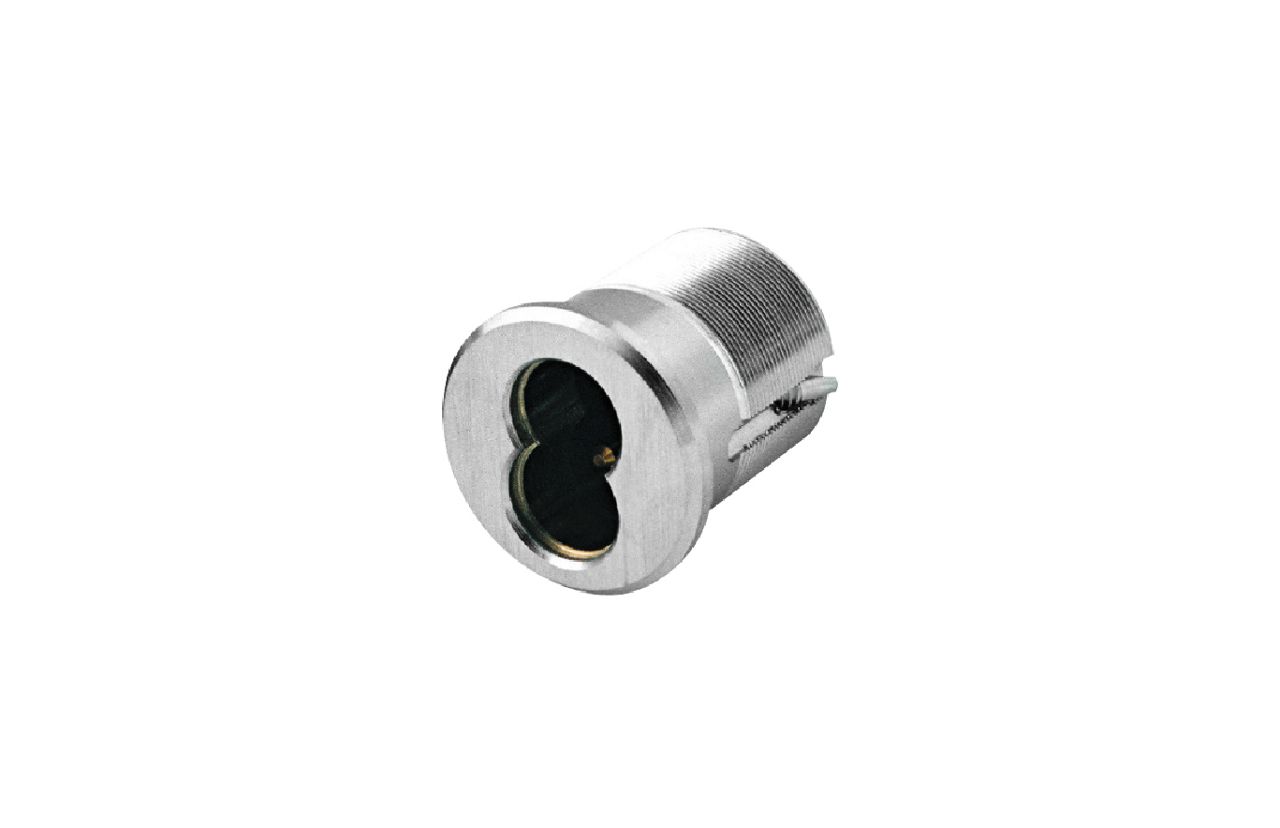

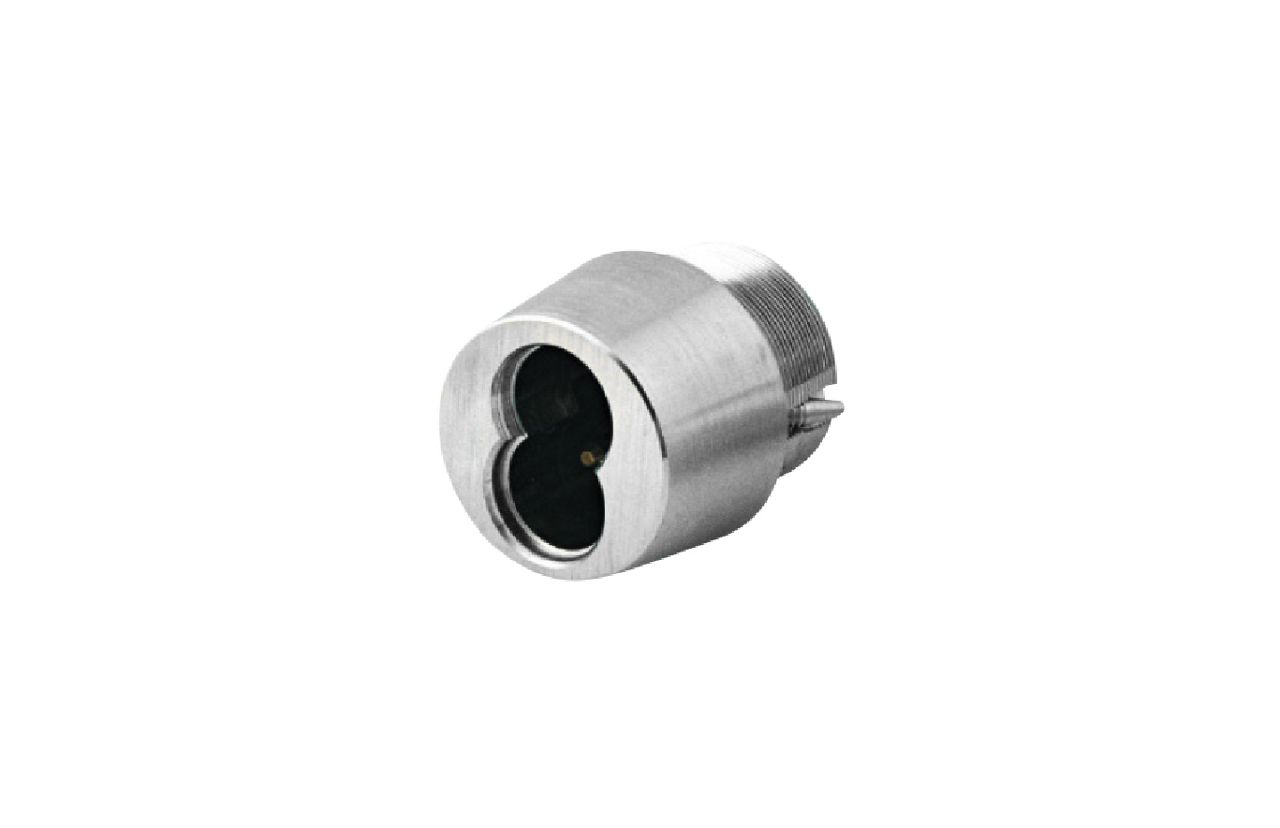

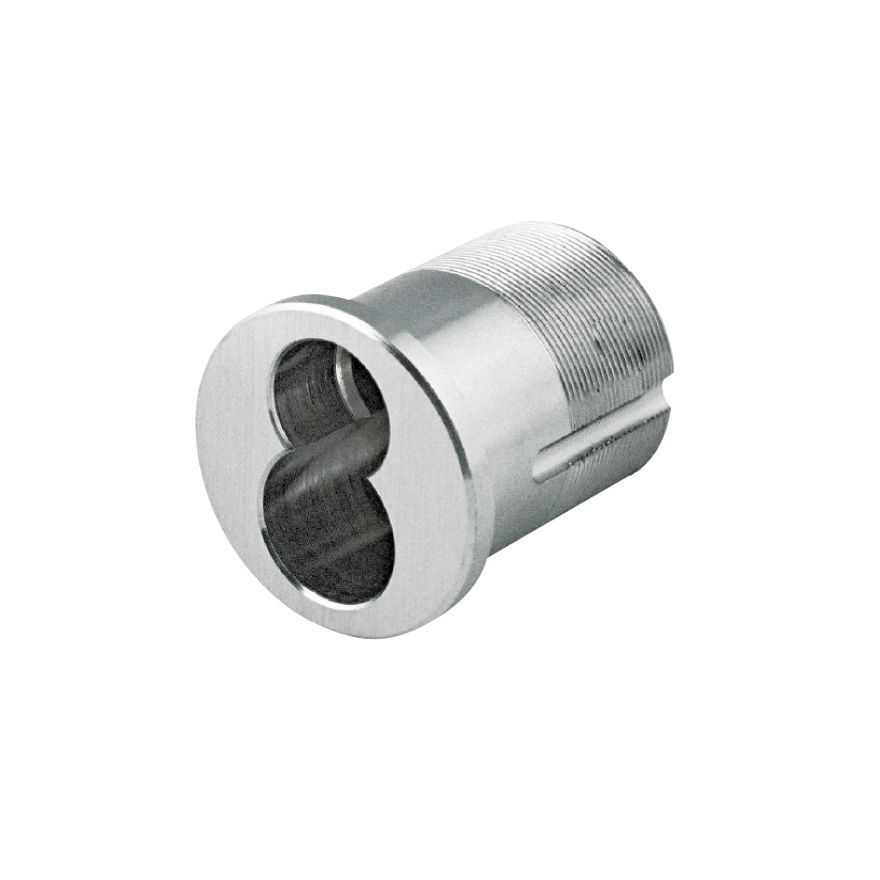

    CY30 Cylinders and Keying

    Description:

    CY30 offers a range of mortise SFIC housings in standard American format suitable for various types of IC Cores .The solid brass construction provides extra reliability and removable design allows changing of cams.

    Small Format Interchangeable Core Housing.


    1 of 4

    Areas of Application Mortise locks, exit devices, key switches and other hardware items that are operated by mortise cylinders.
    Material  Solid Brass
    Compatability Compatible with cores from Arrow, Best, Falcon and KSP. Accommodates 6 and 7pin cores (SFIC)
    Thread
    32 per inch.
    Standard Length 29 mm (1 -1/8”)
    Features  Tailpiece is grooved for easy field cutting
    Cams
    Please specify the model of the securing device in ordering information to supply suitable cam. Various options of cams available.
