  • Sargent 80 Series
  • Surface Vertical Rod Exit Devices

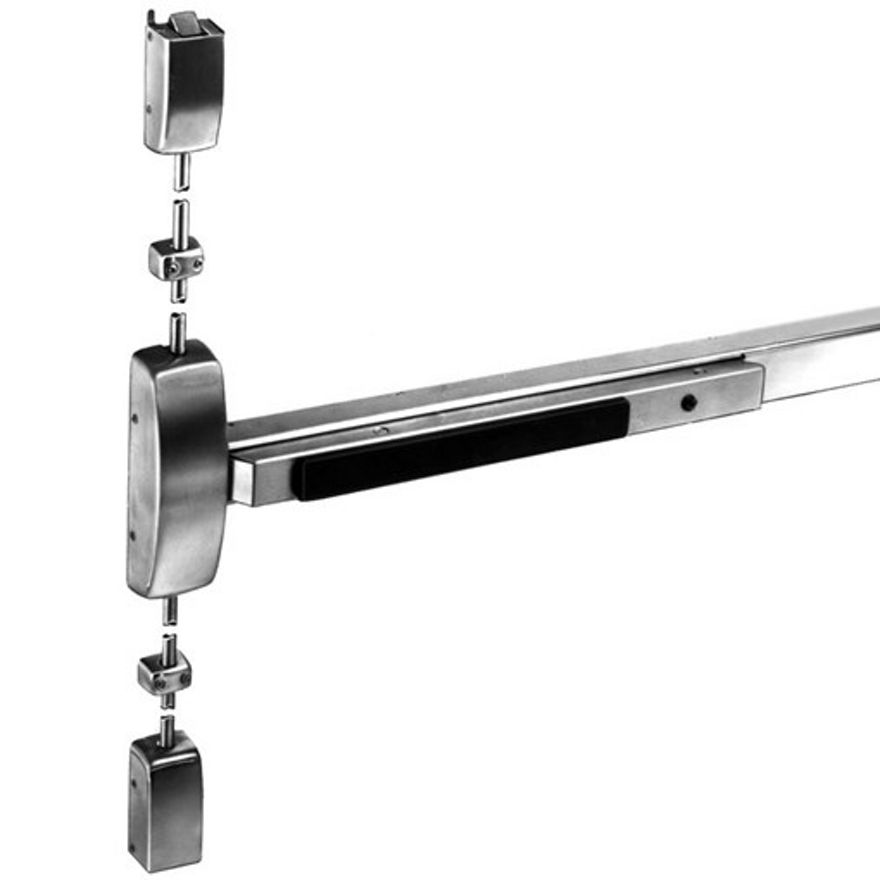

8700 Series

The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face.  It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Function   Description
06
  • Key Unlocks Trim
  • Trim Retracts Latch/Trim relocks when key is removed
  • #41 Cylinder Supplied
10
  • No Outside Operation (No Cylinder)
10
  • No Outside Operation (No Cylinder)
  • ET Control is used as Pull Only
13
  • Key Outside Unlocks/Locks Trim
  • #41 Cylinder Supplied
15
  • Passage Only (No Cylinder)
28
  • Passenger Only (No Cylinder)
40
  • Freewheeling Trim
  • No Outside Operation (No Cylinder) Dummy Trim
43
  • Freewheeling Trim
  • Key Outside Unlocks, Locks Trim
46
  • Freewheeling Trim
  • Key Unlocks Trim
  • Trim Retracts Latch/Relocks When Key Is Removed
62
  • Key Unlocks Trim
  • Trim Retracts Latch/Trim Relocks When Key Is Removed
63
  • Key Outside Unlocks/Locks Trim
70
  • Electrified Mortise Lock
  • Power Off, Unlocks Thumb Piece
  • Key Retracts Latch
73
  • Electrified ET Trim
  • Fail Safe
  • Power Off, Unlocks Lever (No Cylinder)
74
  • Electrified ET Trim
  • Fail Secure
  • Power Off, Locks Lever (No Cylinder)
