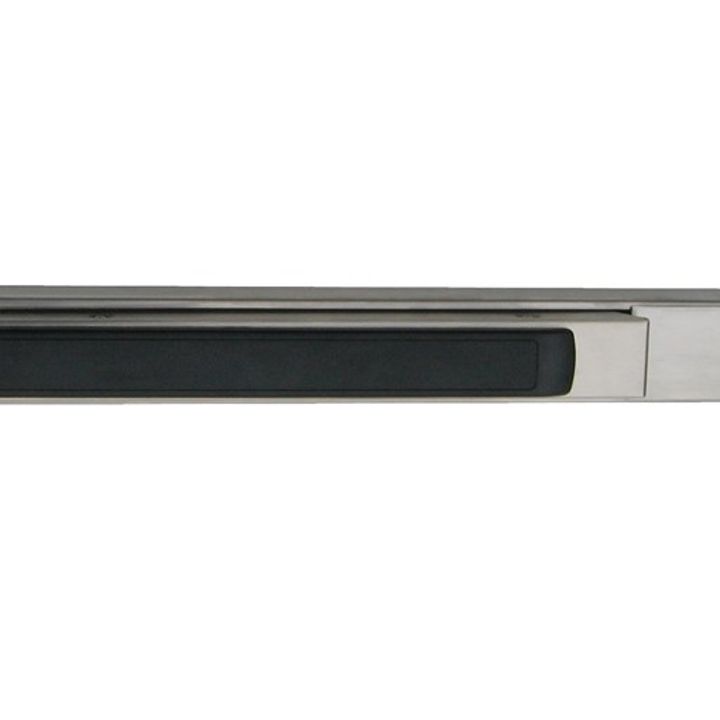

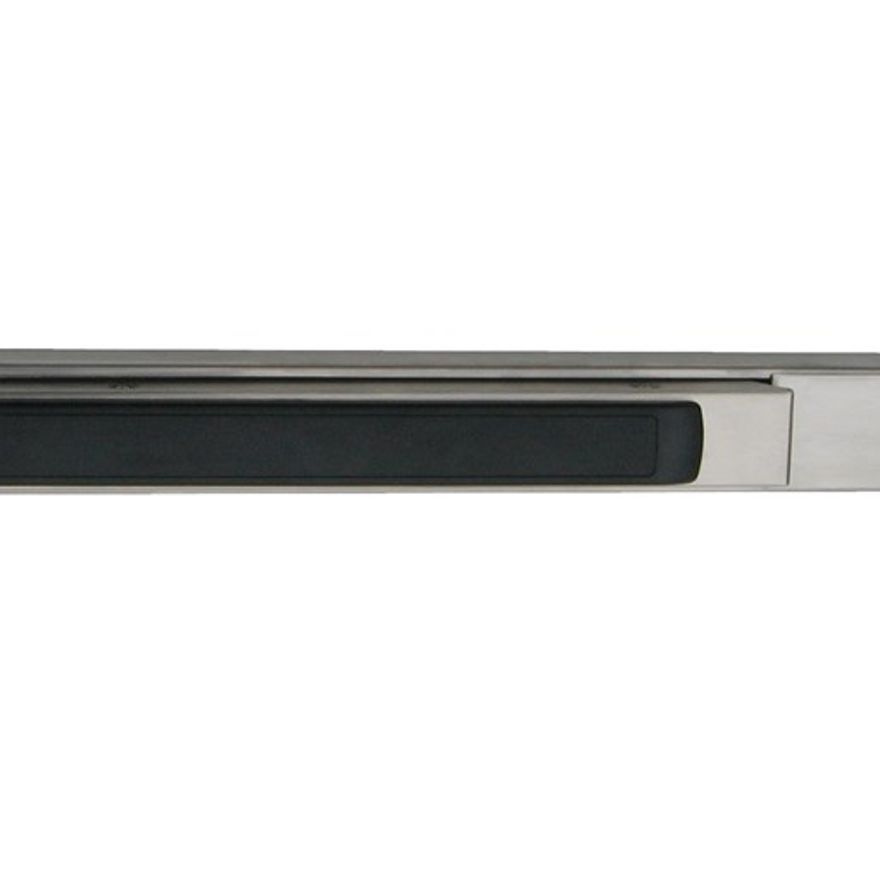

    8500 Series

    Designed for narrow stile applications, the 8500 Series features a rim bolt that combines quiet operation with solid security. Ideal for aluminum, metal and wood doors and/or single full-glass doors.

    Function   Description
    04
    • Night latch
    • Key retreacts latch
    • #34 cylinder supplied
    06
    • Key unlocks trim, trim retracts latch
    • Trim relocks when key is removed
    • #41 cylinder supplied
    10
    • No outside operation
    • No cylinder
    10
    • No outside operation
    • No cylinder
    • ET Control is used as pull only
    13
    • Key outside unlocks/locks trim
    • #41 cylinder supplied
    15
    • Passage only
    • No cylinder
    40
    • Freewheeling trim
    • No outside operation
    • No cylinder dummy trim
    43
    • Freewheeling trim
    • Key outside unlocks/locks trim
    • #41 cylinder supplied
    44
    • Freewheeling trim
    • Key retracts latch
    • #34 cylinder supplied
    46
    • Freewheeling trim
    • Key unlocks trim, trim retracts latch
    • Trim relocks when key is removed
    • #41 cylinder supplied
    73
    • Electrified ET Trim - Fail Safe
    • Power off, Unlocks lever
    • No cylinder
    74
    • Electrified ET Trim - Fail secure
    • Power off, Locks lever
    • No Cylinder
